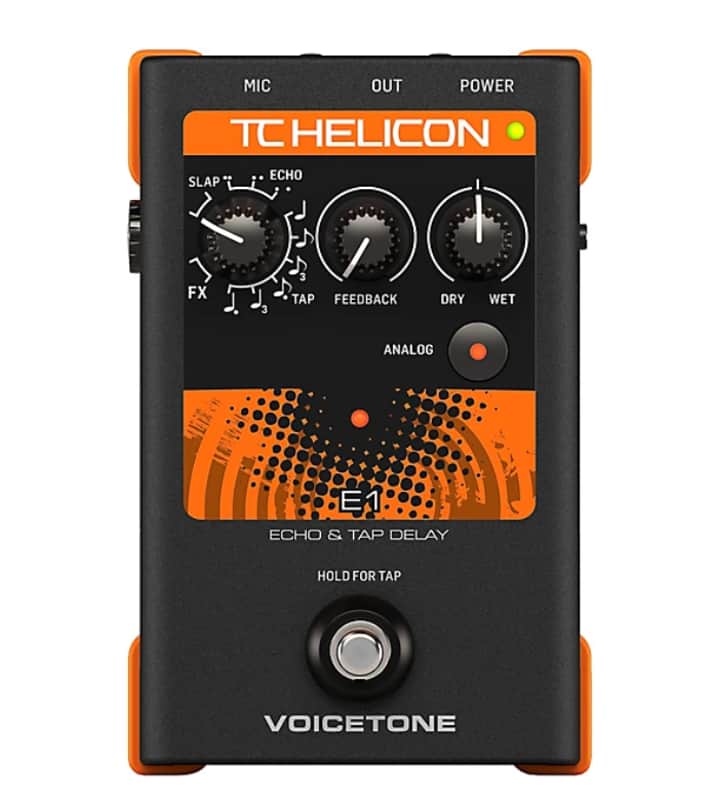

TC Helicon VoiceTone Single E1 Echo & Tap Delay Effects Pedal

The TC Helicon VoiceTone E1 puts immersive, studio-quality echo and delay effects right at your feet. This compact stompbox packs 12 types of delay, from classic slapback to rhythmic echoes timed to your song's tempo. Whether you want to excite your vocals with hypnotic echoes or deliver clear, dry banter between songs, the VoiceTone E1 vocal effects pedal delivers.

Shape Classic Echoes and Delays With Ease

Dial in the perfect vocal echo for your song with the VoiceTone E1's versatile effects. Select from two flavors of slapback, ideal for rockabilly and country. Set rhythmic delays to the tempo with tap, dotted and triplet timings. Or bathe your voice in ambient washes with the E1's lush echo algorithms. The E1 makes it simple to sculpt feedback and delay mix to suit your needs. Additionally, for responsive tone shaping, engage the smart filter control to subtly limit EQ bands.

Ultraclean Mic Preamp

The E1 boasts a transparent mic preamp that preserves all the nuance and detail of your vocal. Its wide frequency response and low noise floor ensure excellent reproduction. The preamp's high headroom means you can use dynamic, ribbon and condenser mics without overload distortion. Plus, with 24-bit A/D conversion, the E1 captures your voice's natural character. So, you'll always come through the PA or monitors with exceptional clarity.

Take Hands-Free Control

The VoiceTone E1's groundbreaking Mic Control lets you turn effects on and off using the thumb switch on compatible TC Helicon mics. Now, you can kick in lush echoes for a chorus or strip back to dry vocals to chat with the audience—without taking your hands off the mic. When using multiple VoiceTone pedals, independently control each one from the mic. Or, turn all your effects on or off at once. Mic Control ushers in a new era of hands-free flexibility on stage.

Features

• Adds a wide range of echo effects for more depth in your vocals
• Footswitch tapping can set echo times to song tempo
• High-quality signal path and tough enclosure
• Can be chained to additional VoiceTone Singles
• Mic-Control offers remote on/off via TC Helicon MP-75 microphone

SpecsSize

• Height: 5.4" (140 mm)
• Width: 3.5" (90 mm)
• Depth: 2.3" (60 mm)

Weight

• Weight: .92 lb. (0.42 kg)

Construction

• Two-part die-cast metal
• Rubberized base

ConnectionsAnalog Inputs

• Connectors, balanced: Mic.: XLR
• Mic Input Level @ 0 dBFS: -42dBu to +1dBu
• EIN @ Max Mic Gain Rg = 150 ohm: -126dBu
• Mic input SNR: >104dB

Analog Outputs

• Output Impedance, Bal./Unbal.: 200/100 ohm
• Output Full Scale: +1 dBu
• Dynamic Range: >104dB, 20Hz to 20kHz
• Frequency Response: +0/-0.3dB, 20Hz to 20kHz

Control

• USB for firmware and control
• Mic Control using TC Helicon MP-75

DetailsPower

• Power Supply (Supplied): 12V .4A
• Power Consumption: 5.6W

Safety

• EMC - Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class-B, CISPR 22, Class-B
• Safety - certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA

Operating Requirements

• Operating Temperature: 32º F to 122º F (0º C to 50º C)
• Storage Temperature: -22º F to 167º F (-30º C to 70º C)
• Humidity: Max. 90 % non-condensing

Included with VoiceTone E1

• Region specific power supply
• USB cable
• User guide
• 1-year warranty parts and labor
