Studer Vista 1 2020 - Silver

. Studer Vista Digital

Commercial Digital Mixing Engines

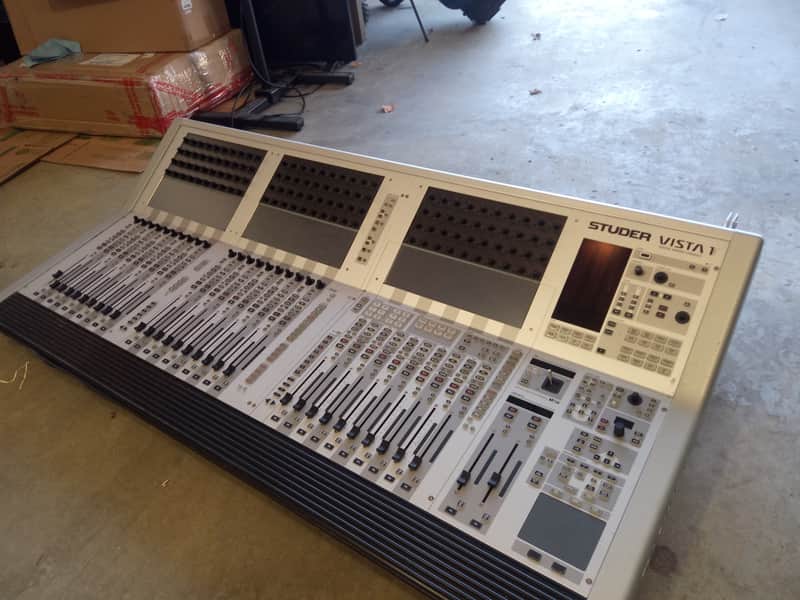

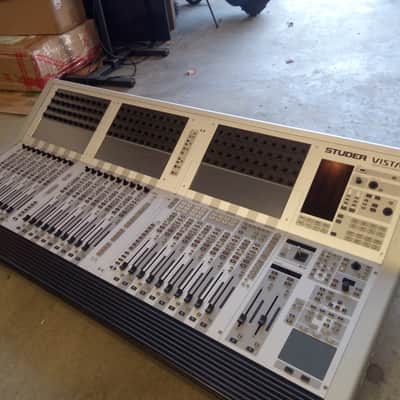

These units are in Very Good Condition being kept indoors … very deep cinematic sound… Priced to Sell! I have 2 of these Studer Vista 1 Live and Production Console off the broadcast lot! Studer is very well respected and legendary name in audio for generations this is a,oust their latest Digital offerings 32 preamps and 32 XLR outs 8 AES 64 Madi USB MIDI IO can connect mouse s keyboard and screen etc … suited for modern production!

This unit has a dent on the top rail, and a fan that squeals and then stops may or may not need to be fixed, there is also some bent metal on the stand edge.

…

The new Studier Vista 1 is a transportable digital mixing console for broadcast, live and production use. For the first time with a Vista, all you need is contained within the console, the control surface, I/O system, DSP and power supplies are all in one box. This makes it the ideal choice when space is restricted, such as in OB and ENG vans, small studios, or for applications where the console needs to be moved with ease.

Thanks to the patented Vistonics™ user interface with 40 on-screen rotary knobs, its look and feel is identical to that of its larger and more sophisticated sisters. Anyone who is already used to the intuitive Vista surface will immediately be familiar with the Vista 1. Anyone new to Vista will be amazed at how simple it is to learn.




• 22 motorized faders - These ones have 32 Faders
• 32 high-quality mic/line inputs with phantom power and lowcut filter
• 32 analogue line outputs
• 96 DSP channels, including 5.1 surround channels
• 8 stereo AES/EBU inputs and outputs
• MADI 64 channel input outputs on SC optical connectors
• Main and Redundant power supplys
• Studer FaderGlow supplements the Vistronics user interface by illuminating faders in different colours according to their function
• True broadcast monitoring, talkback, red light control and eight general purpose I/0
• Input level and gain reduction LED bargraph meter in every fader strip
• 6 high resolution VFD master level meters
• Full mix-minus (m-n) system for live two way operations
• Vista data format compatibility for easy transfer of console snapshots between different Vista consoles
• Integrated jingle player for immediate playback of eight different station identifier clips, background FX or other audio files from a jingle stick/USB
• Online/offline editor
• Snapshot automation
• Support for the new Studer Vista Compact Remote Bay over Ethernet or even WLAN
• Studer’s relink input/output sharing system with other Studer Vista and OnAir consoles
• Desk operator headphone
• USB jingle player socket
• Harman HiQnet support
• Ember and Pro-Bel protocol support for use with broadcast/newsroom automation systems
• Slots two off for D21m I/O cards to control compact stage box for additional channels. Each stagebox has 32 mic/line inputs and 16 outputs and other 3rd party peripherals
• Separate 25w GPI & GPO ports
