Neumann KH 810 II AES67 10-Inch Powered Subwoofer With DSP and AoIP Interface

Bass is not just something you hear. It is something you rely on to make critical decisions. The Neumann KH 810 II AES67 is a reference-grade 10-inch powered subwoofer designed for modern studios that demand deep extension, absolute accuracy, and network-ready flexibility. Built around a newly developed long-throw woofer with ELFF (Extremely Linear Force Factor) technology, the KH 810 II AES67 delivers clean, controlled low-frequency response down to 16 Hz, offering roughly twice the output capability of the KH 750 DSP.

With DSP-managed bass management, MA 1 alignment compatibility, and redundant AES67 audio over IP networking, this subwoofer is engineered for stereo, surround, and immersive monitoring systems up to 7.1.4. It functions not only as a subwoofer, but also as a central routing and bass management hub for complex studio installations in music, post-production, and broadcast environments.

DSP-Controlled Bass Management for Immersive Systems

Low-frequency accuracy begins with intelligent signal control. The KH 810 II AES67 features an integrated DSP-based bass manager that handles crossover alignment, delay, phase, and output calibration for multichannel monitoring systems up to 7.1.4.

When used with MA 1 Automatic Monitor Alignment software, the subwoofer can automatically calibrate both analog and DSP-equipped Neumann monitors, optimizing frequency response and phase coherence across the entire system. This ensures tight, controlled bass integration and reliable translation for immersive music, film mixing, and Dolby Atmos workflows.

Long-Throw ELFF Driver for Clean, Powerful Low End

At the heart of the KH 810 II AES67 is a custom 10-inch long-throw woofer designed with Extremely Linear Force Factor technology. ELFF maintains consistent motor force throughout cone movement, dramatically reducing harmonic distortion even at high sound pressure levels.

The optimized basket design and damping of breakup modes keep bass tight and articulate, while the bass reflex enclosure minimizes port noise and group delay. The result is deep, authoritative low end that remains accurate and musical, even during demanding sessions.

Advanced Connectivity With AES67 and Multichannel Routing

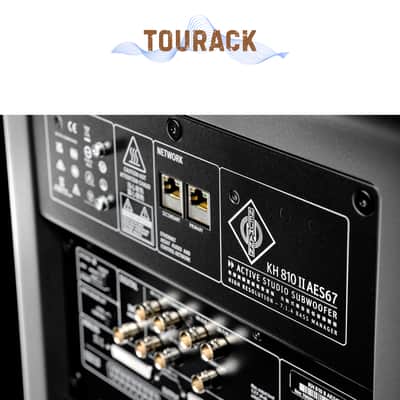

Modern studios require flexible and future-proof connectivity. The KH 810 II AES67 is equipped with dual redundant AES67 network ports, compliant with ST 2110, ST 2022-7, RAVENNA, and Dante-generated AES67 streams. The subwoofer can distribute up to 12 network audio channels and route signals to 11 connected monitors.

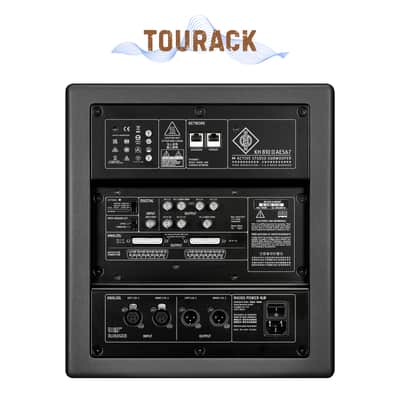

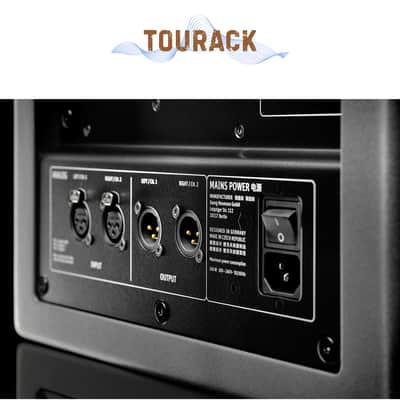

For analog and digital integration, the unit provides electronically balanced XLR inputs and outputs for stereo operation, Sub D25 connectors for multichannel analog routing, and seven AES3 digital outputs via BNC supporting 192 kHz and 24-bit resolution. This makes the KH 810 II AES67 a powerful hub for complex studio monitoring systems.

Intuitive Setup and Reliable Operation

Efficient setup is essential in professional environments. A rear-panel mode switch allows engineers to choose between local manual calibration or network-based alignment via MA 1 software. Ground lift, high common-mode rejection, and symmetrical signal paths reduce noise in installations with long cable runs.

Built-in protection circuits include thermal limiting, soft clipping, and excursion control to safeguard the drivers during long sessions. An auto standby function conserves energy when idle and can be disabled when continuous operation is required.

Rigid Cabinet Design for Long-Term Accuracy

The KH 810 II AES67 is housed in an ultra-stiff wooden cabinet designed to suppress resonance and standing waves. Internal damping, a tuned bass reflex system, and integrated rubber feet provide mechanical isolation and maintain low-frequency clarity.

A robust metal grille protects the driver from impact in high-traffic studios, while the durable painted finish ensures the subwoofer withstands years of professional use without compromising performance.

Built for Engineers Who Depend on the Low End

For professionals working in music production, film scoring, post-production, and broadcast, confidence in the low end is essential. The Neumann KH 810 II AES67 delivers deep extension, precise DSP control, and advanced networking in a single, scalable solution. Whether expanding an existing Neumann system or building a fully networked immersive studio, this subwoofer provides the accuracy and flexibility required for critical listening and confident mix decisions.

Key Features

• Bass extension down to 16 Hz for immersive and full-range monitoring
• 10-inch long-throw woofer with ELFF technology for low distortion at high SPL
• DSP-controlled bass management for systems up to 7.1.4
• MA 1 Automatic Monitor Alignment compatibility for room correction
• Dual redundant AES67 audio over IP ports
• Routes up to 12 network channels and supports up to 11 monitors
• AES3 digital outputs via BNC at up to 192 kHz and 24-bit
• Balanced analog XLR and multichannel Sub D25 connectivity
• Rigid wooden cabinet with internal damping and vibration isolation

Specifications

Product Type: Powered subwoofer

Series: KH 810 II AES67

Application: Studio monitoring

Use Case: Stereo, surround, immersive up to 7.1.4

Speaker Configuration

• Low Frequency Driver: 10-inch long-throw woofer with Extremely Linear Force Factor

Audio Performance

• Frequency Response: Down to 16 Hz
• Bass Management: Multichannel up to 7.1.4

DSP and Control

• DSP Presets: Multichannel bass management
• Phase Control: 8-position
• Low Cut Control: Continuous
• Crossover: 4th order, bypassable
• Input Gain and Output Level Controls

Connectivity

• Analog Inputs: 2 x XLR electronically balanced
• Analog Outputs: 2 x XLR electronically balanced
• Multichannel Inputs: 2 x Sub D25 up to 12 channels
• Multichannel Outputs: 2 x Sub D25 up to 11 channels
• Digital Outputs: 7 x AES3 via BNC connectors
• Networking: 2 x AES67 ports with redundancy
• Daisy Chain Support: Yes

Power and Protection

• Universal switched-mode power supply 100 to 240 V
• Standby Function: Yes, configurable via MA 1
• Protection: Thermal limiter, soft clip, excursion limiters
• Ground Lift: Yes

Construction

• Cabinet Material: Wood
• Finish: Painted
• Grille: Meta
• Feet: Rubber
• Internal Design: Self-damping enclosure
