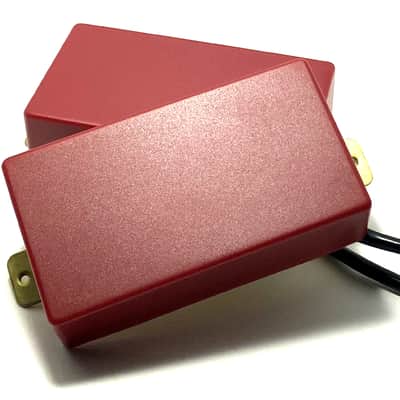

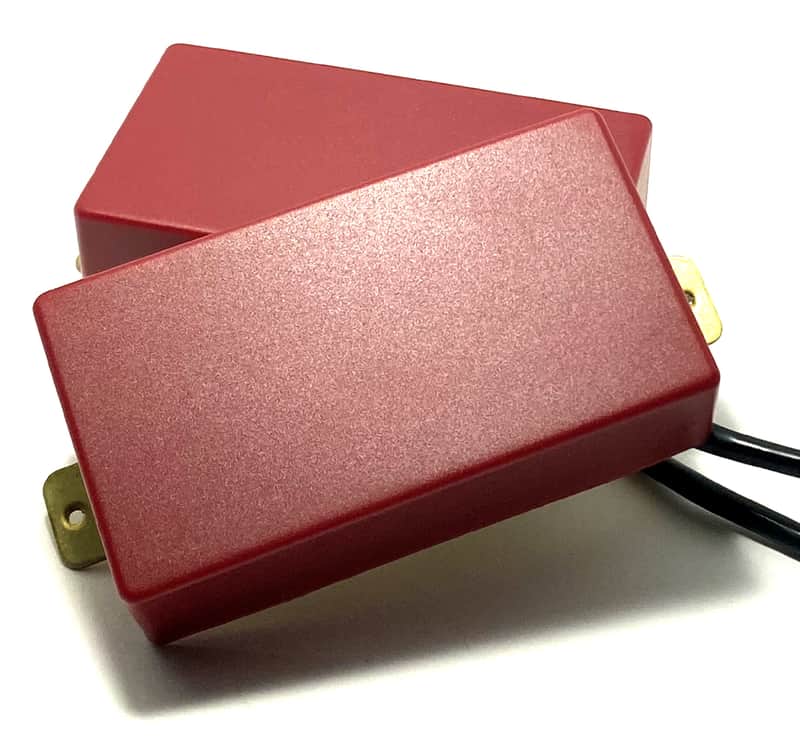

Dragonfire Volt Buckers HH Set, Passive Ceramic Humbucker Bridge + Neck Pickups ~ Solid Cover Red

Dragonfire Volt Bucker HH Pickup Set ~ Solid Cover Styling Passive Ceramic Humbucker Pickups ~ 1 Bridge + 1 Neck ~ Red Solid Standard No-Hole Non-Metal Style Covers

Dragonfire Volt Buckers present a unique covered appearance in a straightforward package. These humbuckers provide crisp, clean tone and are great for a wide variety of styles with hot wound output and modern ceramic magnet performance.

Volt Buckers are standard covered humbucker size requiring a square-corner pickup rout style. Check your measurements prior to purchase and contact us if you have any questions.

This HH set is collaborative and the pickups work together for the best possible performance. These humbuckers are 4-wire so you can coil-split for even more versatility. In single coil mode, this humbucker functions well and performs with smooth clarity.

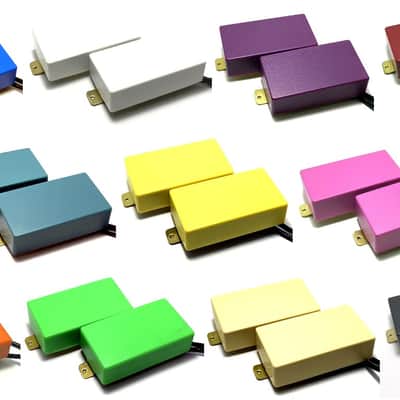

Check our Reverb Store if you want a set of three for an HHH set or if you only need one pickup. We have these available in a triple-hum set as well as individually with just one bridge or neck humbucker. We also offer this same pickup style in other colors including black, blue, cream, green, orange, pink, purple, red, teal, white and yellow so you can personalize your set-up. Please see our Reverb Store and contact us if you have any questions or would like more information.

~~Product Highlights~~

*6 String Passive Ceramic Humbucker Pickup Style

*Standard Sized Solid Cover Humbucker

*No-Hole Aesthetic; No Exposed Poles

*Hot Wound, Clean Tone

*4 Conductor Wiring (4 wire pickup)

*Coil Split Capable & Phase Reversible

*Wax Potted for Squeal Reduction

*Standard Insulated Lead Wire (modern stranded style)

*Pickup Mounting Screws (chrome) & Springs Included (alternate screw colors available - contact us for info)

*500K Pots & 0.047 Tone Caps Recommended (available separately)

~~Approximate Measurements~~

*Approximate Bridge Output: Wound to ~16.5K

*Approximate Neck Output: Wound to ~8.3K

*Pickup Length: 70mm (84mm including mounting flanges)

*Pickup Width: 39mm

*Pickup Depth: 19mm (23mm including mounting flanges)

*Mounting Screw Spacing: 78mm

~~Installation Information~~

The included pickup wire color codes will let you know the hot, ground, and coil split wire colors for these 4-wire pickups. Basic instructions for a sample standard installation may be included. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic information we provide to match up with any diagram or instructions you choose to use.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~

Please ask any questions prior to purchase. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take care for installation; rough or careless handling may damage the pickup.
