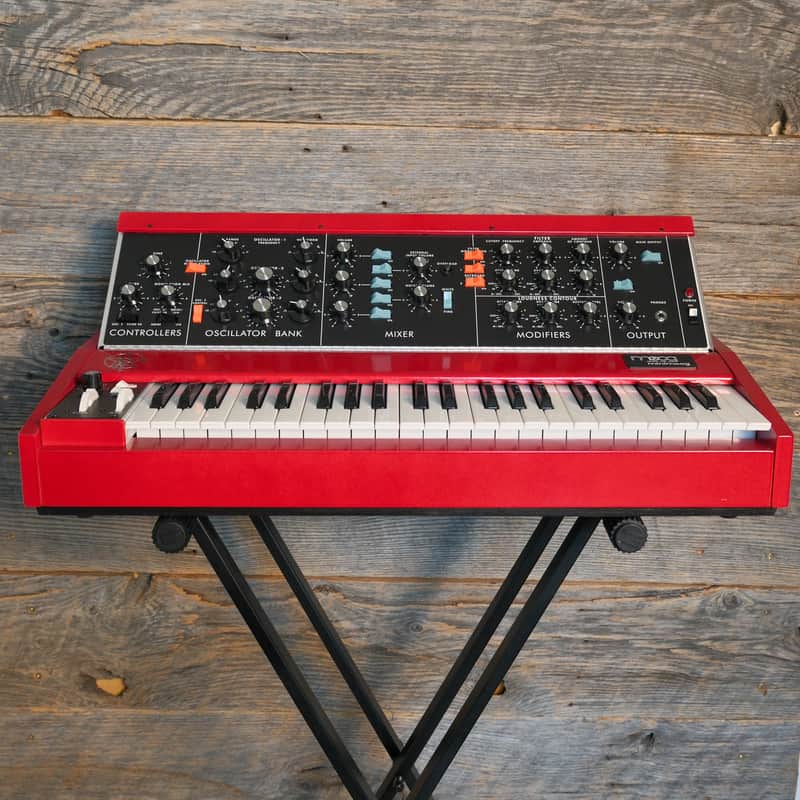

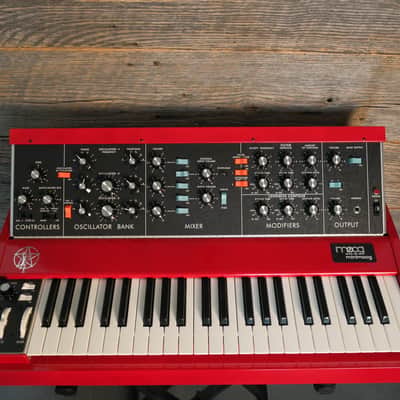

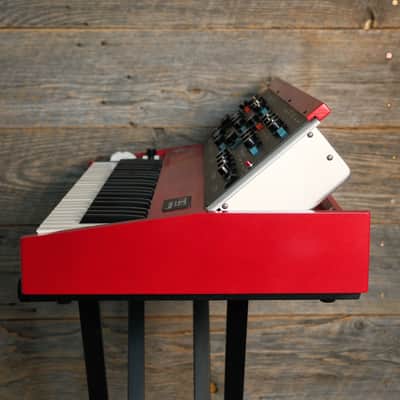

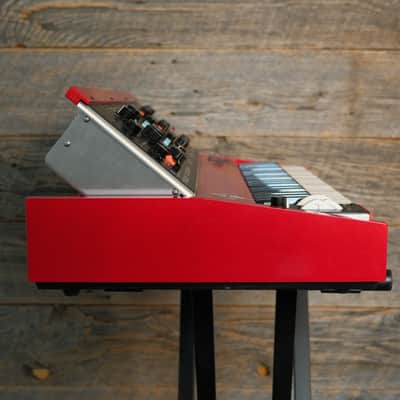

Used Moog Geddy Lee Minimoog Model D 44-Key Monophonic Synthesizer

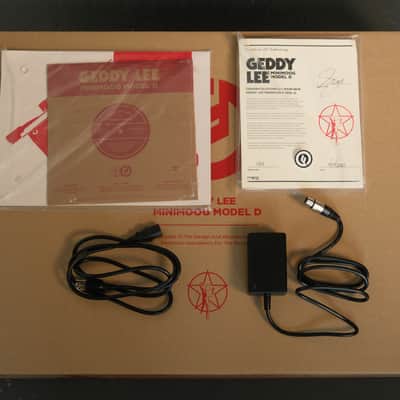

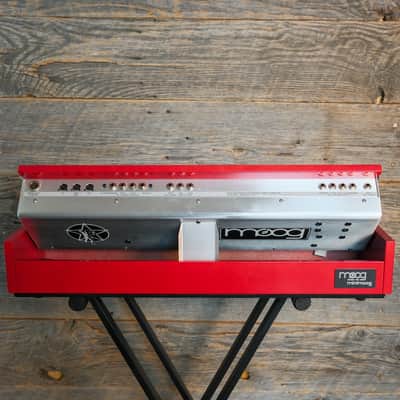

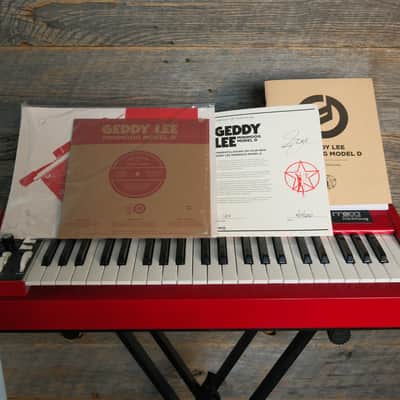

This Geddy Lee Model D Synthesizer is in fantastic shape and is perfect for any Rush fan looking for that iconic sound. Not only does this come in a stunning red enclosure but it also includes a modified VCA circuit, dedicated LFO controls, top panel CV jacks as well as a spring loaded pitch wheel and MIDI integration. This synth is in like new condition and ships in the original box with all of the included accessories.

Features

• Number of Keys : 44
• Keyboard Range : F0 to C4
• Keyboard Action : Synthesizer (Spring)
• Note Priority (Low, High, Last) : User Selectable
• Sound Sources : 3x Oscillators, Noise Generator and External Audio Input
• Oscillator Frequency Range : 0.1 to 20 kHz (In Six Overlapping Ranges)
• Oscillator Stability : (short term) > 0.25 %
• Oscillator Waveforms : Triangle, Triangle-Sawtooth (Oscillator–1, Oscillator–2), Reverse Sawtooth (Oscillator–3), Sawtooth, Rectangle, Wide Pulse and Narrow Pulse.
• Noise Generator : White and Pink
• LFO Rate : 0.05Hz to 200 Hz
• LFO Waveform : Triangle (knob down); Square (knob up)
• External Modulation Input Range : +10 millivolts to +2 volts
• External Modulation Input Impedance : 1MEG Ohms
• Filter Type : Voltage Controlled Low Pass (Ladder Filter)
• Filter Frequency Range : 10 Hz to 20 kHz
• Filter Slope : 24 dB per Octave
• Filter Keyboard Tracking : ⅓, ⅔, 1:1
• Contour Attack Time : 1 millisecond to 10 seconds
• Contour Decay Time : 4 milliseconds to >35 seconds
• Contour Sustain Level : 0 to 100% of Contour peak
• Filter Contour Width : 0 to 4 Octaves
• Voltage Controlled Amplifier : Loudness Contour Dynamic Range 80 dB
• External Audio Input Voltage : +10 millivolts (min); +10 volt (max.)
• External Audio Input Nominal Impedance : 1000K Ohms
• Pitch Bend Range : (+/-) Perfect 5th

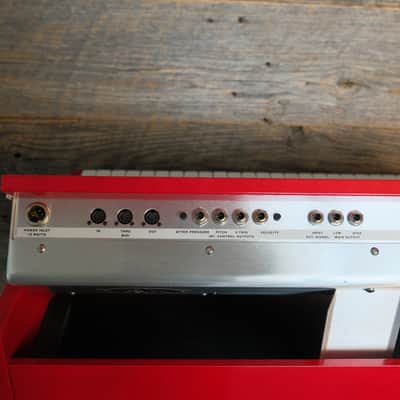

• After Pressure CV Output (¼”TS) : 0 to +5 volts with user adjustable trimpot
• Pitch CV Output (¼”TS) : -3 volts to +7 volts (C=0 volts)
• Gate Output (¼”TS) : 0 to +5 volts
• Velocity Output (¼”TS) : Selectable 0 to +5 volts or 0 to +10 volts with user adjustable trimpot.
• Loudness Input (¼”TRS) : 0 to +5 volts; +5 volts = Unity Gain (Works with Moog EP-3 Expression Pedal)
• Filter Cutoff Input (¼”TRS) : 1 volt per octave of change (Works with Moog EP-3 Expression Pedal)
• Oscillator Pitch Input (¼”TRS) : 1 volt per octave of change (Works with Moog EP-3 Expression Pedal)
• Modulation Source Input (¼”TRS) : Ring=Noise Send; Tip=Modulation Receive (This jack makes a normalled connection with no cable present.)
• Trigger Input (¼:TS) : +5 volt V-Trigger Activates both Contour Generators
• MIDI Input (5-Pin DIN) : Note On, Note #, Pitch Wheel, Mod Wheel
• MIDI Output (5-Pin DIN) : Note On, Note #, Pitch Wheel, Mod Wheel, Velocity, Aftertouch
• MIDI Thru (5-Pin DIN) : Mirror of the MIDI In signal
• External Power Supply : Self-switching; 100–240 volts; 50/60 Hz; <12 Watt nominal consumption. (Locking XLR-4 connector.)
