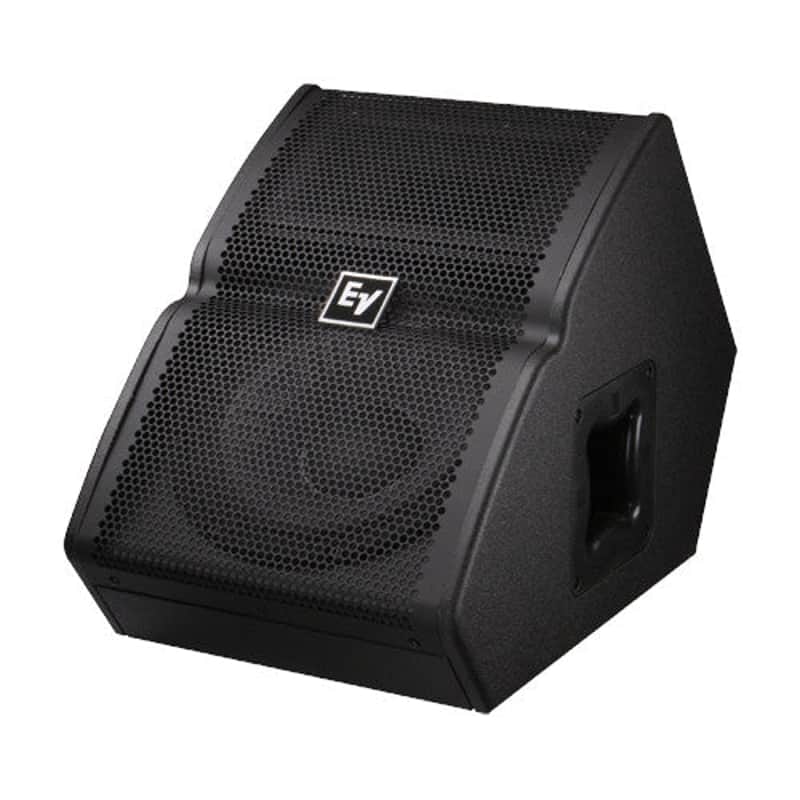

Electro-Voice TX1122FM Passive Floor Monitor Loudspeaker

Product Overview

High-output design that's perfect for small to medium stages.

The TX1122FM is a 12”, two-way passive floor monitor that’s ideal for small to medium stages. Its two-way, high-output design and vented low-frequency enclosure delivers full-range sound from a 12”, low-distortion SMX2121 woofer and 1-1/4” DH3/2010A titanium high-frequency compression driver. Signal Synchronized Transducers feature provides proper woofer/tweeter alignment, while the constant-directivity 90°H x 50°V horn ensures constant coverage onstage. Additional features include Neutrik Speakon paralleled pass-through connectors, integrated 24dB/octave crossover with HF protection, 99dB sensitivity, 132dB max SPL rating, and 500/2000W continuous/peak power handling.

Features

• 2-way, high-output design
• Vented LF enclosure
• Ideal for small to medium stages
• SMX2121 woofer and 1-1/4" DH3/2010A titanium HF driver
• Constant-directivity 90°H x 50°V horn

Specifications

• Frequency Response (-3 dB): 70 - 20000 Hz
• Frequency Response (-10 dB): 55 - 20000 Hz
• Recommended High-Pass Frequency: 60 Hz
• Sensitivity @ 1W/1m: 99 dB
• Max SPL/1m (calculated): 132 dB
• Coverage (nominal -6 dB) H°: 90°
• Coverage (nominal -6 dB) V°: 50°
• Rotatable Horn: No
• System Power Handling (continuous/program/peak): 500/1000/2000W
• LF Transducer: SMX2121
• HF Transducer: DH3
• Crossover Frequency: 1600 Hz
• Nominal Impedance (Passive): 8 Ohms
• Minimum Impedance: 6.4 Ohms
• Enclosure Material: Plywood and MDF with EVCOAT
• Suspension: (6) 3/8" threaded inserts
• Color: Black
• Flying: Yes
• Input Connections: Parallel Neutrik® NL4
• Internal Crossover: Yes
• Speaker Type: Full Range
• Net Weight: 43.65 lbs
• Dimensions (H x W x D): 17.32" x 14.33" x 22.56"
