🎶✨ Yamaha CR-700 Vintage Receiver w/ Original Wood Case — Recap, Tuner Tested, LED Dial, Serviced/Cleaned (120V)

🎥 YouTube Demo

A YouTube demo video is included (link in listing). Please review all photos and the video, and feel free to ask any questions before purchasing.

Overview

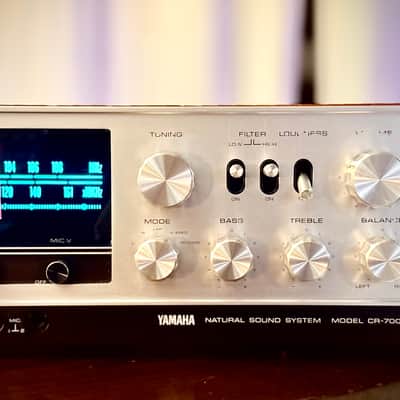

Yamaha CR-700 Natural Sound Stereo Receiver w/ Original Wood Case — Recap, Bench Tested, LED Dial, Fully Tested/Working (120V).
The Yamaha CR-700 (and CR-500) is a rare stablemate of the more familiar Yamaha “00” series receivers, with a distinct styling and internal layout while keeping the classic Yamaha Natural Sound character. This is a North America–compatible 120V example with standard RCA connectors and spring-clip speaker outputs—not a 100V Japan-market unit.

This receiver has been professionally serviced with recap, thorough cleaning/lubrication of switches and pots, a tape loop channel repair, and LED dial lighting. Final functional testing was completed and passed. Bench measurements are included below for buyer confidence.

Condition

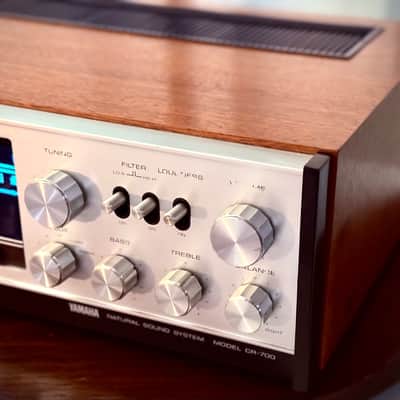

• Overall presentation is very good with clean layout and strong classic Yamaha styling
• Honest cosmetic notes (please see photos):

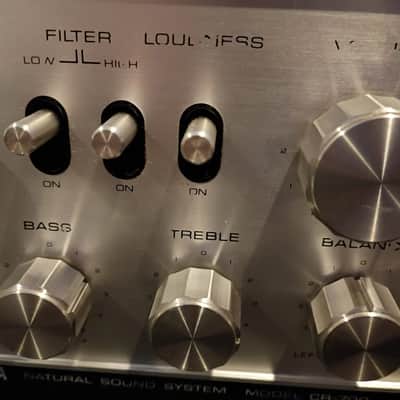

• • Significant loss of faceplate lettering in the upper-right corner (silkscreen wear)
  • Scratch on the volume knob

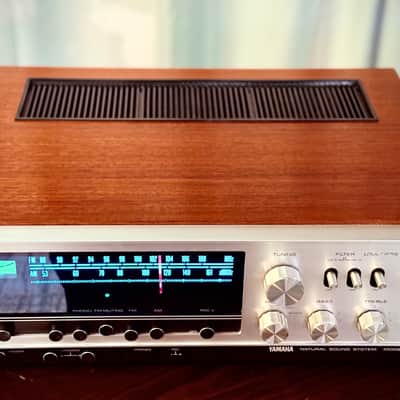

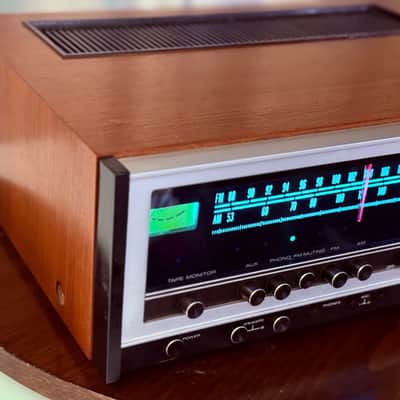

• Original wood case is cleaned/polished and presents well

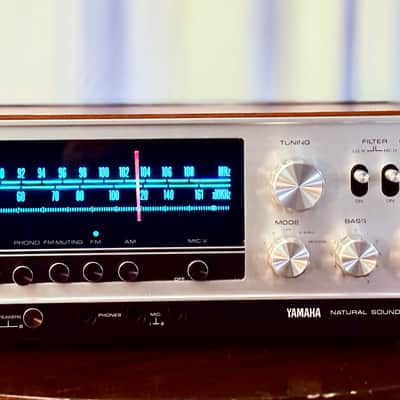

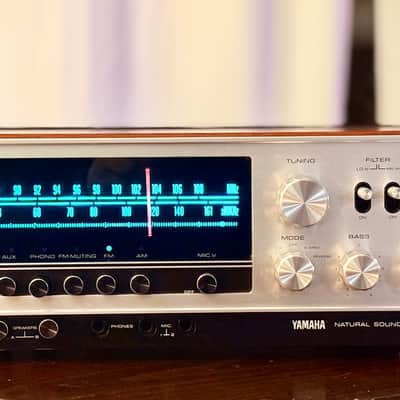

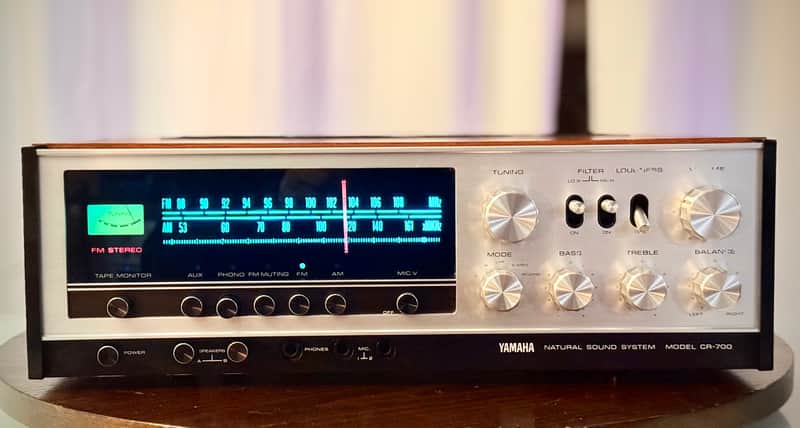

• Dial lighting is even and crisp with LED conversion
• All functions tested and working as expected (details below)

Cosmetic transparency note: The technician noted CR-700 faceplate silkscreening can be unusually fragile. Given the model’s rarity and difficulty sourcing replacement parts, the faceplate was left as-found (no risky re-inking or aggressive restoration attempts).

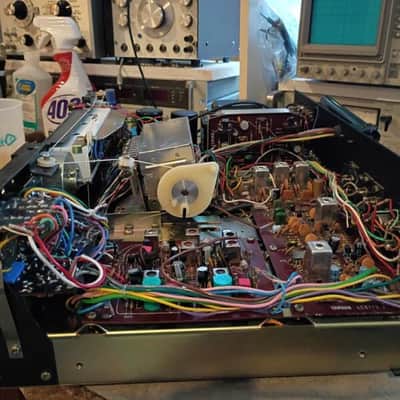

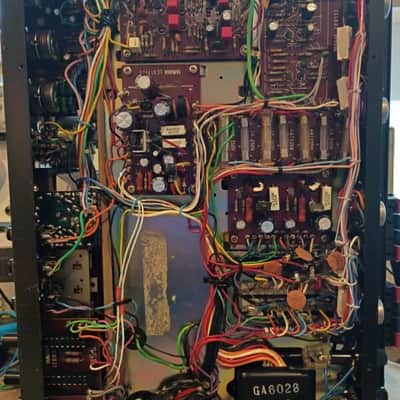

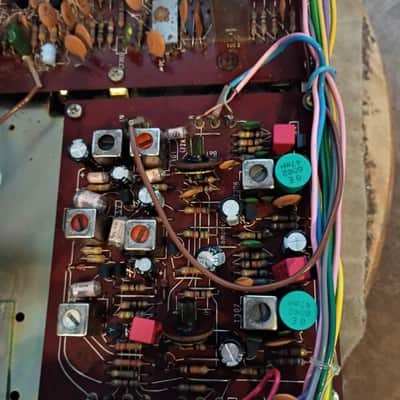

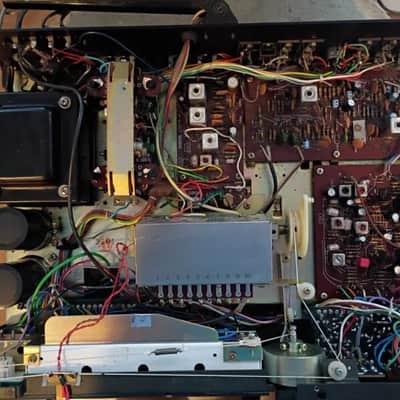

Service & TestingWork performed (per technician notes)

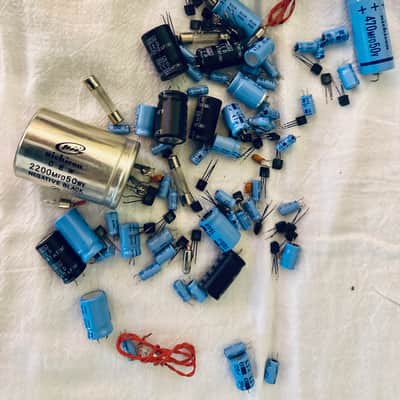

• Full recap completed

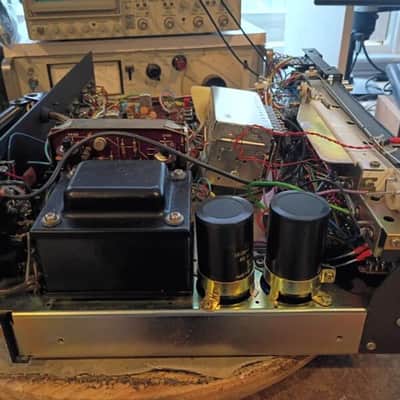

• Main amplifier/power supply reservoir capacitors up-capped from 2200µF to 3300µF
• Switches and potentiometers cleaned and lubricated to resolve normal oxidation/dirty-control noise

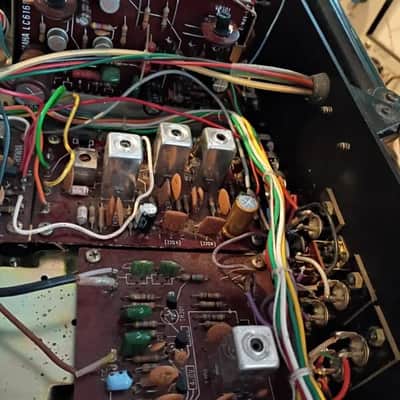

• Tape loop channel issue repaired by reattaching a disconnected wire
• Initial internal inspection showed no evidence of prior issues; original output transistors remained in place (positive sign)

Tested and verified

• Powers on reliably; stable operation confirmed
• Inputs/selector, volume/balance, tone controls function properly
• Speaker outputs and headphone output verified
• AM/FM operation verified; tuner operation confirmed
• Typical Yamaha behavior after service: very low idle hum and hiss

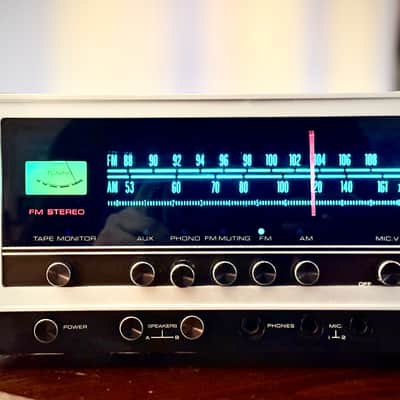

Tuner meter note (observed): The front meter is labeled “Tuning,” but functions as a signal-strength meter for both AM and FM.

Bench Measurements (Technician)

• Yamaha published amp spec: 40 WPC (both channels driven into 8Ω, 1 kHz)
• Measured under the same conditions: 40 WPC into 8Ω, 0.5% distortion max
• Measured across 20 Hz–20 kHz: 28 WPC

(Real-world takeaway: this is a healthy-performing CR-700 with verified output consistent with Yamaha’s period specs.)

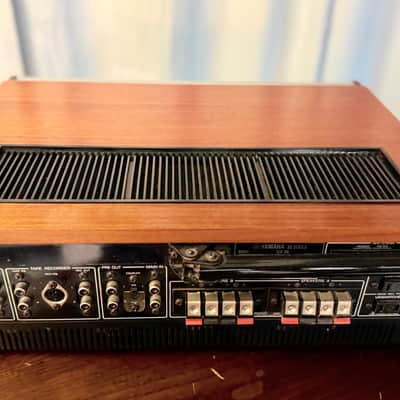

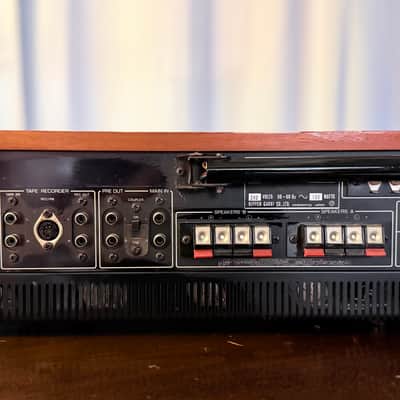

Rear Panel & Electrical (Photo-Verified)

• Mains: 120V (North America compatible)
• Connectors: standard RCA inputs/outputs (no DIN-only layout)
• Speakers: spring-clip outputs (no unusual proprietary sockets)

Safety/accuracy note: Specs are listed per rear-panel label and photos. Buyer should confirm correct fuse type/value and speaker load before use.

Features

• Rare Yamaha CR-series receiver with distinctive styling vs the common “00” series
• Classic Yamaha Natural Sound voicing
• Fully serviced example with major reliability work completed (full recap + control service)
• Includes bench test results for buyer confidence
• Original wood case adds collector appeal and presentation value

Sound

Clean, balanced Yamaha presentation with low noise floor—excellent clarity and separation, and an easy, natural character that pairs well with a wide range of speakers.

Included

• Yamaha CR-700 receiver
• Original wood case
• Any service/replaced-parts documentation or photos shown in the listing (if pictured)

Shipping & Packing (Ground only):

Packed to a high standard for vintage gear:

• Reinforced corners and foam blocking
• Careful protection of faceplate/knobs
• Double-boxed with dense packing materials
• Shipping cost includes carrier rate, packing materials, handling, and insurance

Please Read

• Please review all photos and the YouTube demo before purchase.
• Vintage electronics are sold as described and photographed; ask any questions prior to checkout.
