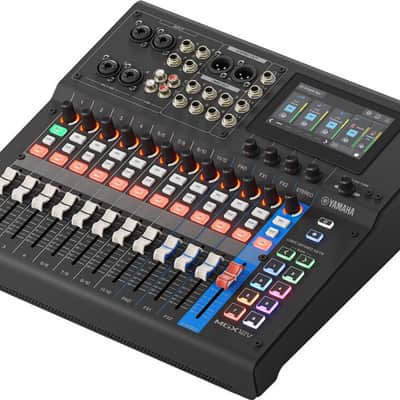

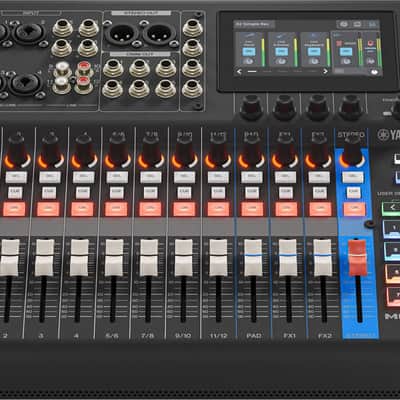

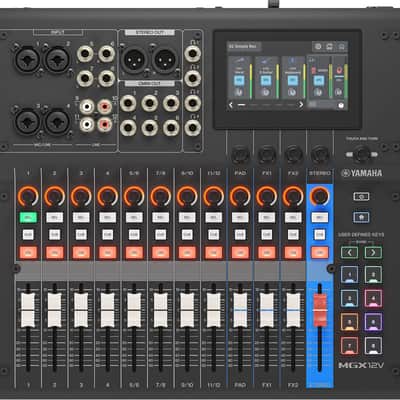

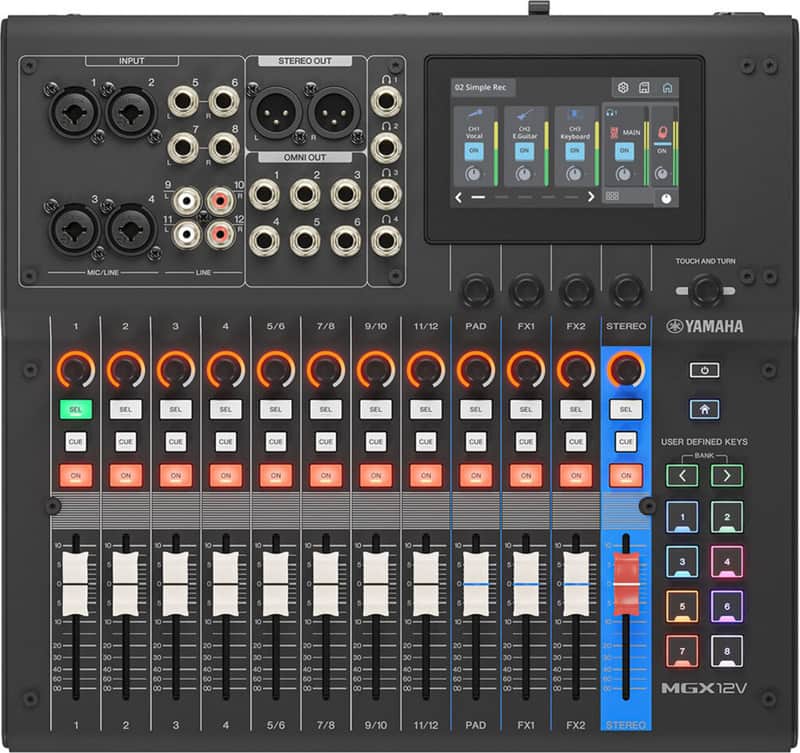

Yamaha MGX12V 18-Channel Digital Mixer & Dual USB-C Audio/Video Interface, Black

Delivering a perfect blend of flexibility, performance, and premium sound quality, the Yamaha MGX12V is a 18-channel digital mixing console that builds upon the success of the analog MG-Series analog mixers and creates the next evolution of hands-on digital mixing environments well suited for a versatile range of live and installed sound, podcast/live streaming, music production, and recording applications. The MGX12V integrates a USB-HDMI audio/video interface with capture and pass-through functionality, enabling users not only to mix and output audio in a variety of ways, but also to simultaneously capture video to a PC and record or stream it together with the audio. With the ability to seamlessly integrate high-definition video into your workflow, the MGX12V opens up new creative possibilities in a wider range of environments. In any application that involves content with both audio and video, the MGX12V will elevate your production quality and captivate your audience.

Product Features

• 12-Input Digital Mixer Melding Studio-Quality Sound with Flexible Routing, Intuitive Operation, and Seamless Video Integration
• 12 Non-Motorized Faders, a Vivid 4.3" Touchscreen, and 5 Control Knobs Offer Straightforward Operation
• 4 Premium-Quality MGX Mic Preamps on Mic/Line Combo Inputs
• 12 Mix Inputs with Mono and Stereo Channels, a Dedicated Sound Pad, 2 FX Channels, and Robust Mix, FX, Cue, and Stereo Buses
• 18-In/18-Out USB Audio Interface, Plus 2‑Track Recording and Playback on the Sub Port
• Bluetooth Audio Input Enables Smooth Wireless Audio Integration for Performances, Streaming, and Studio Sessions
• 8 Customizable Pads Allow You to Trigger Sound FX or User‑Defined Functions in Real Time
• Onboard 16-Track Recording to a microSD Card with 2-Ch Playback
• USB-HDMI Audio/Video Interface with a Capture Function and Real-Time HDMI Passthrough
• Refined DSP Provides You Pristine Digital FX and Latency-Free Monitoring
• Useful Assistive Features, Comprising Auto Gain, Clip Safe, Simple/Standard Mode, and Scene Recall
• Includes a Practical Cache of Steinberg Production Software and Smooth Elgato and OBS Studio Integration

Attributes

• Color: Black

Technical Specifications

• Type: Electric
• Features: Bluetooth, Wireless, USB, Rackmountable
• # of Channels: 18
• Dimensions: 3.8" H x 13.2" W x 12.5" D
• Weight: 9lbs
• Inputs: 4 x XLR-1/4" Combo, 4 x 1/4", 2 x Dual RCA Stereo
• Outputs: 2 x XLR, 6 x 1/4" TRS
• USB: 2 x USB-C
• Software: Cubase Al, WaveLab Cast LE, Basic FX Suite, and Steinberg Plus software bundle
• Power Supply: 16V DC Power Supply
• Storage Format: Micro-SD, USB
• Receiver Data I/O: 2 x HDMI
• # of Mic Inputs: 4
• Faders: 12
• Screen: 4.3" Touchscreen
