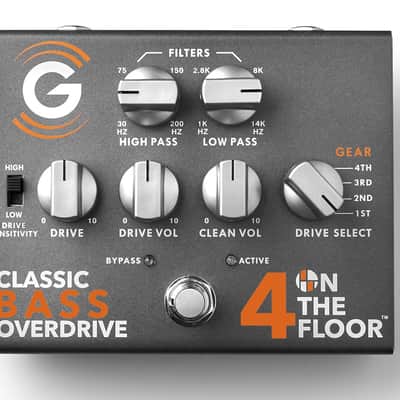

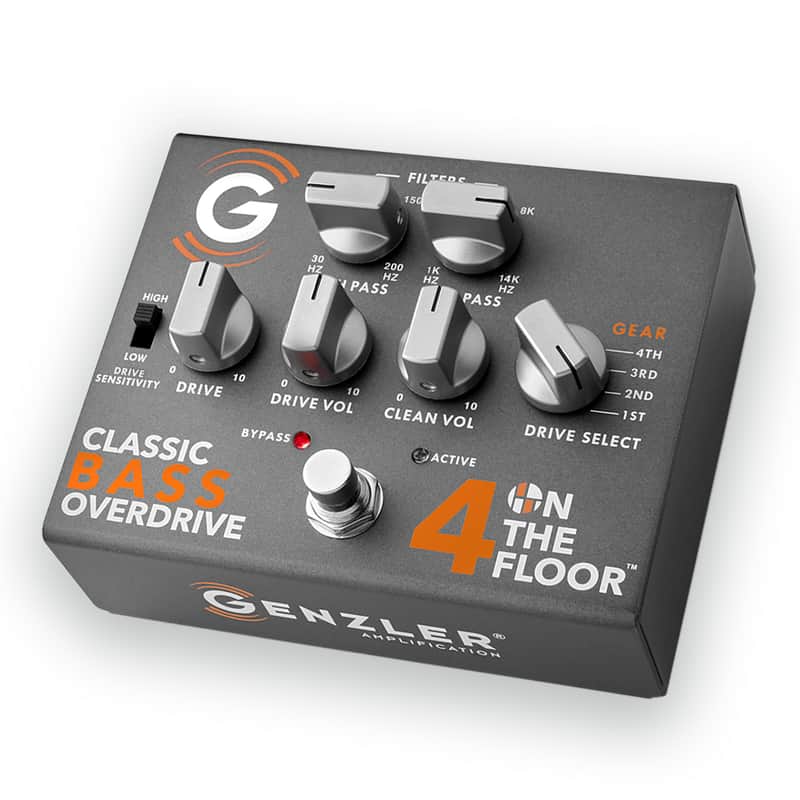

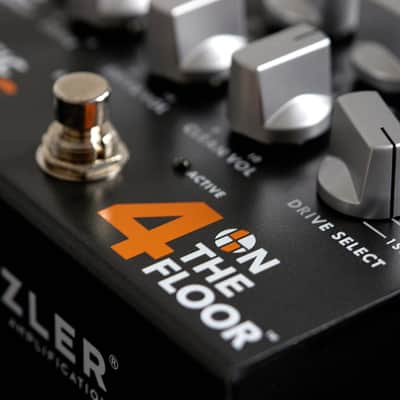

The GENZLER 4 ON THE FLOOR Classic Bass Overdrive Pedal is the first in Genzler Amplification’s new effects line, reuniting Jeff Genzler with engineer Andy Field. Built on decades of design innovation, this boutique bass pedal delivers a wide spectrum of analog overdrive tones with unmatched versatility and musicality.

Featuring 4 selectable “gears” of overdrive, the 4 ON THE FLOOR offers everything from a clean boost to saturated drive. With a clean blend, HPF/LPF tone shaping, and touch-sensitive asymmetrical and symmetrical clipping, this pedal provides dynamic control for any style of bass playing. This versatility allows it to be used as a clean boost, along with the various overdrive gears, up to all out heavy saturated drive.

Designed for professional use, the 4 ON THE FLOOR runs on almost any power supply (9–18V, either polarity) and includes true bypass switching for clean signal integrity. Whether you want subtle grit, classic tube-like warmth, or heavy distortion, this pedal is built to shift your tone to the next level.

Specifications:

• Input Impedance: >1M ohm
• Output Impedance: 1k ohm
• Overdrive Engine Input HPF: 30Hz – 200hz
• Overdrive Engine Output LPF: 1kHz – 14kHz
• Input Sensitivity (nominal): -20dBu (high sensitivity), -10dBu (low sensitivity)
• Maximum Input Level: 0dBu (9V supply), +5dBu (12V supply), +10dBu (18V supply), high sensitivity, DRIVE at 9:00
• Maximum Input Level: +5dBu (9V supply), +12dBu (12V supply), +18dBu (18V supply), low sensitivity, DRIVE at 9:00
• Maximum Output Level: +9dBu (9V supply) +14dBu (12V supply), +20dBu (18V supply)
• Dimensions: 5” (127mm) W x 4.1” (104mm )D x 2.3” (59mm)H
• Weight: 1.1 lb (0.5kg)
• Power Supply: 9VDC-18VDC (low noise type), either polarity (auto-detecting), 40mA max (Power supply not included).
