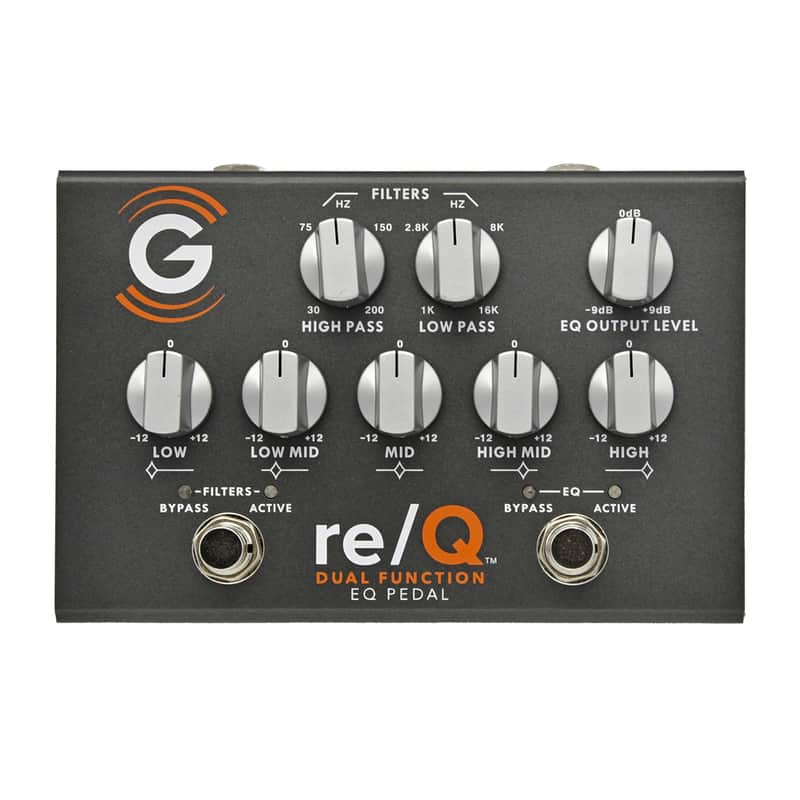

The GENZLER re/Q Dual Function Equalization Pedal is the second release from the Genzler “redux collaboration,” reuniting Jeff Genzler and engineer Andy Field. Designed as a versatile tone-shaping tool for bass, acoustic, and electric guitar, the re/Q is a true “swiss army knife” for live and studio performance.

Featuring two independent filter networks (HPF and LPF) with on/off switching and a powerful 5-band EQ with its own switch, the re/Q offers precise tonal control and flexibility. With an EQ output level of +/- 9dB, it can also serve as a clean boost, making it an essential tool for enhancing your instrument’s sound or compensating for room acoustics.

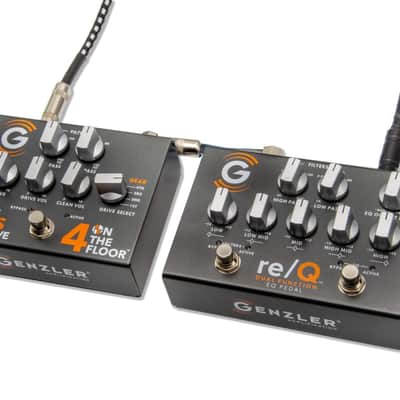

Compatible with nearly any pedalboard setup, the GENZLER re/Q accepts power supplies from 9–18V (either polarity) and pairs perfectly with other Genzler pedals like the 4 ON THE FLOOR Bass Overdrive. For players seeking clarity, control, and pro-level tone-shaping, the re/Q delivers unmatched versatility.

Specifications:

• Input Impedance: >1M ohm
• Output Impedance: 1k ohm
• HPF: 30Hz – 200hz
• LPF: 1kHz – 14kHz
• EQ Filter Points:
• • LOW: 90 Hz
  • LOW MID: 250Hz
  • MID: 630Hz
  • HIGH MID: 1.3kHz
  • HIGH: 2.6kHz
• EQ Band Control Range:  +/- 12dB
• EQ Output Level Control Range:  +/-9dB
• Input Sensitivity (nominal):  -10dBu to -20dBu (instrument level)
• Input Level (maximum): 0dBu (9V supply), +5dBu (12V supply), +10dBu (18V supply)
• Output Level (nominal): -10dBu to -20dBu (instrument level)
• Output Level (maximum): +9dBu (9V supply) +14dBu (12V supply), +20dBu (18V supply)
• Power Supply: 9VDC-18VDC (low noise type), either polarity (auto-detecting), 40mA max   (Power supply not included)
• Dimensions: 6” (152mm) W x 4.1” (104mm )D x 2.3” (59mm)H
• Weight: 1.3 lb (0.6kg)
