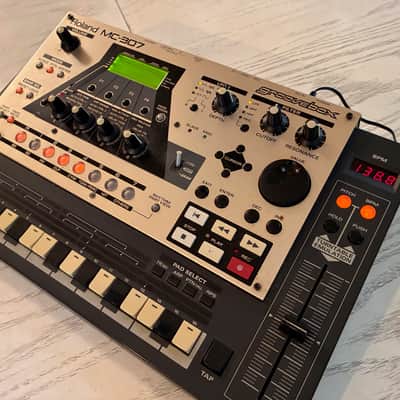

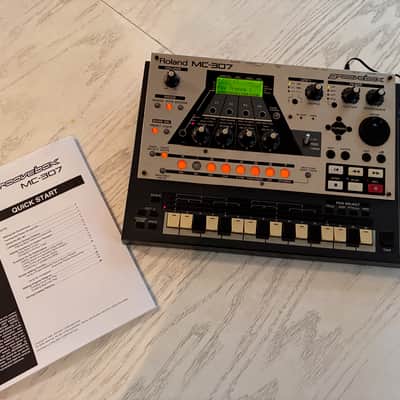

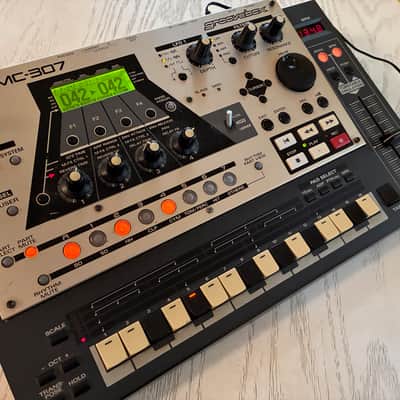

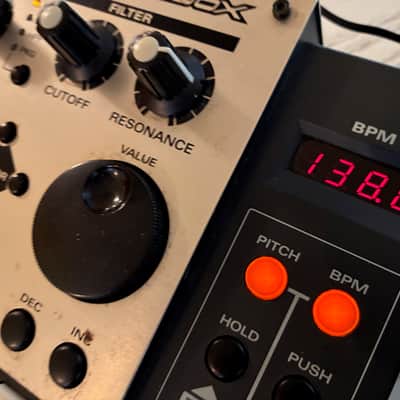

Roland MC-307 Groove Box

Inside, the sound architecture and sequencer is like the Roland MC-505.

Outside, it has been streamlined for "DJ" use and "live performance".

It's in great shape. I don't know the history of this machine, but it works great for me.

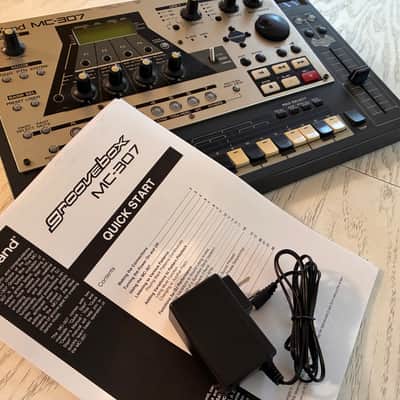

WHAT'S INCLUDED

• The Roland MC-307.

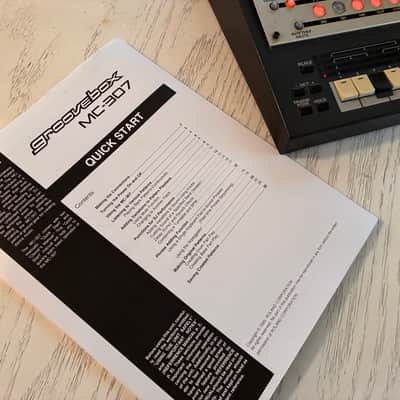

• A reprint of the first section of the "Quick Start" guide.
• A new power supply rated for this device. (1000mA)


About the Roland MC-307

• Groove music workstation (sequencer/sound module) with 64-voice sound engine
•  16MB of dance-oriented synth and drum instruments, plus many new sounds

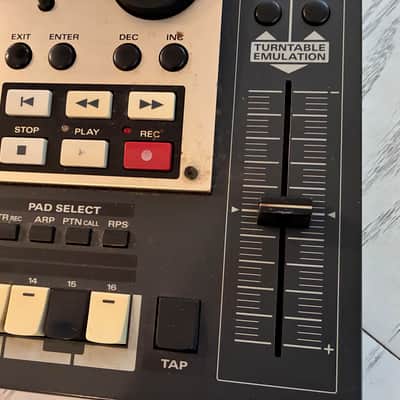

•  Turntable Emulation slider with Push and Hold buttons provides independent control over pitch/tempo
•  Graphic LCD and four assignable control knobs eliminate layered menus
•  240 all-new patterns covering techno, house, hip-hop, drum 'n' bass and more
•  Improved TR-REC sequencing for easily inputting rhythms, scales and chords
•  Three independent, synchronizable effects processors and onboard arpeggiator
•  Grab switch with multi-effects (including Isolator) for creating interesting rhythmic effects

Specifications

• Max. Polyphony
• 64 voices
• Parts
• Main: 8 + RPS: 16
• Patches
• Preset: 800, User: 256
• Rhythm Set
• Preset: 40, User: 20
• Effects
• Reverb: 6, Delay: 2, M-FX: 25
• <Sequencer>
• Tracks: 8 + Mute
• Ctrl Resolution: 96 TPQN
• Tempo: 20.0 to 240.0 (Max.)
• Max. Note Storage: 95,000 notes
• Patterns Preset: 240, RPS: 470, User: 200
• Songs: 50
• Recording Method: Realtime, TR-REC
• Quantize: Grid, Shuffle, Groove (71 types)
• Arpeggiator: Preset: 43, User: 10
• RPS set: 60
• Pattern set: 30

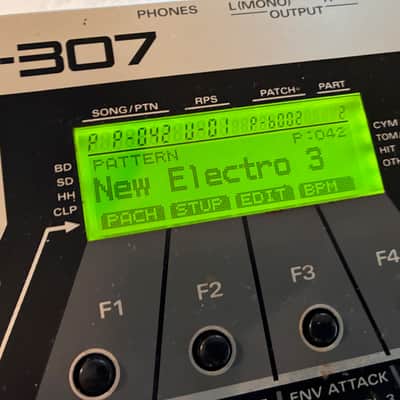

• Display
• 136 x 32 dots backlit, Graphic LCD, 7-segment
• 25-character, 7-segment LED 4-character (LED)
• Knobs
• Cutoff, Resonance, LFO1, Assignable 1 to 4
• Turntable Emulation block
• Turntable Emulation slider, Turntable PUSH/HOLD button l
• Grab Switch

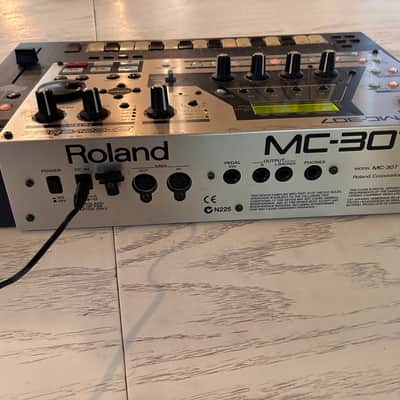

• Connectors
• Control
• Headphones, Output (L/MONO, R), MIDI (IN, OUT), Foot
• Power Supply
• DC9V
• Current Draw
• 1000mA
• Dimensions
• 422 (W) x 277 (D) x 98 (H) mm / 16-5/8" x 10-15/16" x
• 3-1/2"
• Weight
• 2.2kg / 4 lbs. 14 oz.
