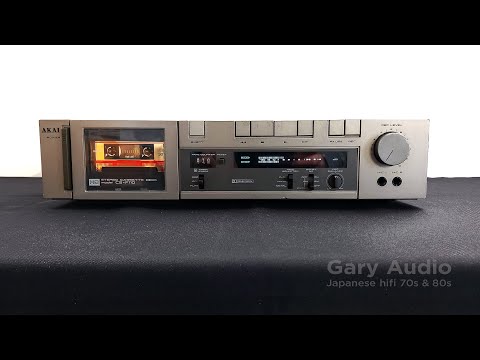

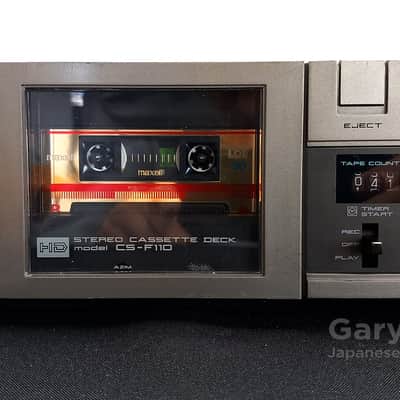

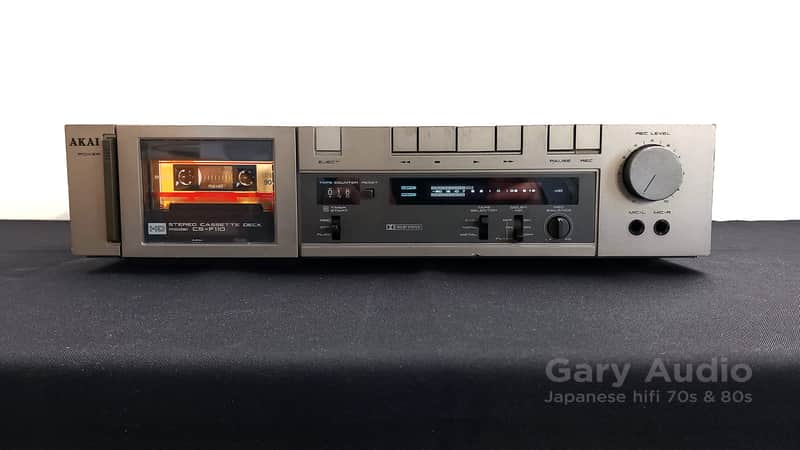

Akai CS-F110 2-Head Tape Deck Rare Grey Edition CS F 110 Japan 1982

If you like the Akai CS-F21 deck, you will love the F110 too! This is the rare grey edition. Smooth, precise control, fast rewind and fast forward, stabile play back. All in a cool grey spacey 80s design. The 2-Headed machine has many cool features that were truly pioneer in the early 80s. Dolby B and C noise filters make the audio experience extraordinary. The Timer can Play / Rec the tape. CrO2 / Normal / Metal tape types can be selected. The bright horizontal digital VU-meters make music come alive in front of your eyes.

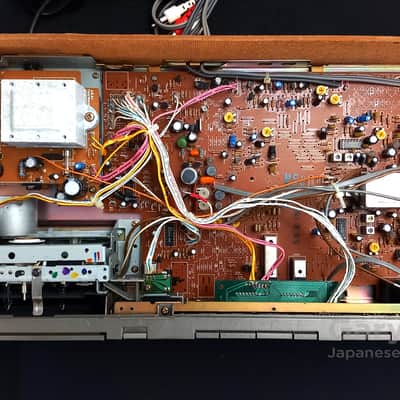

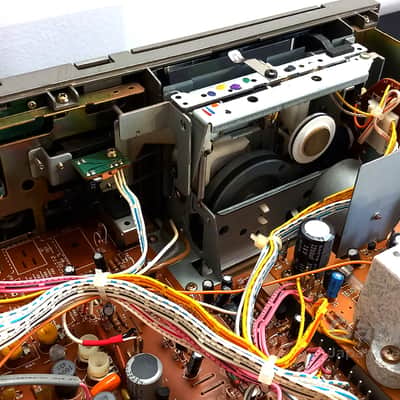

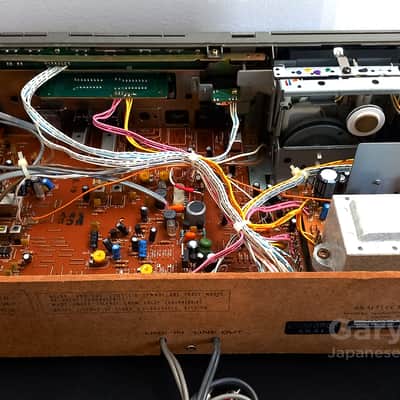

This is a completely restored and cleaned item. All parts are original and all functions work promptly. International shipping in a hard cardboard box, carefully and safely lined.

Specifications:

Manufacturer: Akai Electric Co., Ltd.; Tokyo

Model: CS-F110

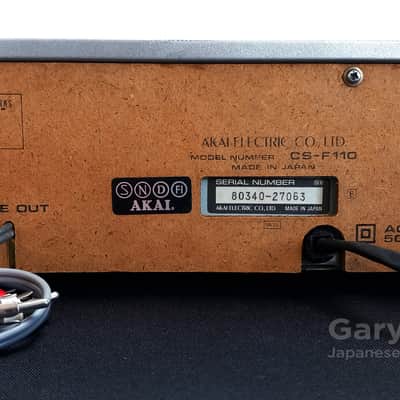

Serial No: 80340-27063

Type: 2-Head, Single Compact Cassette Deck

Years of manufacture: 1982

Made in: Japan

Color: Grey, silver

Dimensions (WHD): 440 x 103 x 233 mm

Weight: 4 kg


Technical data:

Power Requirements: 110-240V, 50/60 Hz

Power Consumption: 12 W

Sound heads: 2

Motors: 1

Track System: 4-Track, 2-Channel Stereo

Tape Speed: 4.75 cm/s (1-7/8 ips)

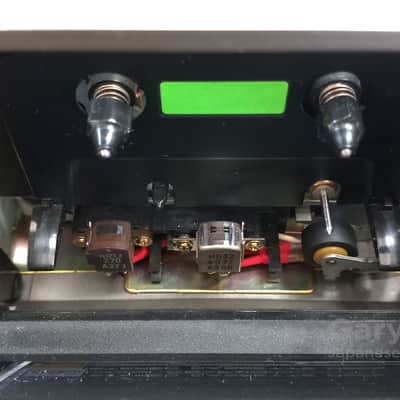

Heads: 1x Record/Playback, 1x Erase

Tape Types: Normal (Type I), CrO2, Metal

Noise Reduction: Dolby B

Frequency Response: 30Hz - 18kHz (Metal Tape)

Wow and Flutter: 0.04% (WRMS)

Signal-to-Noise Ratio: 58dB (Metal Tape)

Total Harmonic Distortion: -0.8%

Inputs: Line (70mV), Mic (0.25mV)

Outputs: Line (410mV)

Connections:

Input: Line: 70 mV (47 kOhm)

Microphone: 0.25 mV (10 kOhm)

Output: Line: 0.775 V (47 kOhm)

Audio Performance:

Normal tape: 20 Hz to 18 kHz

Metal tape: 20 Hz to 20 kHz

Signal to Noise Ratio:

Dolby B: 66 dB

Dolby C: 72 dB


Special Features:

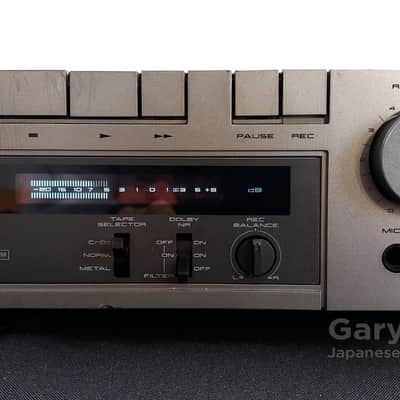

LED peak level meters

Bias adjustment

Auto-stop mechanism

Noise Reduction System: Dolby B and C

Tape Counter: 3-digit mechanical

Motor: DC servo motor
