Descriptions

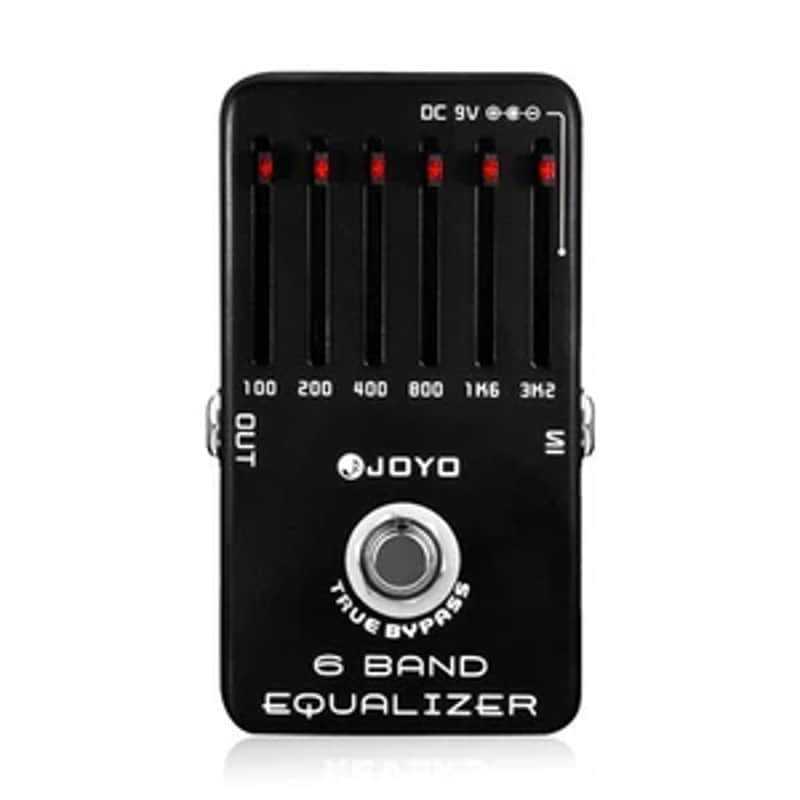

JOYO 6 Band EQ pedal, Each band provides a range of ±18dB to help you find your favorite tone. Includes the frequency bands: 100Hz, 200Hz, 400Hz, 800Hz, 1.6kHz and 3.2kHz.
A really under appreciated way to shape your guitar signal, Highs can be boosted for more articulation in overdrive, Mids frequencies can be boosted to stand out in the mix, Lows can be cut to make things less muddy.
True Bypass provide transparent tone to keep the best tone quality, aluminium-alloy housing classic stoving varnish finish, stable and strong.

Specifications
Input Impedance: 500KΩ
Output Impedance: 10KΩ
Running Current: 15mA
Power: 6F22 9V Battery/ DC 9V adapter (None included)
(When connecting the adapter, battery power would be cut off automatically)
Dimension:120(L)X 72(W)X 55(H) mm Weight: 290g

SOME TIPS:
* Before you test the pedal or before playing, make sure the guitar is fully connected with the pedal;
* More importantly, you need to make sure it meets the working current requirement of each single pedal.
* In order to make JOYO pedals work properly, avoiding unexpected noise caused by power supply, we recommend that you purchase a JOYO original power adapter, or choose other reliable brands.

Package included:
1 x JOYO JF-11 6 Band EQ pedal.
1 x User's Manual.
(Power Supply Adapter is NOT included.)
