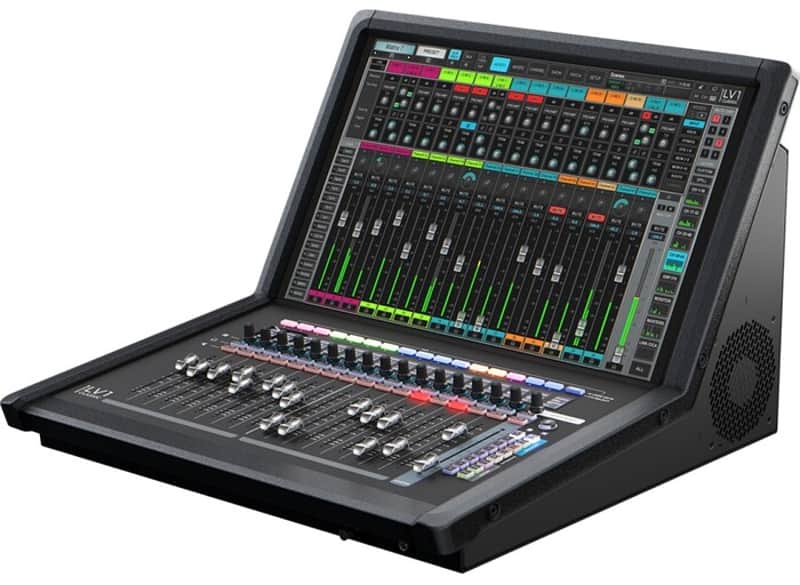

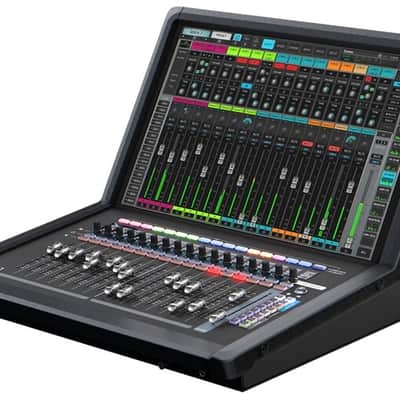

Waves Audio eMotion LV1 Classic 64-channel Compact Digital Mixer w/ 21.5" touchscreen, 17 faders

Product Overview

Add the acclaimed Waves LV1 mixer engine to a traditional console frame, load it with industry-standard Waves plugins and bespoke preamps then deliver it in an intuitive, compact form factor and you have the Waves LV1 Classic live mixing console. Tailored for live sound engineers who value sonic excellence, world-class processing, and ease of control, It offers 64 mono/stereo input channels, and 44 mono/stereo buses (including groups, auxes, matrices, and master buses). It boasts a powerful 32-bit floating point mix engine, delivering latency as low as 0.8 ms. The console's 21.5” multi-touch screen with 1000 Nit brightness, 16+1 motorized faders, and precision encoders make for an enhanced user interface, while the 16 Waves Signature Preamps ensure superior sound quality.

Packed with industry-leading processing capabilities, the LV1 Classic includes a built-in SoundGrid Extreme Server to run the integrated plugins directly on any channel or bus without breaking a sweat. 12 line outputs, a pair of AES3 outputs, and the option to add Dante, MADI, or additional analog or AES3 outputs means the future of live mixing is also future-proof! Easily expand the system with up to 3 additional processing servers and 4 backup servers (sold separately), while the system's customizable keys, channel colors, and advanced patching system allow for flexible configuration. Additional features include dual power supply redundancy, immersive in-ear mixing, Dugan auto-mixing, and the ability to record 16 tracks to USB or 128 to remote computers.

Ideal for professional live sound setups, the LV1 Classic also includes a suite of Waves plugins such as Waves Tune Real-Time, F6 Dynamic EQ, and R-Comp, and more, with the option to upgrade to 160 additional award-winning plugins. The console's robust construction and compact design (22” x 15.8” x 22.1”) make it travel-ready, weighing just 37 lbs. with a total shipping weight of 51.3 lbs. Its ergonomic layout, vast array of features, and selfless versatility mean you'll never work around this console. It will always work with you to craft the mix in your head.

Waves eMotion LV1 Classic Includes

• PluginsWaves eMotion LV1 Classic FeaturesWaves eMotion LV1 Classic Specifications
• • Waves Tune Real-Time
  • F6 Dynamic EQ
  • eMo Q4 EQ
  • eMo D5
  • eMo F4 Filter
  • GEQ
  • X-FDBK
  • Primary Source Expander
  • R-Comp
  • R-Bass
  • H-Delay
  • Doubler
  • R-Verb
  • TrueVerb
  • GTR3
  • Magma Tube Channel Strip
  • eMo Generator
• • 64 mono/stereo input channels
  • 44 mono/stereo buses: 8 groups, 24 auxes, 8 matrices, 3 master, cue
  • Double Precision 32-bit floating point mix engine (44.1–96 kHz)
  • Latency as low as 0.8 ms

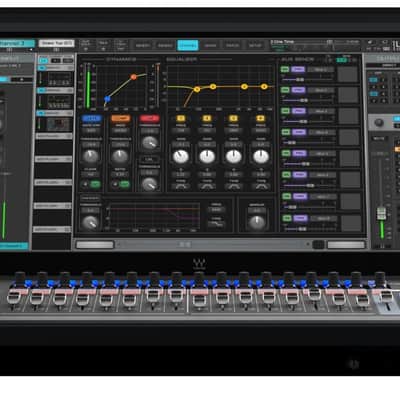

  • 21.5” multi-touch screen with 1000 Nit brightness
  • 16+1 motorized 100 mm Alps faders
  • 16+1 precision encoders, with mini-displays including per-channel LCD metering, and
  • Select/Mute/Solo keys
  • 16 layers with utility keys and tempo pad
  • 16+2 customizable keys
  • 16 Waves Signature Preamps with mic/line inputs

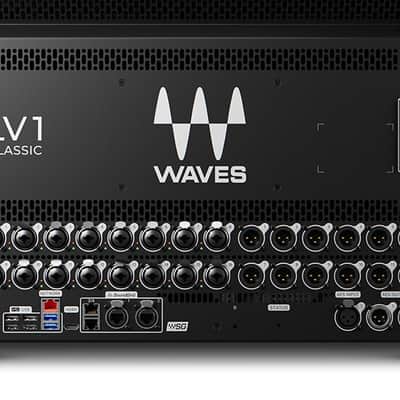

  • 12 line outputs, 2 AES3 outputs, AES3 SRC input
  • Built-in SoundGrid server (Extreme Server-grave) handles processing
  • Add more IOs: Up to 14 devices including Analog, AES3, Dante, MADI
  • Add up to 3 processing servers and 4 backup servers
  • 4 SoundGrid switch ports: 2 Ethercon + 2 Rj45
  • Hi-power H/P output with ¼” jack + minijack
  • HDMI / 8 USBs / remote network
  • 12v XLR4 lamp option
  • Dual power supply for redundancy
  • 2-year warranty included
  • 8-slot rack hosts 8 plugins per input channel + all mix channels
  • Plugins included with the console: Waves Tune Real-Time, F6 Dynamic EQ, eMo Q4 EQ, eMo D5
  • Dynamics, eMo F4 Filter, GEQ, X-FDBK, Primary Source Expander, R-Comp, R-Bass, H-Delay,
  • Doubler, R-Verb, TrueVerb, GTR3, Magma Tube Channel Strip, eMo Generator
  • 160 additional award-winning Waves plugins available as upgrades
  • Immersive in-ear mixing available as software upgrade (eMo IEM)
  • Dugan auto-mixing available as software upgrade
  • Custom options for mixing layout
  • Intuitive control over each channel’s parameters
  • Patch system-wide connections
  • Custom colors per channel
  • Unicode multi-language support
  • Up to 1000 scenes with Recall Safe and Scope Filters
  • 8 Mute groups and 16 Link DCAs with Spill function
  • Digital preamp control with local V-Gain tracking for sharing
  • Multiple outputs per channel with delay alignment controls
  • Record 16 tracks locally to USB / 128 tracks to remote computers
  • Stereo playback from USB
  • Remote control apps for mobile & tablet, for both FOH and stage
• • Size: 22” (560 mm) x 15.8” (402 mm) x 22.1” (561 mm)
  • Weight: 37 lbs. (16.8 kg) / Shipping weight: 51.3 lbs. (23.3 kg)
  • Total weight of console in SKB flight case is just 68 lbs. (under 31 kg)
