SPECIFICATIONS POWER AMPLIFIER SECTION:
- Power output 300 Watts Rated load impedance
- 4 Ohms Distortion at rated power
- Less than .05% Damping factor, at 4 Ohms
- Greater than 100 Power bandwidth 20 Hz - 20 kHz
- Input sensitivity 1.33 volt R.M.S.
- Input impedance >10k Ohms
- Slew factor Greater than 1
- Signal to noise ratio -100 dB Re/300 Watts

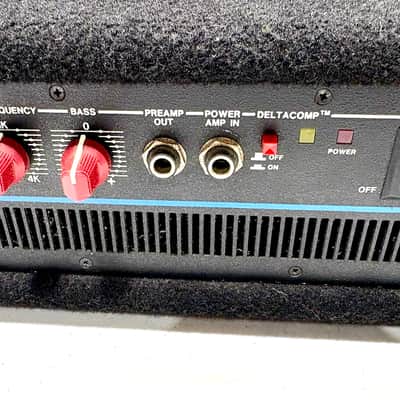

- DELTACOMPâ„¢ range 20 dB
PREAMP :
- Input impedance: Input 1 > 100k Ohms : Input 2 > 800k Ohms
- Sensitivity: Volume at max., enhance buttons out, all equalization controls at 12 o'clock, power amp at 300 Watts, 4 ohms : Input 1 < 10mV : Input 2 < 20mV
- Equalization range: Enhance: Low +9dB at 80 Hz. High +12dB at 5kHz. Bass: +/- 14dB at 40 Hz. Treble: +/- 17dB at 5kHz. Mid: +/- 20 dB at 150 Hz through 4kHz.
- Overall signal to noise ratio, volume at min., -95 dB below rated output
- PHYSICAL SPECIFICATIONS: BXR 300R Width (rack ears installed) 19 inches Width (without rack ears) 17 inches Height 3.5 inches Depth 10.125 inches Weight 19 lbs.
