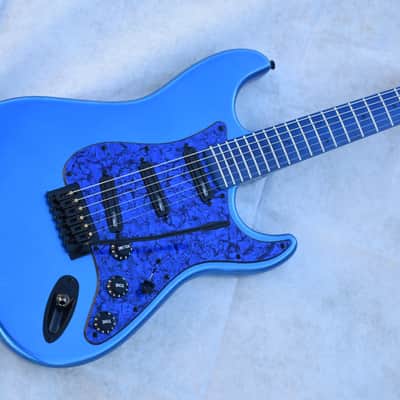

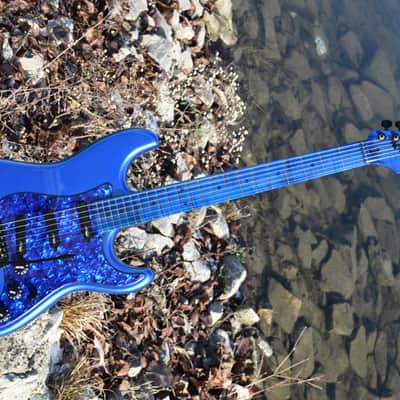

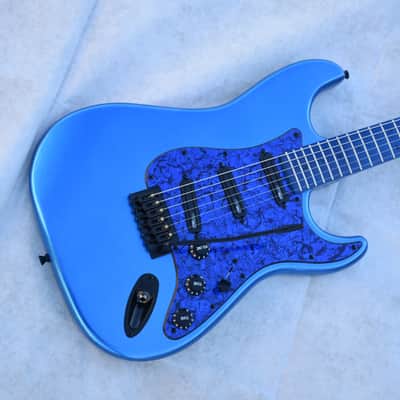

Custom Pre-order! Stratocaster HHH Metallic Blue Hot Rails 5-Way Coil Split

**NEW Upgrade options**:

• Seymour Duncan bridge pickup humbucker or single coil $69
• Seymour Duncan middle pickup humbucker or single coil $69
• Seymour Duncan neck pickup humbucker or single coil $69
• Pre-wired/loaded pickguards: If you want to do a drop-in loaded pickguard I would discount the listing by $80 and either you mail it to me, or we put the expense in the listing for me to buy it and have it sent here for installation.

This is a pre-order for this guitar to be built and shipped to you within 28 days. You can order it as-is, or request any upgrades or modifications prior to your purchase.

This is 100% payment for this guitar. Guitar will ship after being built.

Estimated time of completion is 28 days. 90% of the time it ships on the 27th or 28th day. 8% of the time it ships earlier. 2% of the time it's late due to unforeseen delays. I will be available at all times for updates and keep you informed of early delivery or delays. Changes can be made before and during build so long as price and payment are agreed upon and completed.

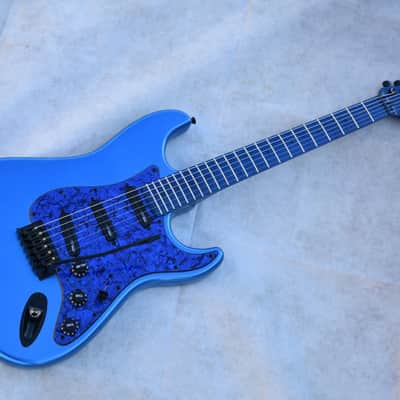

The guitar that is pictured is one that has already been built and sold.  Color or wood grain may vary slightly from that in the picture. Binding may or may not be present. You are welcome to discuss with me prior to purchase and during the build if any of these factors are important to you. If there are any drastic differences, you will be notified.

General Overview:

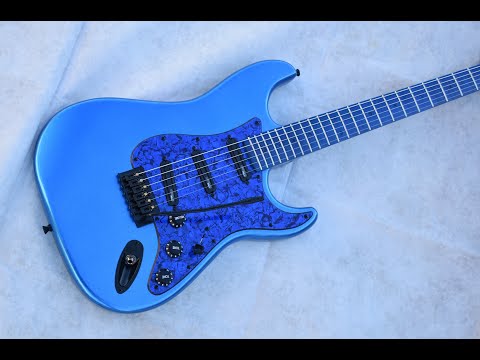

• Playing demo and description video available at "Werner Guitars" YouTube channel
• Wilkinson M-Series Low Gauss Black Dual Rail Pickups
• Humbuckers individually split
• Wiring has Hum-cancelling Single-Coil Options
• Full level, crown, polish, set-up, playability test, inspection and packaging by a certified luthier
• Every contact point of the string path has been optimized for tuning stability and return-to-pitch after bends and tremolo use: (Roller saddles, Guyker Bone nut lubricated with graphite, Roller string trees, and Wilkinson tuners)
• Strings: D'Addario Nickel Wound XL 10-46 EXL110

About the Wiring:
The wiring uses 3 push-push pots so that each of the humbuckers can be split to a single coil. The Middle pickup splits to its south coil and the Neck & Bridge pickups split to their north coils so that Positions 2 & 4 will still be hum cancelling when split. Position 3 is all 3 pickups in parallel with no tone control.

Guitar has a wide range of resistance settings with mix and match of push-push coil splits. Capable of chicken-pickin' country, jazz, smooth blues, roaring rock, to stoner doom metal, the sonic possibilities are endless.

5-Way Switching:

1. Bridge – Tone 2  -- (Resistance 14.58 ohms, coil split - 7.30 ohms)
2. Bridge & Middle – Tone 1 -- (Resistance 4.79 ohms, both coil split - 2.40 ohms)
3. All 3 Pickups – No Tone -- (Resistance 2.86 ohms, all 3 coil split - 1.43 ohms)
4. Neck & Middle – Tone 1  -- (Resistance 3.53 ohms, both coil split - 1.78 ohms)
5. Neck – Tone 1  -- (Resistance 7.00 ohms, coil split - 3.52 ohms)

Push-Pull Pots Down for Humbuckers
Volume Push-Pull Up for Neck North Coil
Tone 1 Push-Pull Up for Middle South Coil
Tone 2 Push-Pull Up for Bridge North Coil

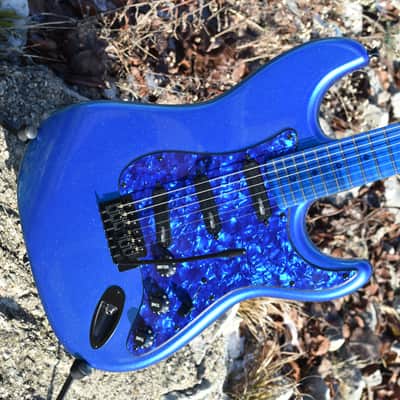

Body:

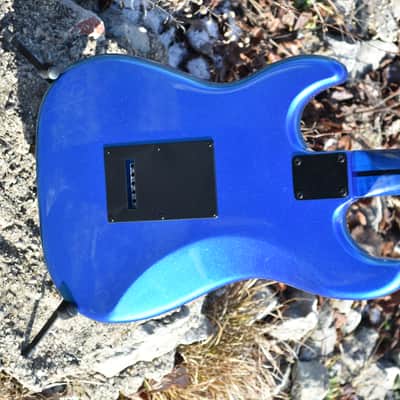

• Metallic blue High Gloss Polyester Finish on Poplar Body

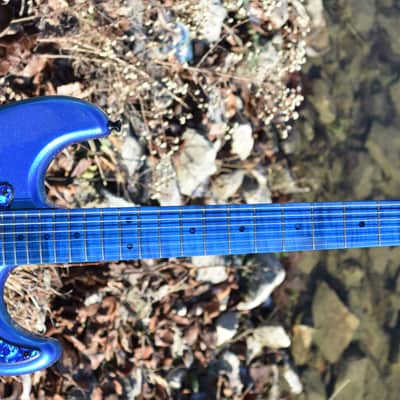

Neck:

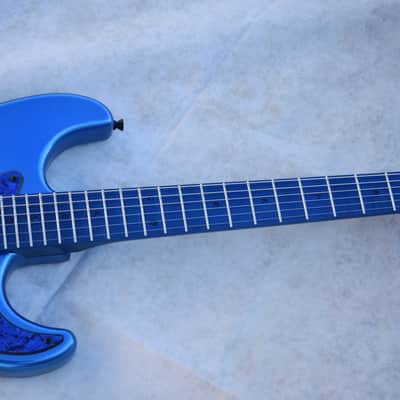

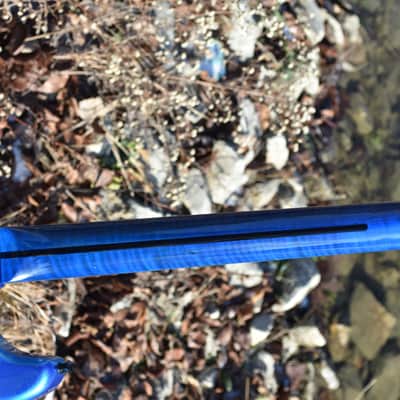

• Blue High Gloss Maple with BlackFret Markers, "C" Shape neck 22 medium/jumbo frets, gloss transparent blue finish.
• Scale length 25.5"
• Guyker bone nut lubricated with graphite

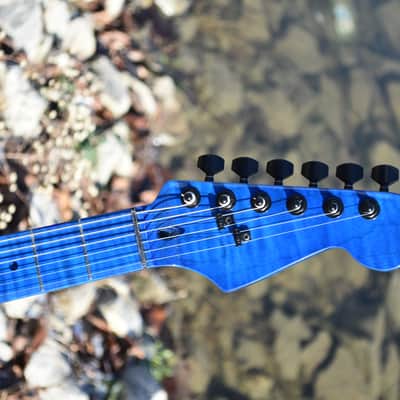

Hardware:

• Black Modern Tremolo Bridge with 6 individual roller saddles
• Black Tremolo Arm

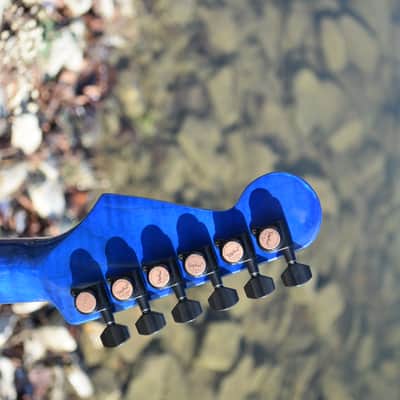

• Saphue Black Locking tuners
• Black roller string trees

Electronics:

• Wilkinson M-Series Black Dual Rail Bridge Pickup 14k (Exact measure 14.41 ohms).
• Wilkinson M-Series Black Dual Rail Middle Pickup 8k (Exact measure 8.42 ohms).
• Wilkinson M-Series Black Dual Rail Neck Pickup 7k (Exact measure 7.0 ohms).
• 500K Push/Push Volume/Tone Potentiometer Audio Taper
• 5-Way Blade Super-Switch
• 0.022uF 630V 5% K73-22 Military Russian Hybrid PETP Tone Capacitor USSR K73
• Pure Tone Black Nickel Mono output Jack with multi-contact dual tension grounds & dual positive tips for optimal signal, tone & lowest possible noise.
• All cavities have been shielded and insulated. All grounding, shielding, insulation, and pickup phasing/polarity have been well thought out and executed.

You have OPTIONS.  Just message before the sale if you want anything changed about the guitar.  (Color, pickups, hardware, new wiring/signal chain, etc.) You will be notified if the change can be made, time to complete, cost if any, and pictures provided as appropriate.  Get the guitar YOU want.  Message today!
