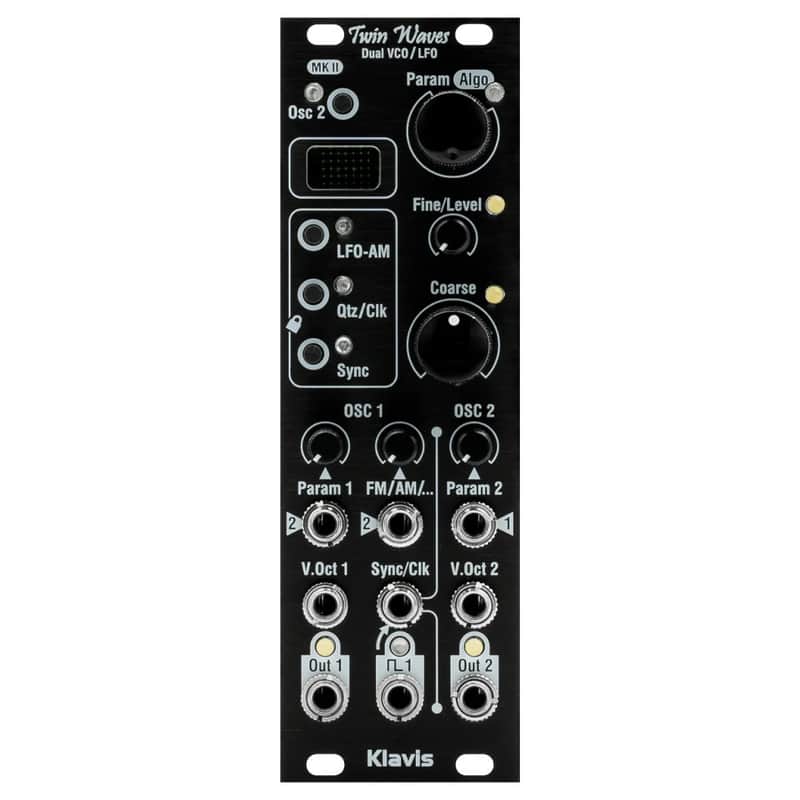

Klavis Twin Waves MK2 Eurorack Dual VCO/LFO Module (Black)

Super-powerful dual oscillator/LFO which packs an unbelievable amount of punch for its size - just look at that feature list! Now available with a black panel.

This MKII evolution brings a redesigned layout, additional knobs for more hands-on fun and semi-modular cross-patching between sections. All of the original features are present: a top selection of synthesis techniques, each with their key parameter directly at hand, enriched by a full set of complementary features. More than ever the Twin Waves is versatility at its best.

• Two oscillators independently set as VCO, LFO, or random generator
• Features in VCO mode:
• V/Oct tracking over 10 octaves with octave selection
• Linear and through-zero FM (see note below)
• Sub-octave output
• Hard & soft synchronization
• VCA control and CV algorithms selection
• Quantizer with various scales
• 20 algorithm-based synthesis types among:
• Wave shaping
• Phase modulation
• Phase positioning of multiple waves
• Up to 5 stacked oscillators in tunable unison
• Self-sync with phantom oscillator
• Additive synthesis (7 waves)
• Variable bit reduction (bit-crushing)
• Ring modulator with its own 2nd oscillator
• Noise with LPF, BPF, or resonant filter
• Features in LFO mode:
• Simultaneous signal and trigger outputs
• External wave synchronization
• Clock controlled rate with voltage controlled multiplier and divider
• CV and knob control of output level
• Algorithm based wave engine with a selection of:
• Wave shaping
• Phase modulation
• Random levels and vectors (also Brownian)
• Randomly spaced triggers and waves
• Display with contextual icons and instant reminder help text
• LEDs indicating potentiometer vs. value matching, switch settings and output signals
• Settings restored after power cycle
• Firmware update by playing an audio file via the front panel
• Eloxal printed aluminium (silver panel)
  or bath anodized brushed aluminium (black panel)
• Compact and skiff-friendly module
• User manual in English and German
