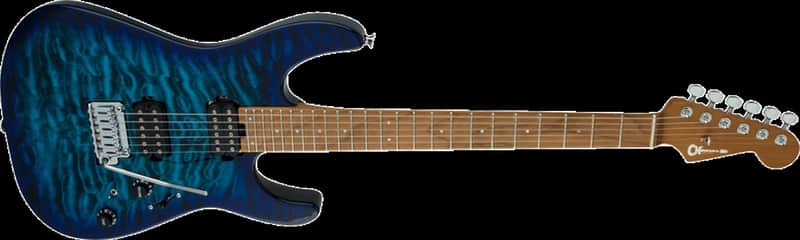

Charvel Pro-Mod DK24 HH 2PT CM  QM - Chlorine Burst

Charvel turns modern high performance on its head with the new Pro-Mod DK24 HH 2PT CM, a brazen instrument for the progressive guitarist searching for an unparalleled spectrum of sound.

Featuring a sculpted shredder’s cut heel and a scalloped lower back bout for easy upper access to the fingerboard, the alder body in the classic Dinky style is completed with an elegant quilt maple top dressed in a captivating Chlorine Burst finish.

The bolt-on caramelized maple “speed” neck has graphite reinforcement, silky-smooth hand-rubbed urethane back finish, heel-mount truss rod adjustment wheel and Luminlay side dots. Its 12”-16” compound radius caramelized maple fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech TUSQ XL nut.

Description

Brimming with versatility courtesy of the mini two-way toggle switch for series and parallel, this axe features an HH pickup configuration consisting of a direct mount Custom Seymour Duncan Full Shred SH-10B bridge pickup and direct mount Seymour Duncan Alnico II Pro APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.

Blending sophisticated style with assertive tone, the DK24 HH 2PT CM QM also offers premium modern features such as a five-way blade pickup switch, Stratocaster-style skirt knobs for the volume (with 500K EVH Bourns low-friction potentiometer) and no-load tone controls, Gotoh Custom 510 recessed tremolo bridge, locking tuners, chrome hardware and more.

Features

• ALDER BODY WITH QUILT MAPLE TOP
• BOLT-ON CARAMELIZED MAPLE NECK WITH GRAPHITE REINFORCEMENT
• SCALLOPED LOWER BOUT
• SHREDDER'S CUT HEEL
• 12"-16" COMPOUND RADIUS CARAMELIZED MAPLE FINGERBOARD
• CUSTOM SEYMOUR DUNCAN FULL SHRED SH-10B BRIDGE PICKUP AND CUSTOM SEYMOUR DUNCAN ALNICO II PRO APH-1N NECK PICKUP
• HEEL-MOUNT TRUSS ROD ADJUSTMENT WHEEL
• GOTOH CUSTOM 510 RECESSED TREMOLO BRIDGE
• 5-WAY BLADE, 500K EVH BOURNS LOW-FRICTION POTENTIOMETER VOLUME & NO-LOAD TONE CONTROLS
• A MINI TWO-WAY TOGGLE SWITCH SPLITS THE PICKUPS FOR AN EXPANDED TONAL PALETTE.
• BEVELED OUTPUT JACK
• LUMINLAY SIDE DOTS

Specs

General

• Color:  Chlorine Burst
• Country Of Origin:  MX
• Orientation:  Right-Hand
• Series:  Pro-Mod

Neck

• Fingerboard Material:  Caramelized Maple
• Fingerboard Radius:  12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Headstock:  Licensed Fender® Stratocaster®
• Neck Construction:  Bolt-On with Graphite Reinforcement
• Neck Finish:  Hand-Rubbed Urethane
• Neck Material:  Caramelized Maple
• Neck Shape:  Speed Neck with Rolled Fingerboard Edges
• Number of Frets:  24
• Nut Material:  Graph Tech® TUSQ® XL
• Nut Width:  1.6875" (42.86 mm)
• Position Inlays:  4mm Pearloid Dot
• String Nut:  Graph Tech® TUSQ® XL
• Truss Rod:  Dual-Action with Wheel
• Truss Rod Nut:  Heel-Mount Truss Rod Adjustment Wheel

Body

• Body:  Alder
• Body Finish:  Gloss
• Body Material:  Alder
• Body Shape:  Dinky™
• Body Style:  Solid Body
• Body Top:  Quilt Maple

Hardware

• Bridge:  Gotoh® Custom 510 Tremolo
• Control Knobs:  Strat®-Style Skirt
• Hardware Finish:  Chrome
• Neck Plate:  None - 4-Bolt Sculpted Heel
• Pickguard:  None
• Pickup Covers:  Flat Parchment
• Strap Buttons:  Standard
• Strings:  Nickel Plated Steel (.009-.042 Gauges)
• Switch Tip:  Parchment
• Tremolo Arm:  Gotoh®
• Tuning Machines:  Charvel®-Branded Die-Cast Locking

Electronics

• Bridge Pickup:  Seymour Duncan® Custom Full Shred™ SH-10B
• Controls:  Volume (with 500K EVH® Bourns® Low Friction Potentiometer), No-Load Tone
• Neck Pickup:  Seymour Duncan® Alnico II Pro™ APH-1N
• Pickup Configuration:  HH
• Switching5-Position Blade & 2-Way Mini Toggle: (Pos 1: Bridge Pickup, Pos 2: Both Outer Coils, Pos 3: Bridge & Neck Pickup, Pos 4: Both Inside Coils, Pos 5: Neck Pickup; 2-Way Mini Toggle Down/All Series; 2-Way Mini Toggle Up/All Parallel

Miscellaneous
Commodity Code:  9207901000
Disclaimer:  WARNING: Cancer and Reproductive Harm - .
Unique Features:  Luminlay® Side Dots

Measurements

• Dimensions:  4.50x15.20x42.00 IN
• Fret Size:  Jumbo
• Scale Length:  25.5" (648 mm)
• Shipping Height:  4.50 IN
• Shipping Length:  42.00 IN
• Shipping Weight:  10.45 LB
• Shipping Width:  15.20 IN
