Vintage Philips EF86 Mesh Pair (Holland & Brussels) – Tested

We offer a unique opportunity to acquire a functional set of two Vintage Philips EF86 Mesh Pair vacuum tubes. While many collectors hunt for matching codes, players and engineers know that the “Philips Family” sound is consistent across their premium factories. This pair combines the best of the Benelux region: the precision of Belgium and the heritage of Holland.

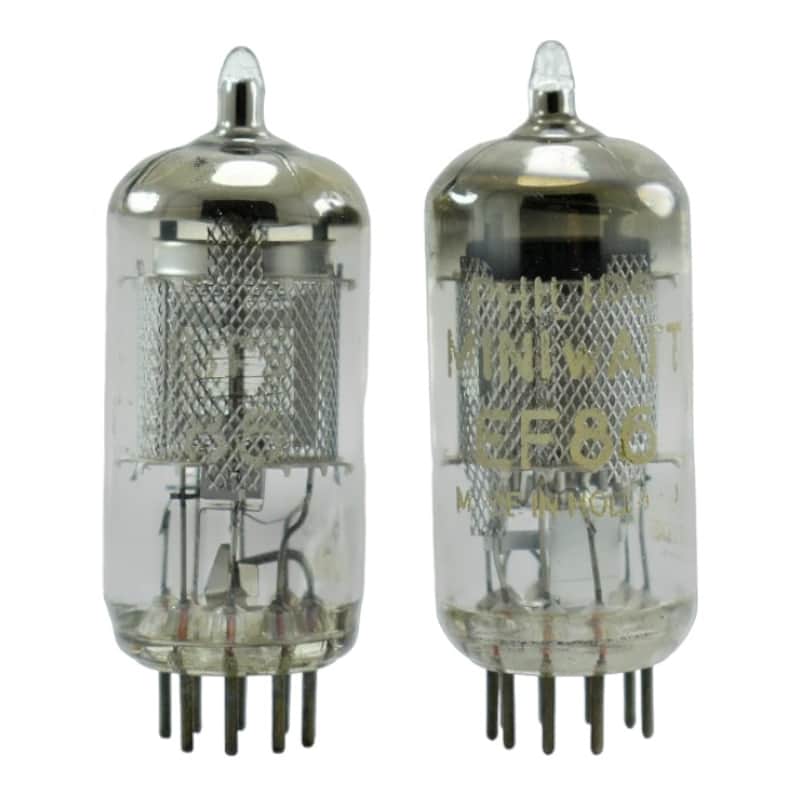

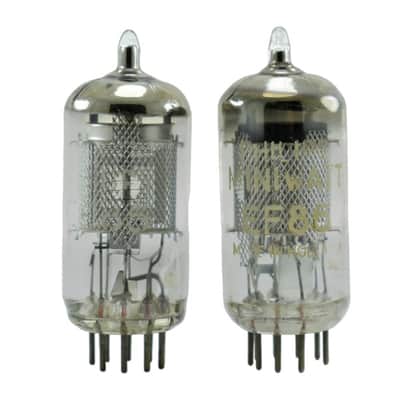

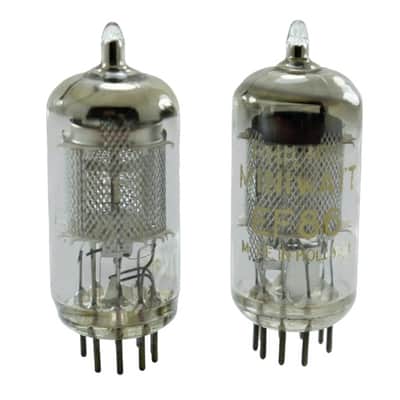

Vintage Philips EF86 Mesh Pair

The “Benelux” Connection (Code Analysis)
These tubes represent the cross-border excellence of Philips in the 1960s:

• Tube 1 (The Belgian): Features the etched code 8Y2 L914.
• • 8Y: EF86 Type.
  • L: Manufactured at the MBLE factory in Brussels (Mazda/Philips).
  • 914: Produced in the 4th week of 1959 or 1969.
• Tube 2 (The Dutch): Clearly marked “Made in Holland”. This indicates production in one of Philips’ main Dutch hubs (Heerlen or Sittard).
• Structural Match: Despite different birthplaces, both tubes share the identical Mesh Plate internal architecture. This specific design is prized for being less prone to “rattle” than solid plate tubes, making them superior for combo amplifiers.

Condition and Testing
This Vintage Philips EF86 Mesh Pair has been inspected and tested to ensure reliability.

• Aesthetics: The glass is clean, pins are straight, and the getter flash is healthy. The text on the Holland tube is clearly visible.

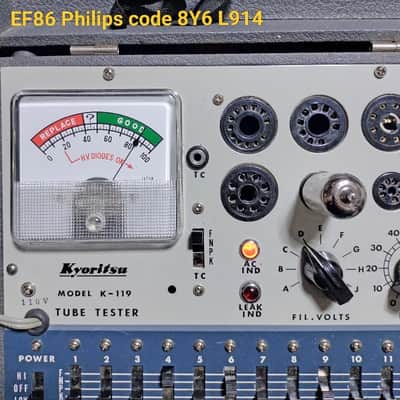

• Performance: Tested on a vintage Kyoritsu Model K-119. Both tubes show strong emission levels well into the green “GOOD” zone.
• Note: As this is a mixed-code pair, they are sold as a “Functional Pair” rather than a “Factory Matched Pair.” They are perfect for mono-block amps, separate channels, or as a high-quality main tube plus a spare.

Why Choose Mesh Plates?
The EF86 is a high-gain sensitive pentode. The wire mesh anode acts as a Faraday cage, shielding the electron stream from external electrostatic interference. This results in a lower noise floor—crucial for:

1. VOX AC15 / AC30: The EF86 channel is the secret weapon of these amps.
2. Tube Microphones: Great for DIY U67 builds.
3. Phono Stages: Where low noise is the most critical factor.

Technical Summary

• Model: EF86 / 6267 / Z729.
• Brand: Philips Miniwatt.
• Construction: Mesh Anode (Screened).
• Origin: Belgium (Code L) & Holland.
• Status: Used / Tested Strong.

Don’t miss this affordable entry into premium vintage glass. This Vintage Philips EF86 Mesh Pair delivers the authentic warm tone that modern reproductions simply cannot match.

Frequently Asked Questions (FAQ)

Q: Do these sound different because they are from different factories?
A: Ideally, no. Philips maintained extremely strict standards across all their factories (Holland, Belgium, UK). Both feature the same Mesh Plate internal construction, so the tonal character—warm, detailed, and 3D—will be consistent between them.

Q: Can I use this Vintage Philips EF86 Mesh Pair in a stereo amp?
A: Yes, they will work. However, since they are not code-matched, there might be slight differences in gain. They are absolutely perfect for guitar amps (which are mono) or as a high-quality backup set for hi-fi.

Q: Are Mesh Plate tubes fragile?
A: Actually, the mesh construction was designed to be more rigid and resistant to vibration than the long solid plates that came later. That is why they are so sought after for combo guitar amps where the speaker vibration shakes the tubes.
