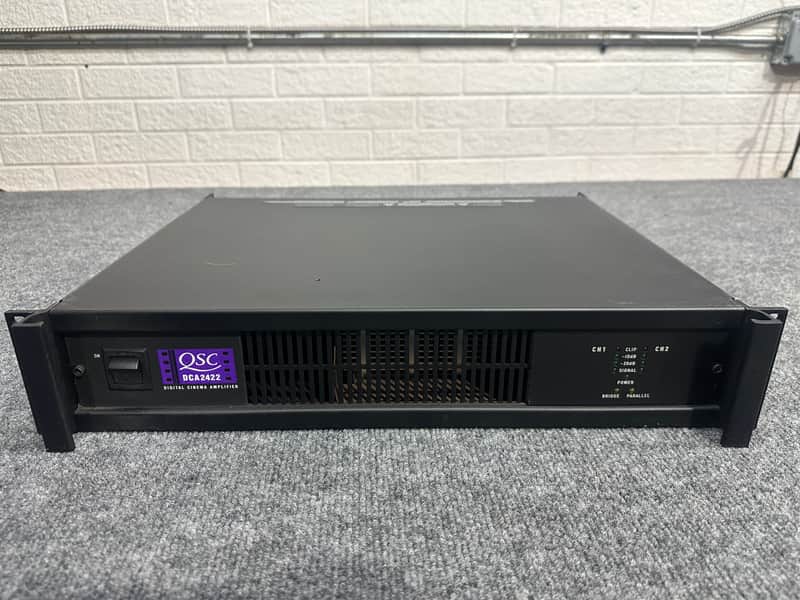

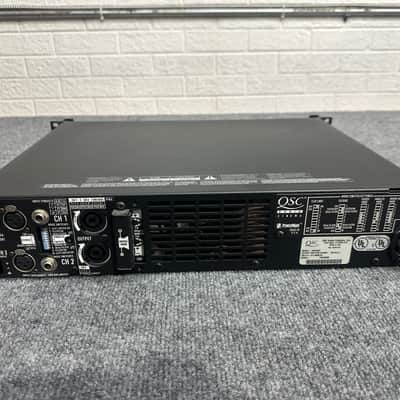

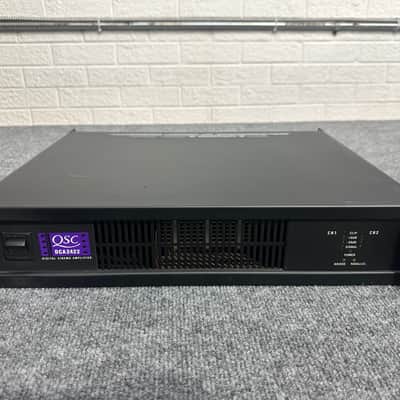

QSC DCA 2422

• Active Inrush Limiting - won't blow circuit breakers at turn-on

• Both speaker and monitor panel outputs

• Exclusive PowerLight power supply for great bass

• A hum-free noise floor and ultra-low distortion

• Only 3.5 inches high; even the most powerful systems can be built with only one rack

• DataPort interface for DCP Digital Cinema Processors and DCM Digital Cinema Monitors

• Patented Output Averaging™ short circuit protection

• 14-inch deep - works with standard depth racks for lower cost and less floor space

• Only 21 pounds, for easier racking and shipping - no need to remove amps from pre-wired systems before shipping

• Gain control security cover protects amp against tampering and misadjustment

• Variable-speed fan cooling and back-to-front air flow

• Neutrik Speakon® and safety-shrouded barrier strip output connectors

• LED indicators for metering, status, and operating mode

8Ω, 20 Hz–20 kHz, 0.03% THD = 425 W

4Ω, 20 Hz–20 kHz 0.05% THD = 700 W

EIA: 1 kHz, 1% THD @
8Ω = 475 W
4Ω = 825 W
2Ω = 1200 W

16Ω, 20 Hz–20 kHz, 0.1% THD = 850 W

8Ω, 20 Hz–20 kHz, 0.1% THD = 1500 W

4Ω, 1 kHz, 1% THD = 2400 W

Signal to Noise
20 Hz–20 kHz, unweighted = > 108 dB

Input Sensitivity
full rated power @ 8 ohms = 1.5 V rms
+5.5 dBu

Input Sensitivity
full rated power @ 4 ohms = 1.3 V rms
+4.6 dBu

Output Circuitry Class Type = 2-Step H
