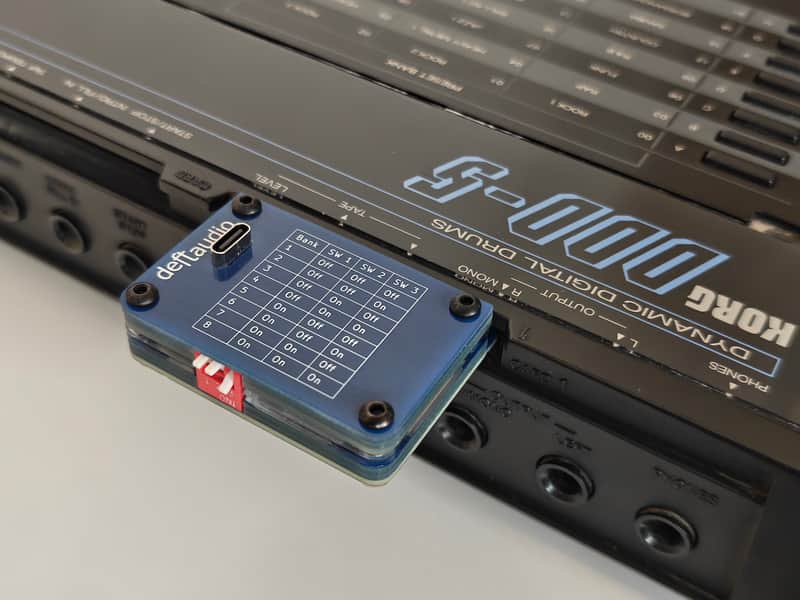

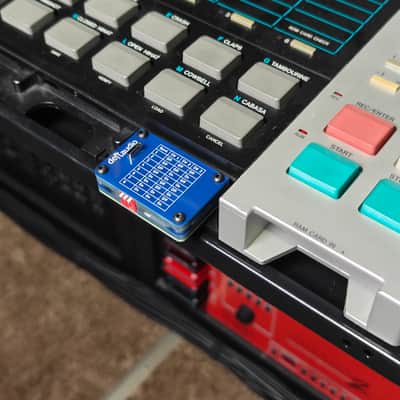

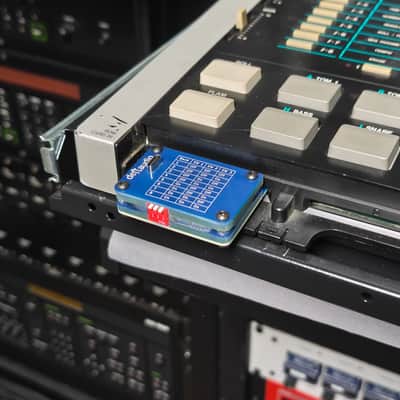

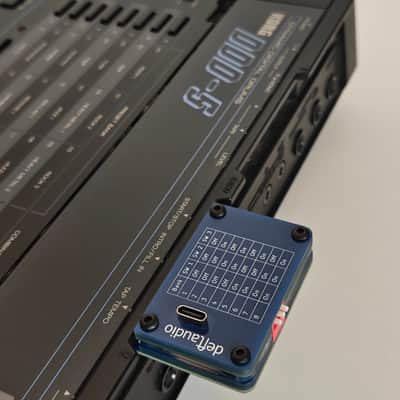

Deftaudio Programmable PCM card for Korg DDD-1 / DDD-5

Bring new life, flexibility, and creative range to your Korg DDD-1, DDD-5, and DRM with the Deftaudio PCM Custom Card, a fully programmable, multi-bank PCM expansion designed for musicians, sound designers, and vintage gear enthusiasts.

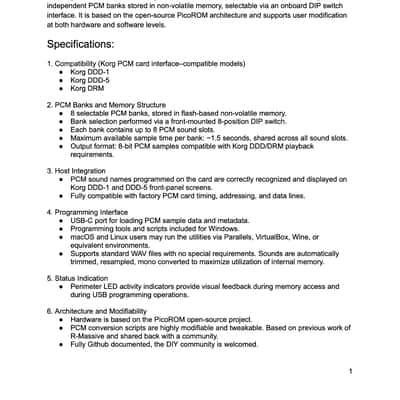

8 Banks of Instantly Switchable Sounds

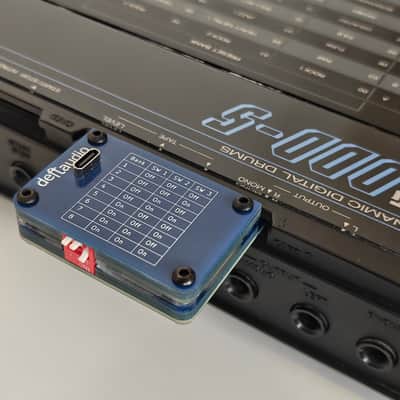

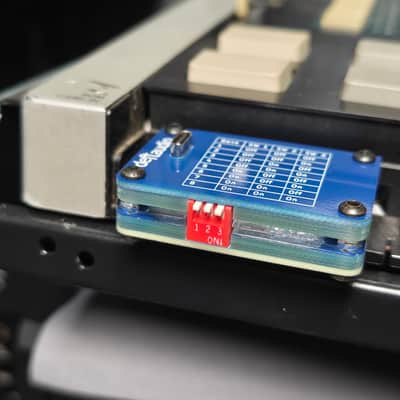

• The card stores up to 8 PCM banks in non-volatile memory, each selectable via the front-mounted DIP switch panel for fast hands-on switching during sessions or performance.
• Each bank provides up to 8 sound slots with roughly 1.5 seconds of shared sample time, ideal for drum hits, percussive textures, stabs, and short FX.

Seamless Integration with Korg DDD-1/DDD-5 OS

• All sound names are properly recognized and displayed on the DDD-1/5 screen, making this user-friendly PCM upgrade available.

USB-C Programmable

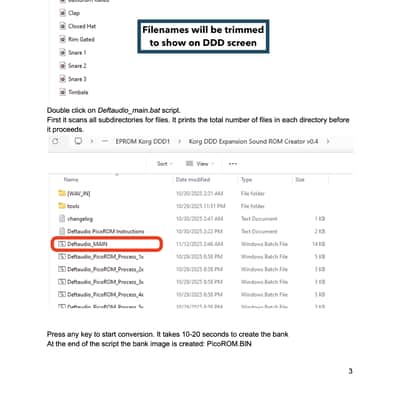

• Load your own samples using the built-in USB-C interface.
• Only Windows companion scripts are included for fully automated import; macOS and Linux users can run them via Parallels, VirtualBox, Fusion or similar VM environments.

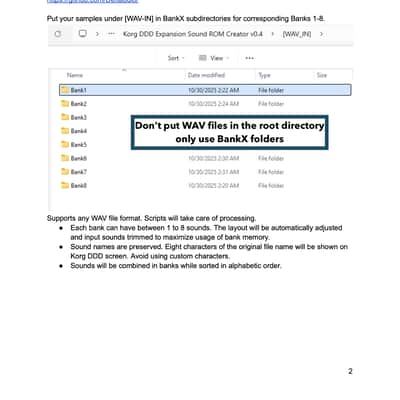

• Supports standard WAV files with no special requirements. Sounds are automatically trimmed, resampled, mono converted to maximize utilization of internal memory.

Visual Feedback While You Work

• A perimeter LED indicator provides clear visual activity cues while accessing or programming the card, it adds a vintage gear aesthetics.

Open Source & Fully Hackable

• Based on PicoROM open-source project, the Deftaudio PCM Custom Card is highly modifiable for developers and power users who want to customize behavior, storage layouts, or even firmware.
• PCM conversion scripts are highly modifiable and tweak-able. Based on previous work of R-Massive and shared back with a community.
• Fully Github documented (search for deftaudio), DIY community is welcomed.

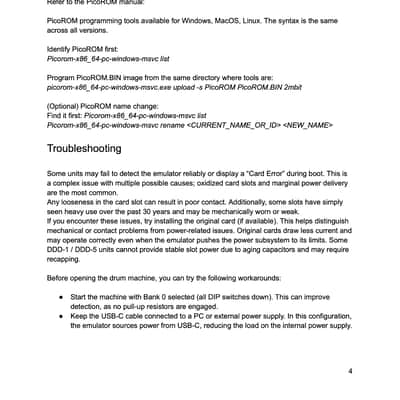

Troubleshooting

Some units may fail to detect the emulator reliably or display a “Card Error” during boot. This is a complex issue with multiple possible causes; oxidized card slots and marginal power delivery are the most common.

Any looseness in the card slot can result in poor contact. Additionally, some slots have simply seen heavy use over the past 30 years and may be mechanically worn or weak.

If you encounter these issues, try installing the original card (if available). This helps distinguish mechanical or contact problems from power-related issues. Original cards draw less current and may operate correctly even when the emulator pushes the power subsystem to its limits. Some DDD-1 / DDD-5 units cannot provide stable slot power due to aging capacitors and may require recapping.

Before opening the drum machine, you can try the following workarounds:

• Start the machine with Bank 0 selected (all DIP switches down). This can improve detection, as no pull-up resistors are engaged.
• Keep the USB-C cable connected to a PC or external power supply. In this configuration, the emulator sources power from USB-C, reducing the load on the internal power supply.
