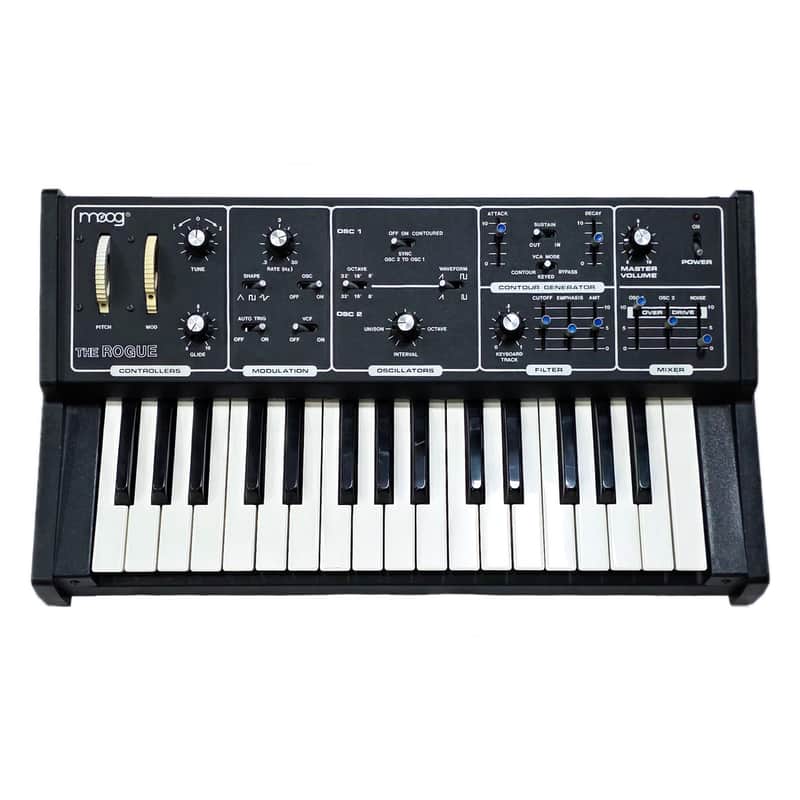

MOOG THE ROGUE! RAD VINTAGE EARLY 80S SYNTH BASS!! AMAZING CONDITION!! AS USED BY Peter Gabriel, Add N To (X), 808 State, Stereolab, Mr. Oizo and KMFDM.

The Moog Rogue could be the very definition of Moog bass. It's a two-oscillator analog monosynth from Moog that, while having genuine and highly desirable Moog componentry, its design make this Moog's most compact offering of its time.

Incidentally the Rogue is also utilized as the Moog Taurus II Bass Synth with 1-1/2 octave bass pedals instead of the Rogue's 2-1/2 octave keyboard.

The Rogue could be considered a scaled down version of the Prodigy (which was itself a scaled down Minimoog) offering fewer synthesis options and flexibility. Two waveforms per oscillator (saw and square/rectangle). Single envelope generator that is shared by both the Filter and the Loudness Amp, offering Attack, Release and a switchable Sustain mode (OFF, HALF, FULL). The Rogue has a decent Moog filter with an external audio input.

Overview two-oscillator analog monosynth 32 keys (F-C with glide option) from famous Moog company USA, a successor to the Moog Prodigy.
Also 2 wheels for bending and modulation LFO.

Oscillator 2 VCO syncable (OSC2>OSC1) structure:
OSC 1: Pitch: 32', 16', 8'; Wave: Sawtooth, Rectangle.
OSC 2: Pitch: 32', 16', 8'; Wave: Sawtooth, Square, can be detuned , or special interval mode.
Mixer section allows to mix OSC + a noise generator

FILTER a powerful 24dB/oct lowpass with cutoff, emphasis, and envelop amount, tracking generator.

ENVELOPE  single 2-stages attack decay sliders, single fixed switch for extra sustain.

LFO single modulator frequency from 0,3 to 30 Hz with 4 shapes: Saw Up, Saw Down, Square, Triangle. Destinations are Pitch and Cutoff.

POWER REQUIREMENTS        Operating Voltage Input to  24 volts AC nominal, 28 volts  Instrument  AC maximum; 50-60 Hertz      Power Consumption 6 watts      CONTROLLERS        Keyboard  32 note ( F to C)      GLIDE control  Linear, continuously variable    from 5 msec to 2.3 sec  TUNE Control      +/- 3 semitones  MODULATION RATE    Control  .3Hz to 31Hz      MODULATION SHAPE  Triangle, Square or Sample  Switch  and Hold      OSC MODULATION Amount  Zero to 18 semitones      VFC MODULATION  Zero to 4 octaves  Amount        PITCH WHEEL Range +/- 7 semitones      OSCILLATORS        Reference frequency for Low F    (Octave = 32')        OSC 1  43.65Hz  OSC 2  43.65Hz      WAVEFORMS    OSC 1  Sawtooth and 50% duty    cycle; Square wave  OSC 2  Sawtooth and 85% duty    cycle; Pulse wave  OCTAVES        OSC 1 and OSC 2  32', 16', 8'      SYNC OSC 2 TO OSC 1, ON  Locks the fundamental fre-    quency of OSC 2 to OSC 1;    INTERVAL control sweeps    OSC 2 four octaves          SYNC OSC 2 TO OSC 1,  Locks the fundamental fre-                   CONTOURED  quency of OSC 2 to OSC 1;    Contour envelope sweeps    OSC 2 through the CON-    TOUR AMT Control (four    octaves)      OSC 2 INTERVAL Control  1 6 semitones      CONTOUR GENERATOR       ATTACK Time    Minimum  4 milliseconds  Maximum  6 seconds      DIMENSIONS 53cm X 32cm x 13cm     WEIGHT 5kg (11pound)
