Tannoy Dual 6" In-Wall Subwoofer 160W 4 Ohm/8 Ohm – iW 62S-WH

Overview

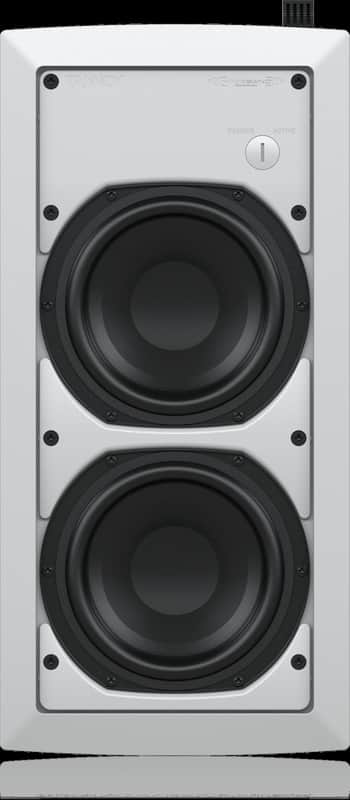

The Tannoy iW 62S-WH is a high-performance in-wall subwoofer designed to provide deep, punchy bass reinforcement for multi-zone music and AV systems. Occupying the same footprint as the full-range iW 62DS, this passive subwoofer features dual 6-inch (150mm) long-throw bass drivers with multi-fiber paper pulp cones. Capable of handling 160W continuous and an impressive 640W peak power, it delivers exceptional transient response and low-frequency impact, making it an excellent choice for home theaters, boardrooms, and retail environments where floor space is at a premium.

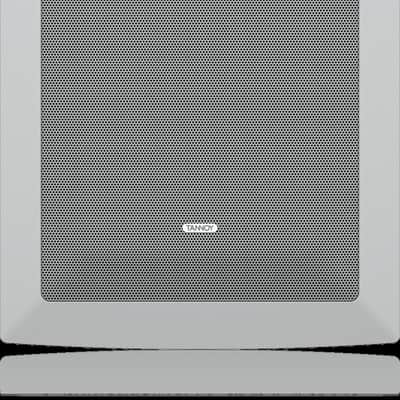

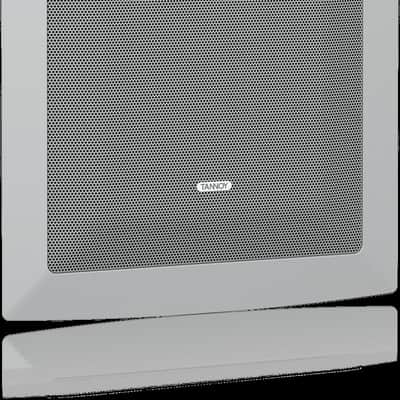

Engineered for versatility and ease of installation, the iW 62S-WH offers flexible connectivity options. It can be wired in mono (4 Ohms) or stereo (8 Ohms per driver) and features a front-baffle switch to toggle between passive operation (using the internal 110Hz low-pass crossover) and active mode for use with external processing. The unit is housed in a robust, UV-resistant ABS baffle with a semi-matte white, paintable grille that allows it to blend seamlessly into any décor. Installation is simple and secure thanks to a unique self-aligning clamping mechanism that grips standard stud partition walls firmly.

Features

• Dual Bass Drivers – Twin 6-inch long-throw drivers deliver powerful, articulate bass from a compact in-wall enclosure.
• High Power Handling – Rated for 160W continuous and 640W peak power to ensure dynamic performance without distortion.
• Versatile Connectivity – Configurable for 4 Ohm mono or 8 Ohm stereo operation to match various amplifier setups.
• Selectable Modes – Switchable between Passive (internal crossover) and Active operation for custom system tuning.
• Discreet Design – Features a low-profile, paintable white grille and baffle to match any wall color or room aesthetics.

Specifications

• Brand: Tannoy
• Model: iW 62S-WH
• Type: Passive In-Wall Subwoofer
• Driver Size: 2 x 6 inches
• Impedance: 4 Ohm (Mono) / 8 Ohm (Stereo)
• Power Handling: 160 Watts Continuous / 640 Watts Peak
• Frequency Response: 29 Hz – 110 Hz (-10 dB)
• Crossover Frequency: 110 Hz (Passive)
• Cutout Dimensions: 16.78 x 7.39 inches
• Mounting Depth: 3.76 inches
• Overall Dimensions: 18.68 x 8.94 inches
• Weight: 14.3 lbs
