Overview

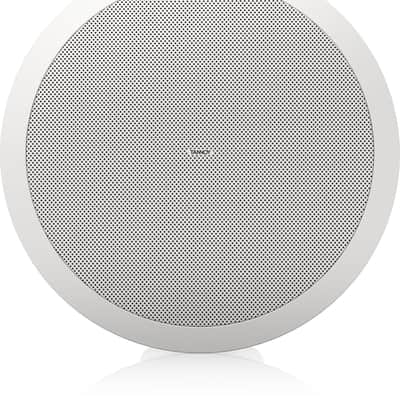

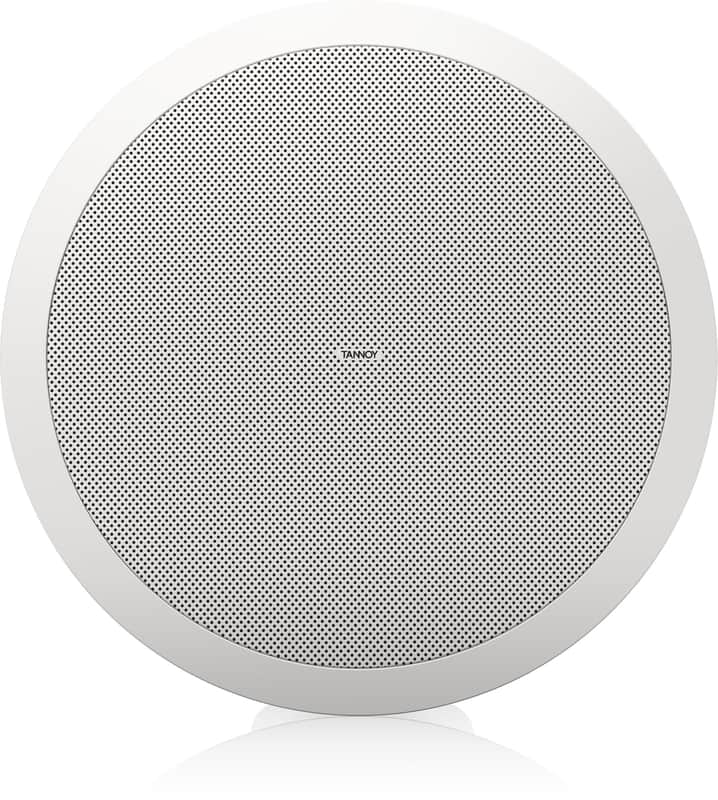

The Tannoy CVS 801S is an 8-inch in-ceiling subwoofer designed to provide extended low-frequency reinforcement for background and foreground music systems. Engineered for commercial applications such as restaurants, hotels, and retail spaces, this subwoofer features a long-excursion polypropylene driver with a butyl rubber surround. It is capable of handling 100W continuous and 400W peak power, delivering deep, punchy bass without the need for an external crossover thanks to its acoustic low-pass baffle design.

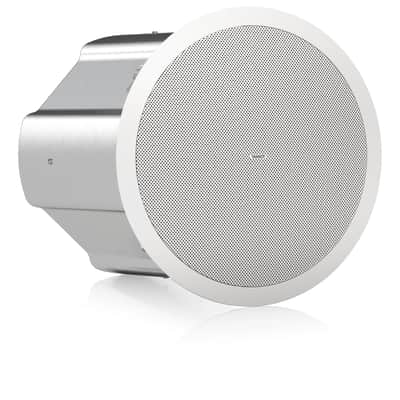

Built for professional installation, the CVS 801S is housed in a UV- and weather-resistant ABS baffle with a durable zinc-plated steel back can. It carries UL 1480 certification for fire-protected signaling systems and UL 2043 certification for air-handling spaces (plenum rating). The speaker offers flexible connectivity with a low-insertion-loss transformer for 70V/100V distributed lines or a standard 8-ohm direct input, allowing it to integrate seamlessly into a wide variety of audio configurations.
Features
- Deep Bass Extension – 8-inch long-excursion driver delivers powerful low-end support to effortlessly complement existing ceiling speaker systems.
- Safety Certified – UL 1480 certified for fire signaling and UL 2043 rated for safe installation in air-handling (plenum) spaces.
- Versatile Operation – Switchable between 8 Ohm (100W RMS) and 70V/100V transformer taps (80W, 40W, 20W, 10W) for diverse system needs.
- Durable Construction – Features a weather-resistant ABS front, plated steel fire can, and a powder-coated aluminum grille.
- Easy Installation – Includes a C-ring and tile bridge kit for secure mounting, along with a strain relief clamping mechanism for fire-rated cabling.
Specifications
- Brand: Tannoy
- Model: CVS 801S (CVS801SWHITE)
- Size: 8 inches
- Impedance: 8 Ohm (Nominal)
- Power Handling: 100 Watts Continuous / 400 Watts Peak
- Frequency Response: 53 Hz – 200 Hz (-10 dB)
- Transformer Taps: 70V (80W, 40W, 20W, 10W) / 100V (80W, 40W, 20W)
- Material: Polypropylene Cone, ABS Baffle, Steel Back Can
- Cutout Diameter: 10.75 inches
- Mounting Depth: 12.5 inches
- Weight: 17.5 lbs
