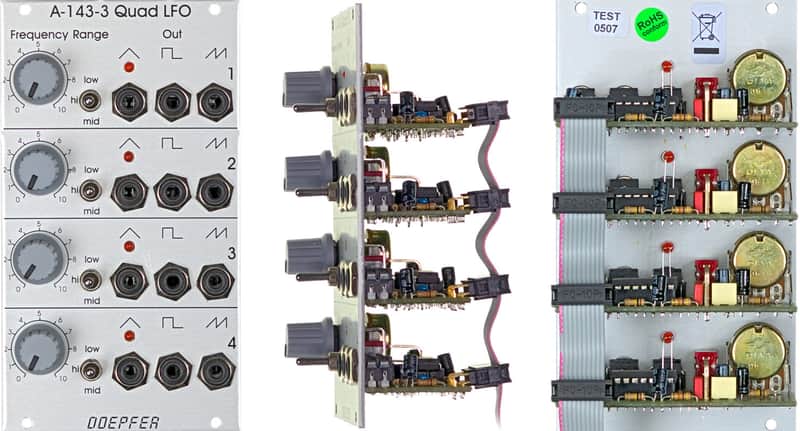

Module A-143-3 is a low-cost four-fold modulation oscillator, often called LFO (low frequency oscillator). Like the other modules of the A-143 series ( and ) not a very "exciting" module, just a bread-and-butter device and a simple demon for work. The module contains four simple LFOs. Each LFO is equipped with three waveform outputs: triangle, rectangle and rising sawtooth. The frequency of the sawtooth output is twice the frequency of the other outputs. A three-way switch is used to select one of three frequency ranges mid-low-high, spanning from about two cycles per minute at the lowest, to moderate audio frequency at the highest (about 5 kHz).

If other waveforms or additional LFO features are required (e.g. reset input, adjustable waveform, voltage controlled frequency) the LFO modules ,  and are available.

A detailed description of the module can be found in the user's manual

As we have not sufficient module numbers left, all multiple modulation sources will be collected in the A-143-x group (A-143-1 Quad AD, A-143-2 Quad ADSR, A-143-3 Quad LFO and so on)

Breite/Width: 14TE / 14HP / 70.8 mm
Tiefe/Depth: 40 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: 70 mA
