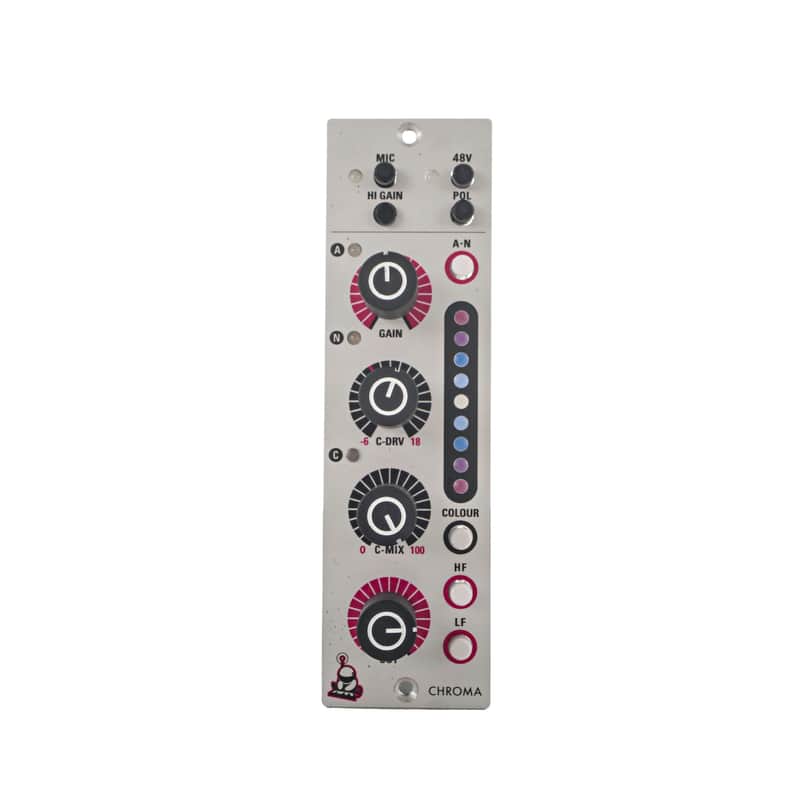

Louder Than Liftoff Chroma 500 Series Twin Amp

Short Description:

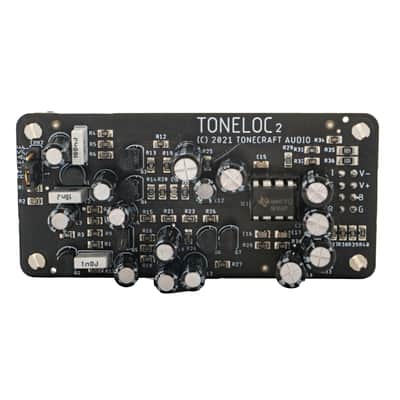

500 series pre amp and bus processor with Pentode Mk2 and Tone Loc Color Modules. In Used, Excellent condition

What We Think:

These rare and Discontinued EQ's have quite a cult following. They're great for filtering purposes and quickly shaping tracks in a mix. These came in as 4 identical units, so talk to your Salesperson if you would like to pick up a pair.

Manufacturer Description:

Chroma is the world's first 500 series audio processor with Twin Tone-Amp architecture and the ability to accept real analog plugins for expanding its feature set. Answering the call for a single channel Silver Bullet, Chroma delivers with its twin topology (A or N) line processor and mic amp, but adds an exciting twist - an analog plugin slot accepting Colour Modules. This feature allows additional processing and effects to be inserted into the signal path and mixed with Chroma's classic 'A' or 'N' inspired MOJO Amps.

BUS PROCESSOR & MIC PREAMP IN ONE

CHROMA was designed with hybrid workflows in mind just like its big brother, the Silver Bullet.  These days gear needs to be versatile on both the front endandthe back end.  Featuring MIX and MIC modes, Chroma is both a line level processor, and a microphone preamp.

TWIN TONE-AMP™ ARCHITECTURE

At the heart of CHROMA are two Mojo Amps inspired by classic large format consoles – American (A), and British (N).  These Mojo Amps lend their characteristic sonic footprints to any signal passing through the circuit.  Like the Silver Bullet, CHROMA is the only processor of its kind that allows you to enable A or N sonics at the push of a button.  Auditioning these two signature sounds during a session no longer requires re-patching or swapping preamps.

TONE SHAPING

Having the ability to shape tone with broad strokes can be just what the doctor ordered to get your tracks to pop in a mix. To round out the feature set, Chroma features switchable Baxandall High Frequency (HF) and Low Frequency (LF) EQ boosts derived from drBill’s favorite Silver Bullet settings for sweetening and enhancing individual tracks or mixes.  The user can select PRESENCE or AIR, and SUB or BASS frequencies via onboard jumpers.  The HF switch can be programmed to add the Silver Bullet’s VINTAGE filter as well.

CONSOLE-LIKE SIGNAL FLOW

Select your input source - Mic or Mix.  Choose A or N MOJO.  Apply some sweet sounding saturation, compression, filtering or tone shaping.

CUSTOMIZE CHROMA WITH ANALOG PLUGINS

Power down your 500 series rack, remove the CHROMA module, install the Colour Modules of your choice, and re-install.

Specifications:

• Mic or Mix/Line mode
• 48V phantom power
• Polarity reverse
• Mix/Line Gain: 0 to +26 dB, +26 to +52 dB (High Gain mode)
• Mic Gain: +8 to +34 dB, +34 to +60 dB (High Gain mode)
• Colour Drive: -6 to +18 dB
• Colour Mix: crossfade blend of processed and dry signal
• Baxandall Tone boost EQ
• LF (+3 dB): Pultec-inspired Subsonic (30 Hz) and Bass (60 Hz) frequencies
• HF (+4 dB): Presence and Air frequencies
• Vintage: softens high frequency response to emulate vintage British consoles
• Custom American made transformers

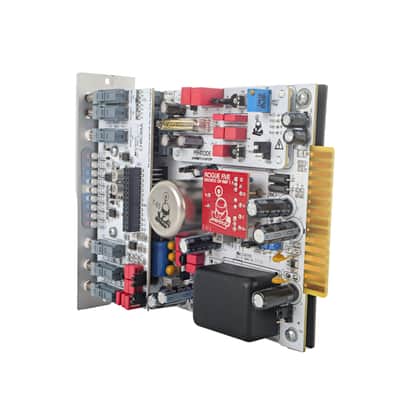

• ROGUE FIVE discrete op amps designed by Louder Than Liftoff, conforming to standard 2520 footprint
• Signal present indicator and bi-directional meter
• All circuit components chosen by ear for maximum MOJO

Made by tone geeks for tone geeks. Designed and assembled in Silicon Valley, California.
