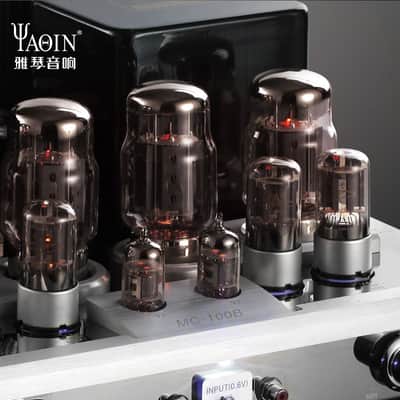

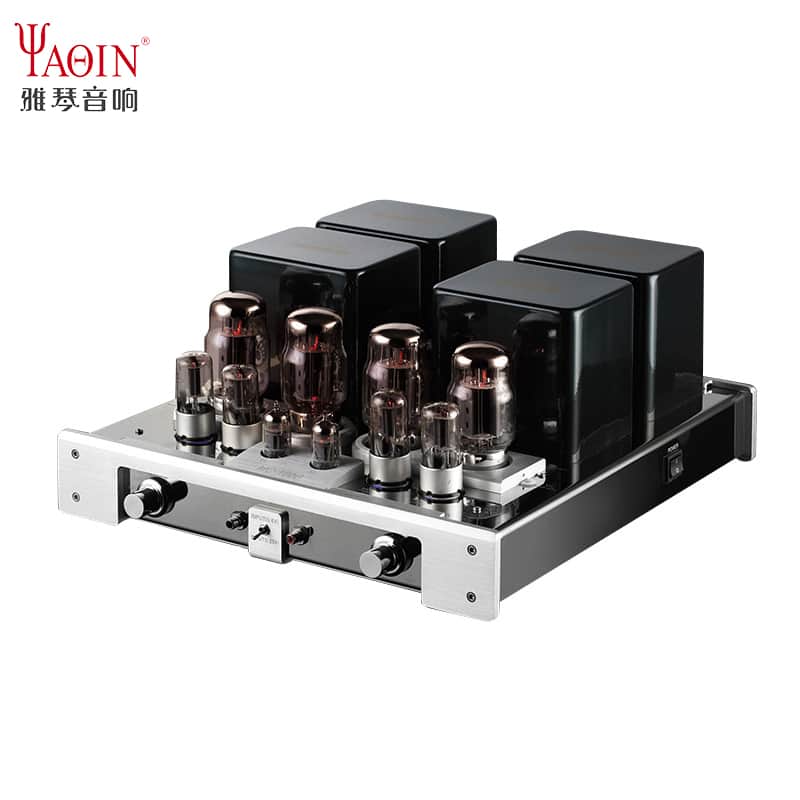

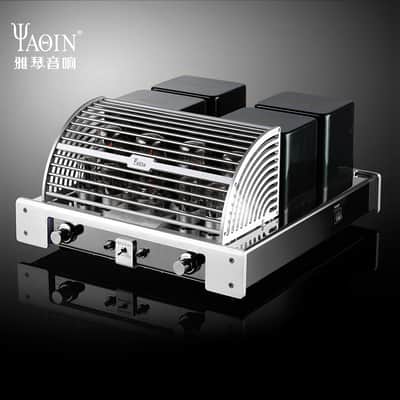

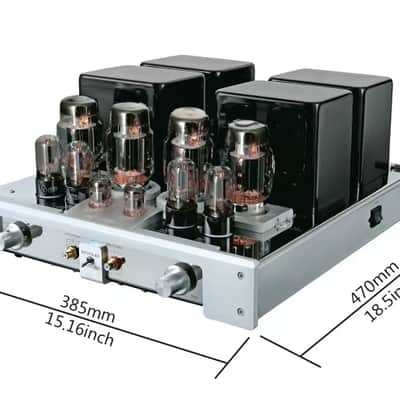

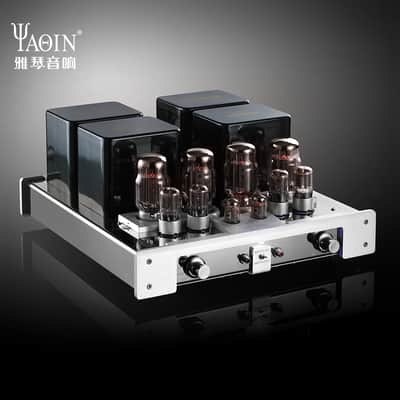

YAQIN MC-100B Class A Push Pull Integrated Tube Amplifier, Power Amplifier, Output Power 50Wx2 / 25Wx2, KT88 Tubes, AC115 or AC 230 2025 - silver

• Two Selectable Working Modes: Ultra Linear Mode and Triode Mode. Ultra Linear mode delivers great output power and Triode models does smooth and ample music.
• An Integrated tube amplifier or a Power Amplifier: this Yaqin mc100b can work as an integrated tube amplifier which includes pre stage and post stage. It also can work as a dual mono power amplifier to drive the speakers.
• The Exemplary Workmanship and Quality : all the resistors or capacitors are in audiophile level ,;the power transformers are made from Japanese silicon steel sheet and oxygen -free enameled copper and good lacquer, these transformers provide a very wide dynamic range at full output..
• Perfect Design : Push -pull circuit can get the distortion reduced effectively, independent output transformer for each channel provide best isolation and gets the details of the sound fully delivered, well-made and beautiful chassis : anodized aluminium front and back panel, stainless chassis chassis, plated steel button , and beautiful anodized aluminium tube cage.
• Tubes :2AX7B*2 and 6N8P ×*4 are for signal amplification and phase inversion,kt88 tube *4 delivers high output power, low distortion and high efficiency.

A stunning amplifier : the sound and the workmanship are exemplary.

Technical Specifications:
Tubes: KT88-98 × 4 (Output Tubes)
6N8P × 4 (Drivers and Cathode followers)
12AX7B × 2 (Voltage amplifiers)
Maximum Output:
20W per channel (8Ω and Triode Mode)
50W per channel (8Ω and Ultra linear Mode)
Output Jacks: Two channels with two groups gold plated jacks
Output Impedance: 4Ω and 8Ω
Input Jacks: Gold plated isolated RCA jacks, 4 groups (CD, DVD, Tape, and Tuner) on rear, and 1 group on front as the input of post-stage mode
Input Sensitivity:
0.25V in integrated mode (CD, DVD, and Tuner)
0.6V in pure post-stage mode (Front input connectors)
Distortion of Harmonic Wave: ≤1.5%
Frequency Response: 5Hz ~ 80KHz (-2dB
Signal-to-Noise Ratio: 90dB (A weight)
Supply Voltage: AC 115V, 60Hz
Power Consumption: 250W
Net Weight: 23kg
Shipping Weight: 30kg
Shipping Dimension: 60cm x 52cm x 36cm

What are included in the package?
- A YAQIN MC-100B unit
- A Power cable
- A Manual
- Hex screw drivers to mount the cover cage and to adjust bias
