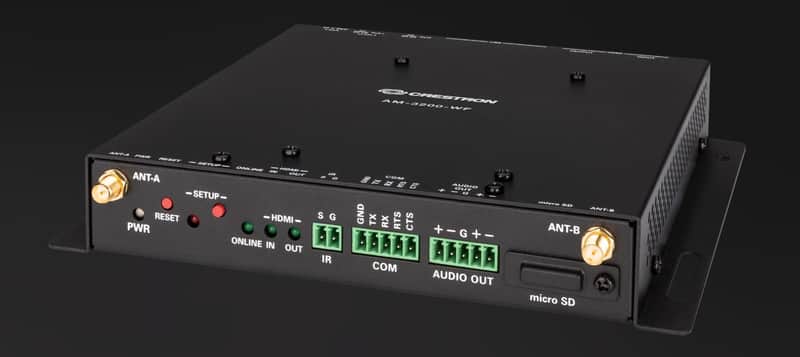

Crestron AM-3200-WF AirMedia® Series 3 Receiver 200 with Wi-Fi® Network Connectivity

AM-3200-WF AirMedia® Receiver 3200 with Wi‑Fi® Network Connectivity

Save on this OPEN BOX - near mint item! Compare to regular retail price of $1518.00

We ask you to look at our pictures and invite you to reach out with any questions.

The AirMedia® Receiver 3200 (AM‑3200‑WF) enables secure wireless collaboration in the modern digital workspace. Easy to deploy and manage, install the Receiver in conference rooms, huddle rooms, lounges, lobbies, or almost any space to establish a productive meeting environment.

SpecificationsCommunications

Ethernet:
100/1000 Mbps, auto-switching, autonegotiating, autodiscovery, full/half duplex; TCP/IP, UDP/IP, DHCP, SSL, TLS5, SSH, SFTP, IEEE 802.1x, Active Directory authentication; HTTPS web setup & XiO Cloud service; 802.3af compliant

Wi-Fi:
Dual-band 802.11a/b/g/n/ac/ax (2.4 GHz & 5 GHz); up to 100 ft (30 m) range at 80 Mbps (site-dependent)

Bluetooth:
Version 5.0

AirMedia:
• Via Ethernet: IPv4, mDNS, TLS, AES
• Via wireless AP: 802.11b/g/n/ac/ax (2.4/5 GHz)

USB Host:
USB 2.0 & USB 3.0 for USB conferencing peripherals

USB Device:
USB 3.0 for computer console (installer setup & firmware updates)

RS-232:
2-way control up to 115.2k baud; hardware/software handshaking

IR/Serial:
1-way IR up to 1.1 MHz or serial TTL/RS-232 (0–5V) up to 19.2k baud

HDMI Input:
HDCP 1.4, EDID; full HDCP/EDID management

HDMI Output:
HDCP 2.2, EDID, CEC; full HDCP/EDID management

Video

Input Signal Types:
AirMedia, HDMI (DVI & Dual-Mode DisplayPort compatible)
Supports simultaneous display of up to four sources via AirMedia Canvas

Max Input Resolutions:
• HDMI: 1920×1080 @ 60Hz
• AirMedia: 1920×1080 @ 30Hz
• AirMedia Connect Adapter: 3840×2160 @ 30Hz

Other resolutions supported up to 148 MHz pixel clock; interlaced formats not supported. All inputs scale to selected HDMI output resolution.

Output Signal Type:
HDMI (DVI compatible)

HDMI Output Resolutions:
720p50/60, 1280×800@60, 1366×768@60, 1440×900@60, 1600×900@60, 1600×1200@60, 1680×1050@60, 1080p50/60, 2160p30/50/60

Background/Logo Support:
JPEG, PNG

Audio

Input Types:
AirMedia, HDMI (Dual-Mode DisplayPort compatible)

Output Type:
HDMI

Format:
2-channel LPCM (passed through, unprocessed)
Volume control requires supported display via CEC, IP, IR, or RS-232

AirMedia Software

OS Support:
iOS, Android, Windows 10/11, macOS, Chrome OS

Frame Rate:
Up to 30 fps with audio

Output Resolutions:
480p to 1080p60 (scaled to HDMI output resolution)

Bitrate:
0.25–8.5 Mbps peak; 1.4 Mbps typical
Performance may vary depending on OS, browser, or content.

Audio Format:
Stereo

Wireless Conferencing

OS Support:
• AirMedia Application: Windows 10/11
• AirMedia Connect Adapter: Windows 10/11, macOS 11+

Supported Conferencing Services:
Microsoft Teams, Zoom

Supported Peripherals:
Refer to OLH 1001764

Connectors

ANT-A & ANT-B:
(2) SMA connectors for external Wi-Fi antennas (6.56 ft cables included)

IR:
(1) 2-pin 3.5 mm terminal block; IR/Serial output; IR up to 1.1 MHz; TTL/RS-232 up to 19.2k baud

COM:
(1) 5-pin 3.5 mm terminal block; RS-232 control; up to 115.2k baud

AUDIO OUT:
(1) 5-pin terminal block; balanced/unbalanced line-level; 4 Vrms (bal.), 2 Vrms (unbal.); 200 Ω/100 Ω impedance

microSD:
For digital signage caching

HDMI INPUT:
(1) Type A; HDMI A/V input (DVI & Dual-Mode DisplayPort compatible)

HDMI OUTPUT:
(1) Type A; HDMI A/V output (DVI compatible)

USB:
(2) USB-A (USB 2.0 & USB 3.0 host)
(1) USB-B (USB 3.0 device)

LAN PoE+:
(1) RJ-45; 100/1000 Mbps; PoE+ Class 4

LAN AUX:
(1) RJ-45; 100/1000 Mbps; guest-only secondary network

24VDC:
(1) 2.1×5.5 mm DC jack; accepts PW-2412WU (sold separately)

Controls and Indicators

• PWR: Green LED (power)
• RESET: Hardware reset button
• SETUP: Button for onscreen IP/pairing; red/white LED status
• ONLINE: Green LED (control system link)
• HDMI IN/OUT: Green LEDs (signal presence)
• microSD: Slot
• LAN PoE+/AUX: Link/Activity LEDs (green/amber)

Power

Power over Ethernet:
IEEE 802.3af Class 4 PD

Optional Power Pack:
PW-2412WU (24VDC, 1.25A; 100–240VAC input)

Consumption:
14 W typical
PoE+ or power pack required for wireless conferencing

Environmental

Temperature:
32°–104°F (0°–40°C)

Humidity:
10%–90% (non-condensing)

Heat Dissipation:
47.8 BTU/hr

Construction

Chassis:
Black metal, vented, integrated mounting flanges

Mounting:
Freestanding, surface mount, or single rack rail

Dimensions

Height: 1.26 in (33 mm)
Width: 7.40 in (188 mm)
Depth: 6.93 in (177 mm)

Weight

1.9 lb (0.86 kg)

Compliance

Regulatory Model: M202011001
Intertek Listed (US/Canada), CE, IC, FCC Part 15 Class B
