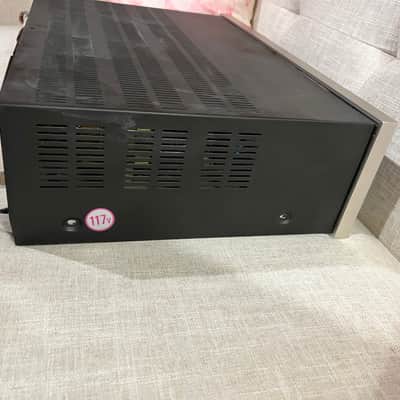

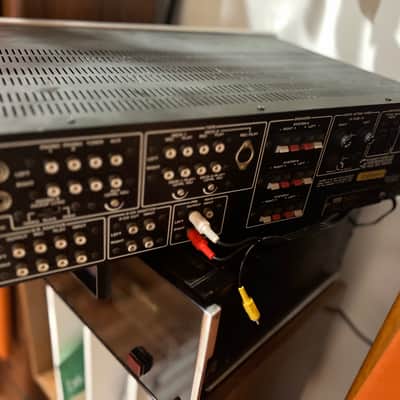

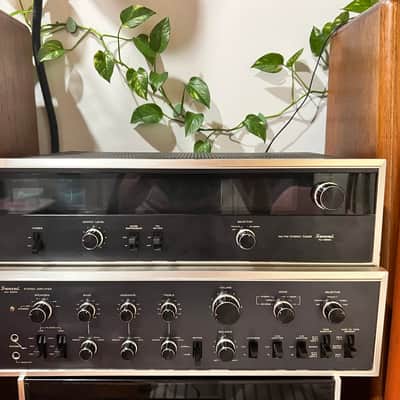

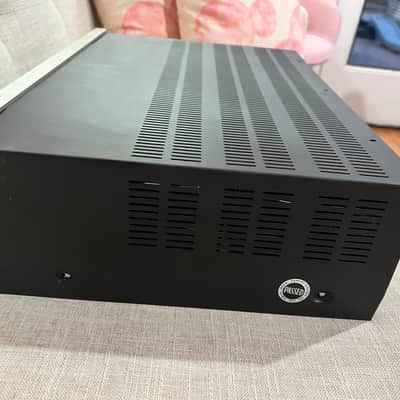

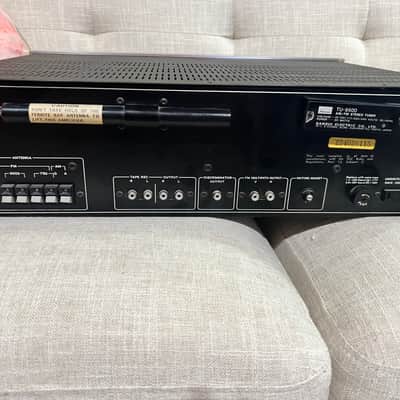

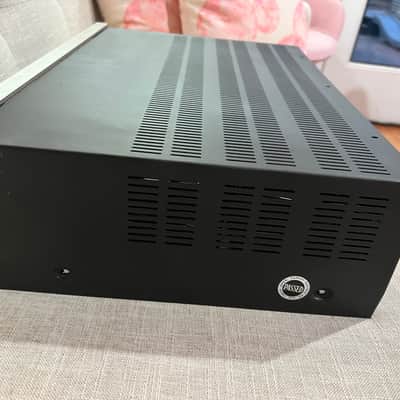

Sansui AU-9500 and TU-9500 stereo set
This seller has not set a shipping cost for Hungary. Please contact them to ask about shipping.
Our users rate Reverb
pricing includes both Sansui AU-9500 amplifier and Sansui TU-9500 stereo tuner to complete the set
Both tested and working
AU-9500 Specifications
Power output: 75 watts per channel into 8Ω (stereo)
Frequency response: 15Hz to 40kHz
Total harmonic distortion: 0.1%
Damping factor: 50
Input sensitivity: 2.5mV (mic), 2.5mV (MM), 100mV (DIN), 100mV (line)
Signal to noise ratio: 65dB (mic), 75dB (MM), 85dB (line)
Output: 100mV (line), 30mV (DIN), 0.8V (Pre out)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 140 x 500 x 347mm
Weight: 23.3kg
TU-9500 Specifications
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
FM Tuning Range: 88 to 108 MHz
MW Tuning Range: 535 to 1605 kHz
Sensitivity: 1.7uV (FM)
Signal to Noise Ratio: 75dB (FM)
Distortion: 0.3% (FM)
Selectivity: 80dB (FM), 25dB (MW)
Frequency response: 30Hz to 15kHz (FM)
Output: 1000mV
Semiconductors: 44 x transistors, 5 x FET, 28 x diodes, 3 x IC
Dimensions: 500 x 347 x 140mm
Weight: 9.5kg
