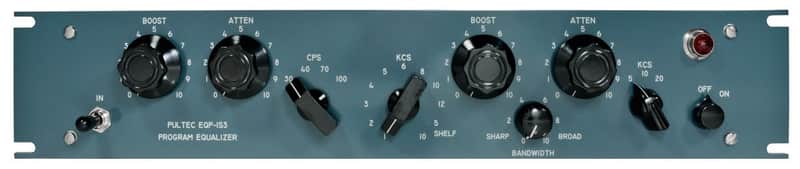

Pultec EQP-1S3-SS Program Equalizer - Solid State Version (Demo Deal)

Pultec EQP-1S3-SS Program Equalizer - Solid State Version (Demo Deal)

In the early 1970s, after condensing the classic 3U model EQP-1A into the 2U form-factor model EQP-1A3 (same components, same specs), Pulse Techniques introduced a solid-state line amp version of the EQP-1A3. These units have exactly the same front end (input transformer and passive EQ section) but utilize a solid-state opamp (API 2520) gain stage driving a Triad output transformer, just like the originals.

Like the EQP-1A3-SS, this solid-state version of the Pultec EQP-1S3-SS (which adds 1k & 2k peak boost & 5k and 10k HF shelf boost to the EQP-1A3-SS) is actually preferred by some engineers for certain applications (kick, snare, bass, piano, etc.) and also serves as the core for our 500-series EQs. Many users of this version of the Pultec describe them as “more punchy” and having “a tighter low end” than the tube version. Pulse Techniques, LLC is the only company licensed to use genuine API 2520 opamps in their products. These EQs deliver plenty of the punch and mojo of their tube-amp counterparts, with just a slightly different flavor.

FEATURES:

• 30, 40, 70, 100 CPS shelf boost, 0 – 13.5 dB
• 30, 40, 70, 100 CPS shelf attenuate, 0 – 17.5 dB
• 1, 2, 3, 4, 5, 8, 10, 12, 16 KCS peak boost, 0 – 18 dB; 5, 10 KCS shelf boost, 0 – 14 dB
• 5, 10, 20 KCS shelf attenuate, 0 – 16 dB
• Input Impedance: ~600 Ohms
• Output Impedance: ~50 Ohms
• Noise: Below -80 dBm
• Distortion: ≤ 0.15% at 10 dBm into 600 Ohms
• Amplifier: 20 CPS to 20 KCS; +0, -1 dB ref 1 KCS including input/output
• Output Level: +21 dBm maximum
