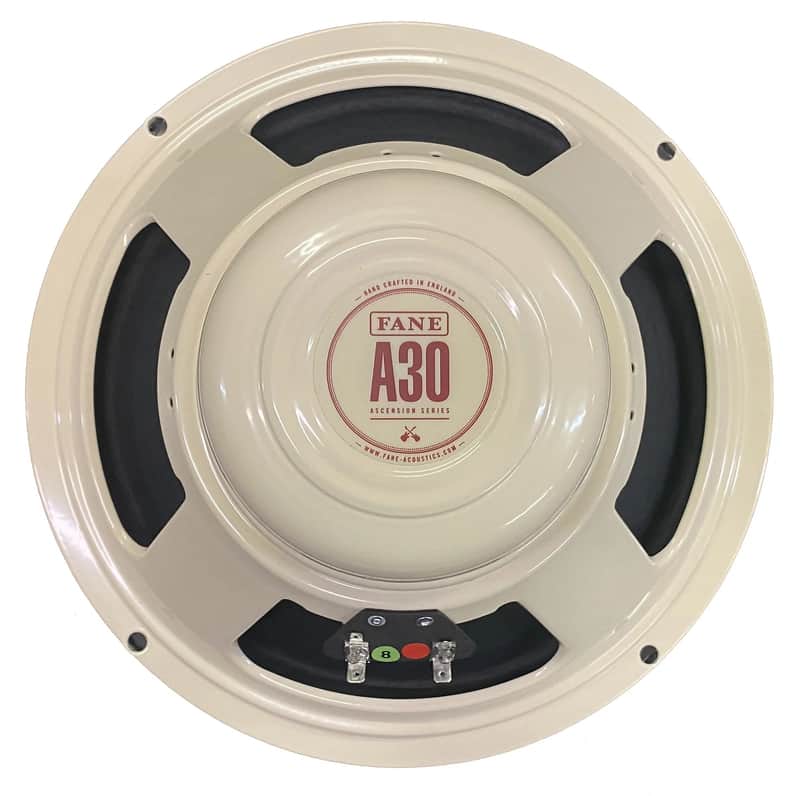

Fane Ascension A30 Alnico, 8 or 16 ohm.

The Ascension A30, 30 watt guitar speaker, has been voiced to offer more crunch for classic vintage guitar tones.

Fitted with an Alnico magnet it provides a smoothness and warmth throughout its midrange and delivers the classic, shimmering alnico chime, detailed top-end coupled with a tight low-end punch that will give your sound new life. Clean tones are crisp, clear and articulate.

Best suited when used with single, 2x12 cabinets and various boutique amplifiers. The A30 can also be combined with our F30 driver for complimentary alternative sound.

SPECIFICATIONSSeriesAscensionNominal Chassis Diameter12Power Rating (AES)30 WattsFrequency Range75Hz - 5kHzImpedance8 / 16 ΩSensitivity100 dBMagnet Weight1 Kg / 35.27 ozMagnetic Gap Depth8 mm / 0.31”Flux Density1.4 TeslaCoil Winding Height10.7 mm / 0.42”Voice Coil Diameter44.45 mm / 1.75”Voice Coil MaterialCopperFormer MaterialPaperMagnet MaterialAlnicoChassis MaterialPressed SteelCone MaterialPaperFront Gasket MaterialFoamSurround / Edge TerminationPaperDust DomeFabricConnectorsSolder TabsOverall Diameter309 mm / 12.17”Flange Height5 mm / 0.20”Overall Depth166.5 mm / 6.56”Magnet Structure Diameter102 mm / 4.02”Gasket(s) SuppliedFront & RearBaffle Cut-out Diameter284 mm / 11.18”Mounting Hole Information4 x ø8mm on 297 mm PCDNett Weight4.1 Kg / 9.04 lb
