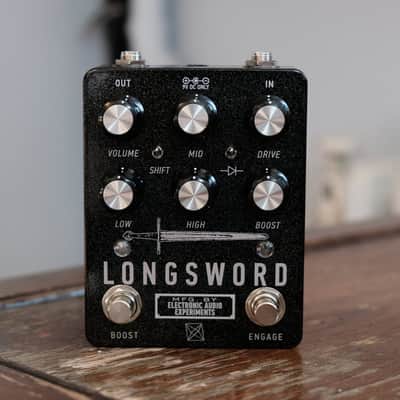

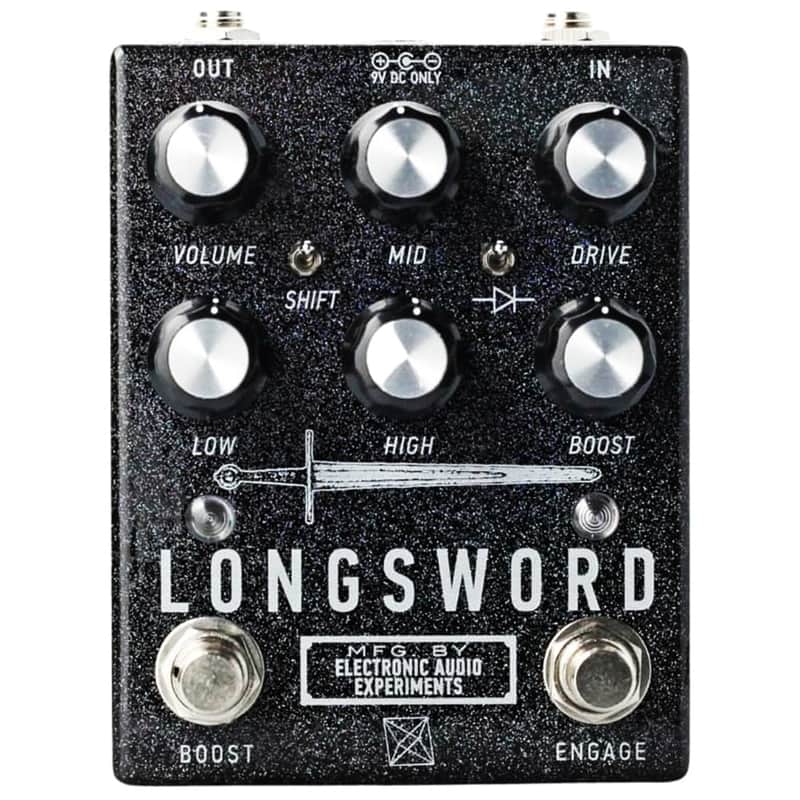

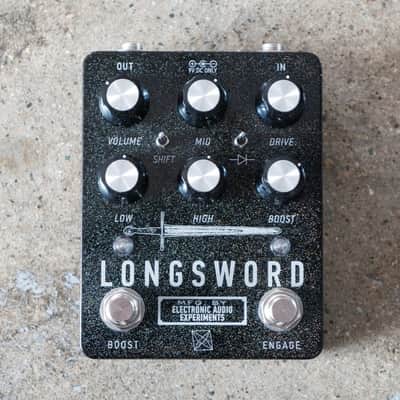

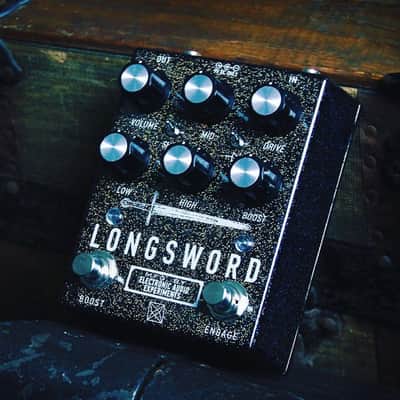

The Electronic Audio Experiments Longsword is yet another contender in the endless void of op-amp based drive pedals—familiar but with some novel twists. Cascaded gain stages allow for the full range from clean boost to massive distortion, all without sacrificing tonal flexibility. The equalizer combines bass and treble shelving filters with an active, frequency-selectable midrange boost/cut control. This lets the user sculpt a diverse array of tones and carve out a niche in even the most dense of mixes. The Longsword has a broad frequency response which makes it work equally well with guitar, baritone, and bass.

Controls

• Level: output volume

• Drive: go from light grit to heavy overdrive

• Low/High: James/Baxandall tone stack (shelving filters)

• Mid: active midrange boost/cut

• Shift: selects frequency controlled by Mid pot

• Diode: selects between clipping diodes, to alter dynamics and headroom

 • Up: MOSFET clipping, medium compression

 • Center: no diodes, minimal compression

 • Down: Silicon diode clipping, maximum compression

• Boost (Footswitch): engages a front end mid boost

• Boost (Knob): adds up to 20dB of gain when the Boost is engaged

Electrical Specifications

Bypass: Relay switching with true bypass

Input impedance @ 1 Khz: 500kO

Output impedance @ 1 Khz: 1kO

Power: 9V DC, 2.1 mm center negative barrel. The current draw is 75 mA.
