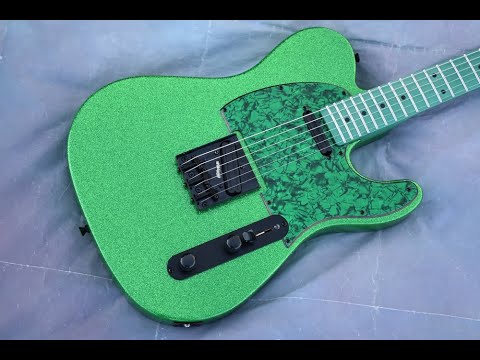

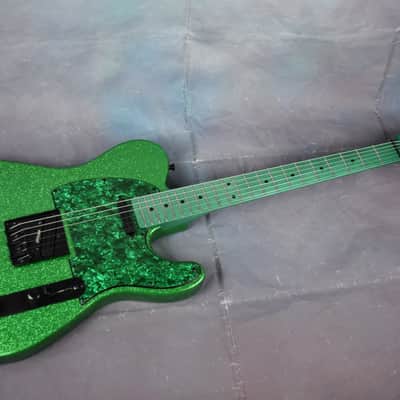

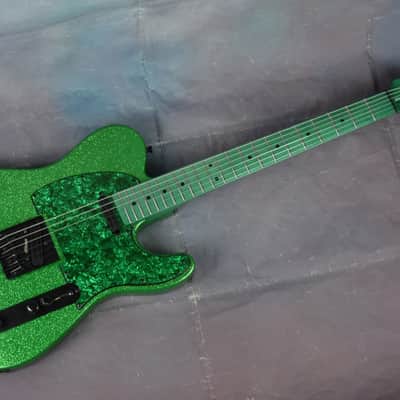

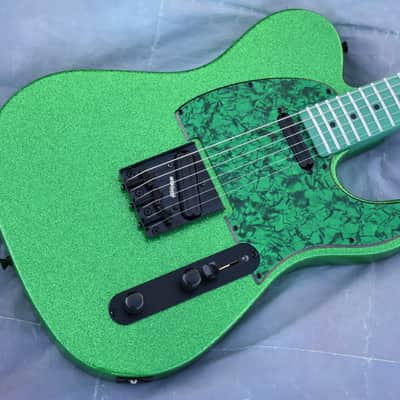

Video! Telecaster HH Metallic Green Sparkle Flake 4-Way Coil Split

General Overview:

• Playing demo and description video available at "Werner Guitars" YouTube channel
• Additional position for both pickups in series (Maximum pickup output)
• Humbuckers individually (partial) split
• Broad-Spectrum Wiring. Full explanation of the wide range of tones is given below
• Full level, crown, polish, set-up, playability test, inspection and packaging by a certified luthier
• Strings: D'Addario Nickel Wound XL 10-46 EXL110
• Weight of the guitar is 8 pounds

Switching Positions as Follows:
1. Bridge (Resistance 11.8 ohms)
2. Bridge in parallel with Neck (regular Tele position) (Resistance 4.4 ohms)
3. Neck (Resistance 7.0 ohms)
4. Neck in series with Bridge (Resistance 18.5 ohms)

Body:

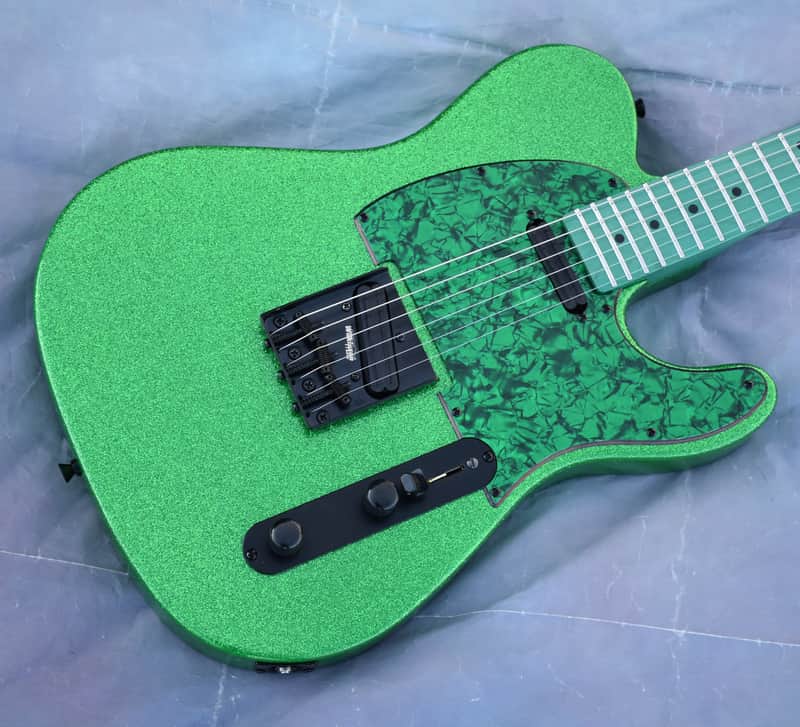

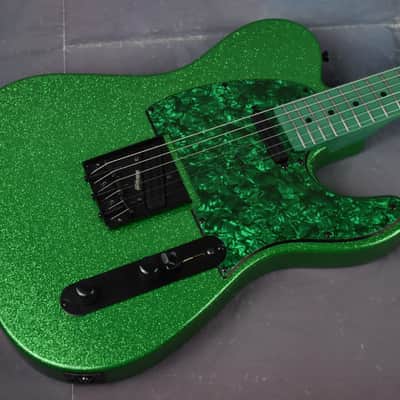

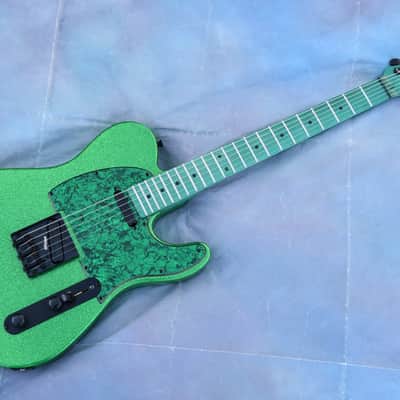

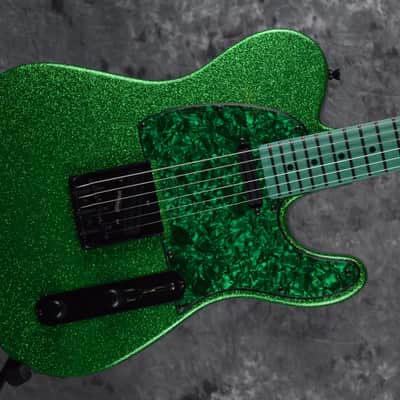

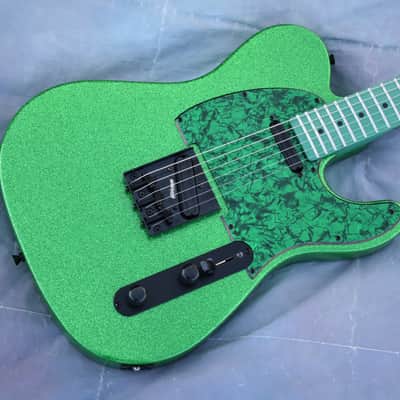

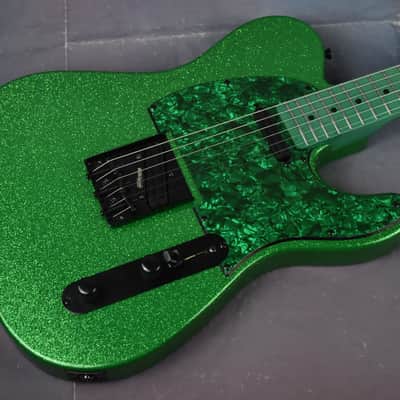

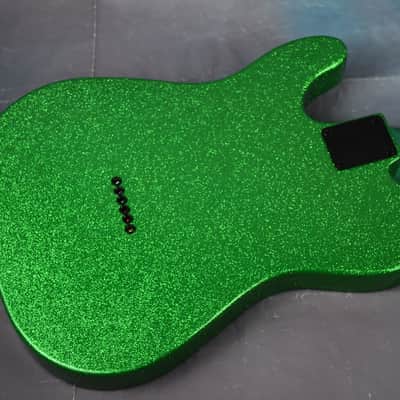

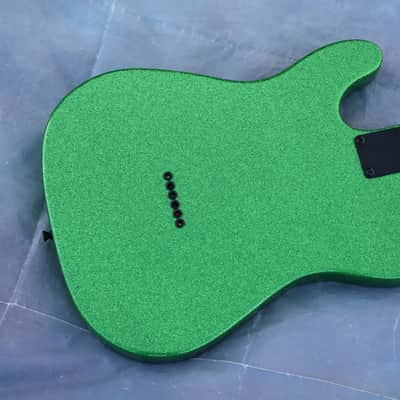

• Alder Body with Metallic Green Sparkle Flake High Gloss Polyester Finish

Neck:

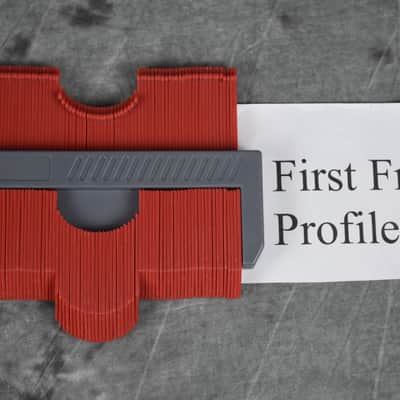

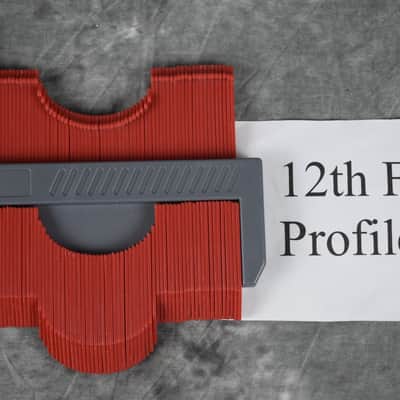

• Maple, "C" Shape neck 22 stainless steel medium/jumbo frets, satin green finish. 10" radius (1st fret 0.83", 12th fret 0.91")
• Scale length 25.5"

Hardware:

• Black Wilkinson M-Series Bridge with Compensated Brass Saddles
• Saphue Black Locking tuners
• Black roller string trees

Electronics:

• Black Alnico 5 Dual Rail Bridge Pickup 12k (Exact measure 11.8 ohms).
• Black Alnico 5 Dual Rail Neck Pickup 7k (Exact measure 7.0 ohms).
• 500K Push/Pull Alpha Volume/Tone Potentiometer Audio Taper
• Oak Grigsby 4-Way Blade Switch
• 0.022uF 630V 5% K73-22 Military Russian Hybrid PETP Tone Capacitor USSR K73
• Pure Tone Black Nickel Mono output Jack with multi-contact dual tension grounds & dual positive tips for optimal signal, tone & lowest possible noise.

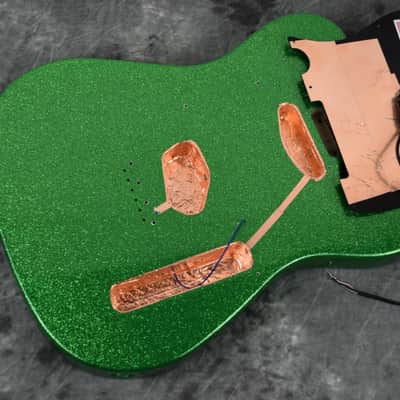

• All cavities have been shielded and insulated. All grounding, shielding, insulation, and pickup phasing/polarity have been well thought out and executed.

Full-spectrum Resistance 19 ohms to 3 ohms: Guitar has nine (9) distinct resistance settings with mix and match of push-push coil splits. Positions and resistance values are charted below at the very bottom. High-output position number 4 with bridge and neck wired in series. Coil splits are "partial" coil splits modeled after PRS "partial" coil splits to retain oomph, output, and tone. Capable of chicken-pickin' country, jazz, smooth blues, roaring rock, to stoner doom metal, the sonic possibilities are endless. Full detailed description of "Broad Spectrum Wiring" can be viewed on "Werner Guitars" Facebook page.

You have OPTIONS.  Just message before the sale if you want anything changed about the guitar.  (Pickups, hardware, new wiring/signal chain, etc.) You will be notified if the change can be made, time to complete, cost if any, and pictures provided as appropriate.  Get the guitar YOU want.  Message today!

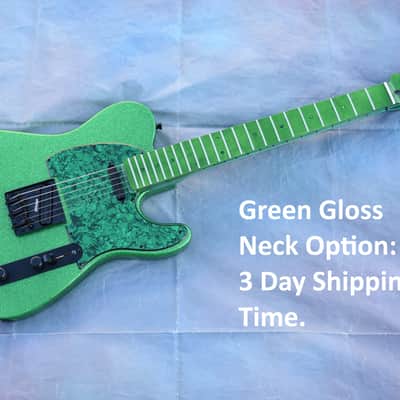

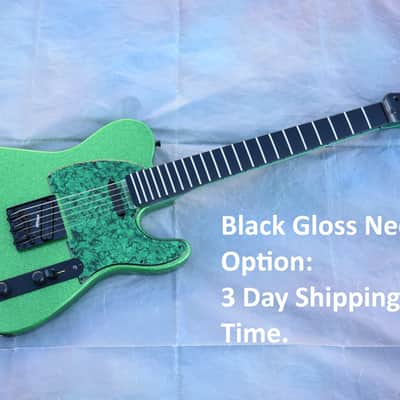

**Note: You now have the option to change the neck to Green Gloss Flamed Maple or Black Gloss Maple (Shown in pictures 3 and 4). Must be requested prior to order so I can adjust the handling/shipping time to 3 days to allow for the neck swap and re-adjustment.**

**NEW Upgrade options**:

• Seymour Duncan bridge pickup humbucker or single coil $69
• Seymour Duncan neck pickup humbucker or single coil $69

Switching Positions as Follows:

1. Bridge (Resistance 11.8 ohms)

• with (partial) coil split (tone knob only) 7.6 ohms
• with (partial) coil split (tone & volume knob) 3.3 ohms
• with (partial) coil split (volume knob only) 3.9 ohms

2. Bridge in parallel with Neck (regular Tele position) (Resistance 4.4 ohms)

• with (partial) coil split (tone knob only) 3.7 ohms
• with (partial) coil split (tone & volume knob) 3.0 ohms
• with (partial) coil split (volume knob only) 3.5 ohms

3. Neck (Resistance 7.0 ohms)

• with (partial) coil split (volume knob only) 4.9 ohms

4. Neck in series with Bridge (Resistance 18.5 ohms)

• with (partial) coil split (tone knob only) 14.4 ohms
• with (partial) coil split (tone & volume knob) 5.3 ohms
• with (partial) coil split (volume knob only) 5.4 ohms

Full range of resistance:

• 18.5 ohms
• 14.4 ohms
• 11.8 ohms
• 7.6 ohms
• 5.4 ohms
• 4.9 ohms
• 3.9 ohms
• 3.5 ohms
• 3.0 ohms
