ASHLY CLX-52 Professional 2 Channel Compressor / Limiter Processor (MINT)

ASHLY CLX-52 Professional 2 Channel Compressor / Limiter Processor (MINT)

Ashly's CLX-52 Peak Compressor/Limiter is a two-channel universal peak-sensitive automatic gain control (AGC) device with exceptional audio performance, precise controls and rugged durability. The CLX-52 compressor/limiter uses an "infinite soft-knee" characteristic and timing based on compression ratio. This, combined with a dual release time, allows program density to increase as the input signal increases. The result is a peak controller with very low noise, smooth sound, and excellent stereo tracking without the usual "constricted" limiter sound.

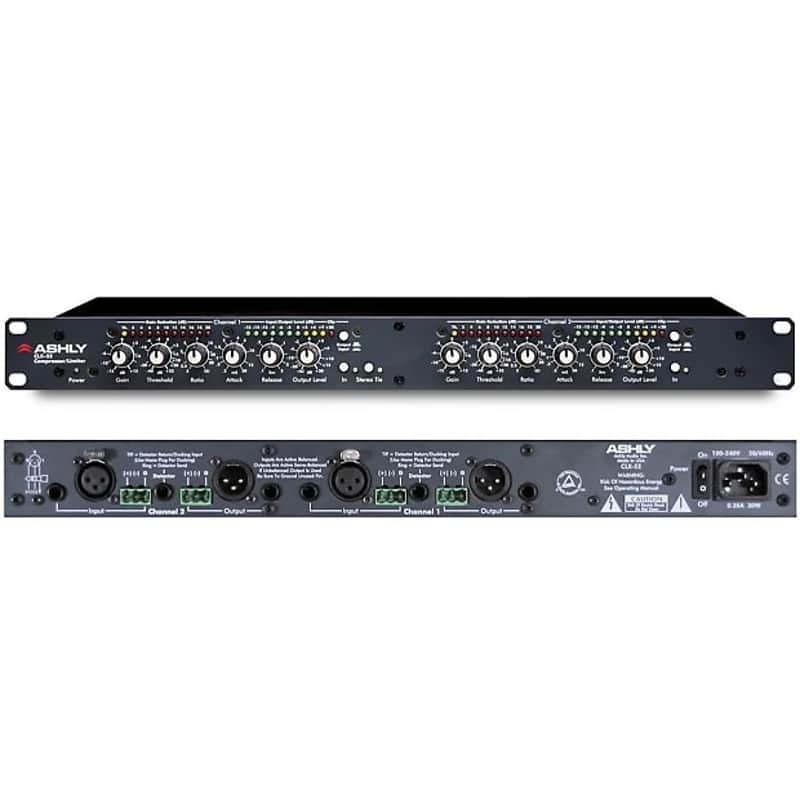

Front panel controls allow you to set input gain, threshold, ratio, attack time, release time and output level. Additional front panel features are an in/out switch for each channel, stereo tie switch and eleven-step LED meters for gain reduction and input or output level. All audio connections are XLR, 1/4" TRS and euroblock. Each channel has a TRS insert detector patch point which can be used as a "ducking" input, or in conjunction with an equalizer to produce frequency-sensitive limiting.

A unique feature of Ashly Compressor/ Limiters is the incorporation of a double release-time constant. When a conventional compressor/limiter is adjusted for slow release times, transients such as mic "pops" may cause a severe reduction in gain followed by a slow fade up, making the action of the limiter very obvious. With the double time constant, release from gain reduction after a brief transient is always fast, with a slower release after a sustained overdrive.

With wide-bandwidth, ultra-low-distortion and a low noise VCA, the CLX-52 is a versatile and highly listenable compressor/limiter. Used in professional sound reinforcement as a protective device it will prevent audio levels from overloading systems, or it can be used to reduce the dynamic range of a signal creating a much louder or fuller sound without increasing the loudness peaks. The CLX-52 is a versatile and highly listenable compressor/limiter suitable for use in professional sound reinforcement, recording and broadcasting.

Feature

• XLR and 1/4 Connectors
• Peak Compression Circuitry
• Precision Balanced Inputs
• Extremely Low Noise and Distortion
• Calibrated Threshold Control
• Detector Patch Point
• Input-Output Meter Switch
• Gain Reduction Meters
• Stereo Tie Switch on CLX-52
• U.L. Listed

Specification

Controls

• Gain: ±15 dB
• Threshold: -40 dBu to +22 dBu
• Ratio: 2:1 to ∞ (infinite)
• Attack Time: 200 µsec to 20 msec
• Release Time: 0.1 sec to 3 sec
• Output Level: -40 dBu to +20 dBu
• Stereo Tie Switch: Yes (CLX52)
• Defeat Switch: Yes

Detector Patch Point

• Supports side-chain EQ connection
• Enables frequency-selective compression

Impedance

• Input Impedance: 20k Ohms, balanced bridging
• Output Impedance: 200 Ohms, quasi-balanced
• • Recommended termination: >600 Ohms

Audio Performance

• Frequency Response: ±0.2 dB (20 Hz – 20 kHz)
• Distortion:
• • <0.01% @ +15 dBu, 1 kHz
  • <0.15% @ +15 dBu, 20 Hz – 20 kHz
• Hum & Noise: -96 dBu (unity gain)

Power

• Voltage: 93 VAC – 120 VAC
• Frequency: 50–60 Hz
• Power Consumption: 5W

Physical

• Dimensions: 19" W × 1.75" H × 6" D
• Shipping Weight: 8 lbs
