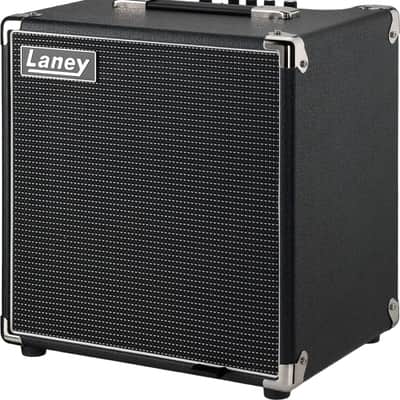

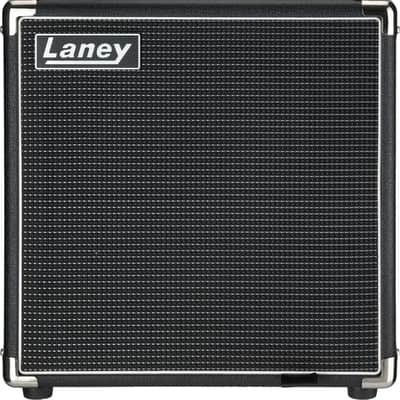

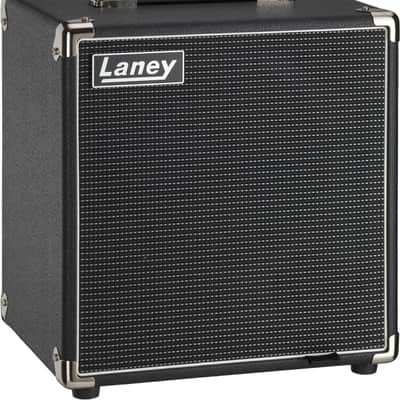

Laney Digbeth DBF30 Bass combo amplifier 30W RMS 8" Speaker w Overdrive

Laney Digbeth Bass Combo Amplifier - Complete Specifications

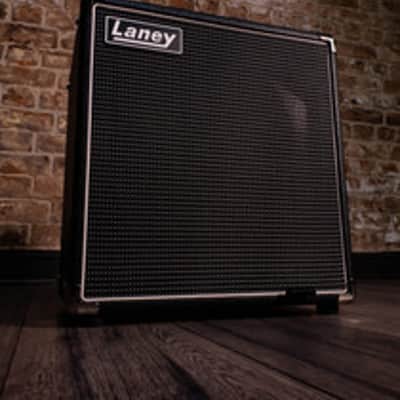

The Laney Digbeth Bass Combo Amplifier (Model DBF30) is a compact, professional-grade bass amplification solution designed for modern bassists seeking vintage boutique tone. This 30-watt RMS combo features an 8-inch HH Audio Blue Professional woofer and includes an overdrive function for added versatility.

• Power & Amplification
  • 30 watts RMS / 60 watts continuous power output
  • Class D amplifier with fully passive convection cooling for silent operation
  • Single channel design with switchable tube-style drive circuit
• Speaker Configuration

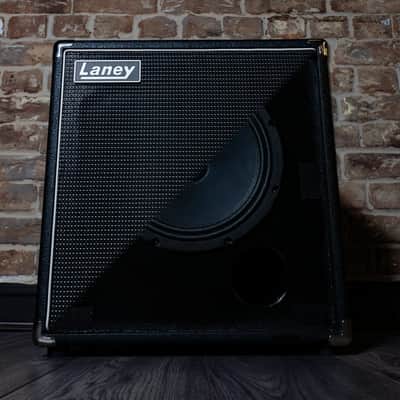

  • 1 x 8" HH Audio Blue Professional woofer
  • Frequency response: 65 Hz to 18 kHz (-10dB)
  • Maximum SPL: 112 dB continuous, 115 dB peak (at 1 meter)
• Connectivity & Controls

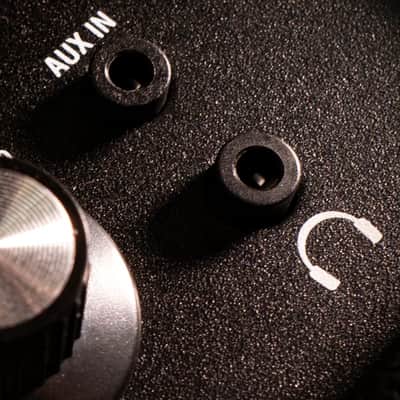

  • Input: 6.3mm (1/4") instrument jack, 3.5mm stereo aux input
  • Output: 3.5mm (1/8") stereo headphones jack
  • Input impedance: 1MΩ

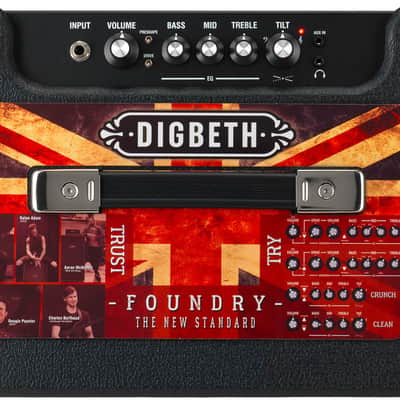

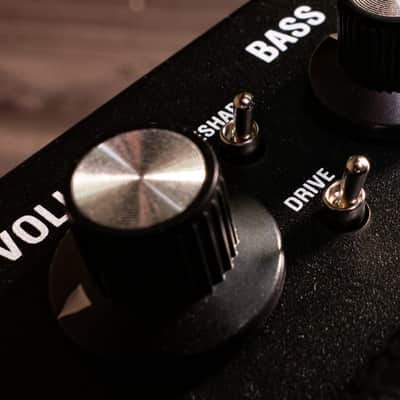

  • Controls: Volume, preshape switch, drive switch, bass, middle, treble, tilt control
• EQ & Sound Shaping

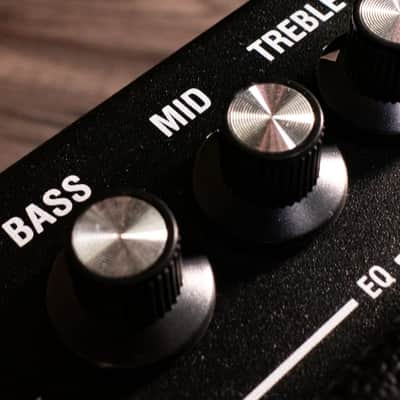

  • Active 3-band EQ: Bass ±12dB, Middle ±12dB, Treble ±12dB

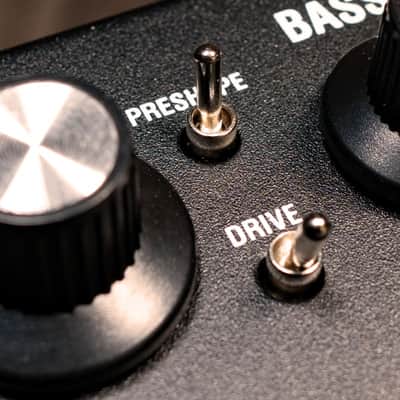

  • Preshape switch for instant tone modification

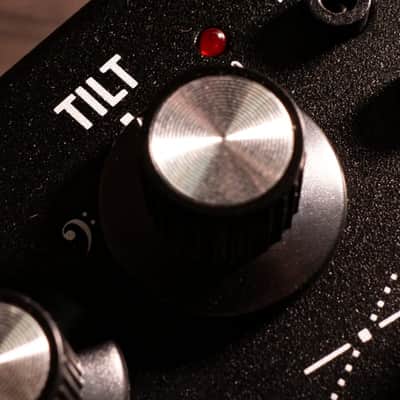

  • Tilt control for frequency spectrum adjustment
  • Drive circuit allows players to add gritty, overdriven tones
• Construction & Design
  • 12mm MDF cabinet construction
  • Hard-wearing black vinyl finish with steel corners
  • Top-mounted steel reinforced strap handle
  • Power LED indicator
• Power Supply & Consumption
  • Universal internal power supply: 100-240V, 50/60Hz switched mode
  • Power consumption: 25W nominal, 85W maximum
• Physical Specifications
  • Dimensions: 384 x 355 x 265 mm (15.1" x 14" x 10.4") H x W x D
  • Weight: 8.3 kg (18.3 lbs)

The Laney Digbeth series represents the company's commitment to delivering powerful, feature-rich bass amplification with vintage appeal, suitable for both practice and performance applications.
