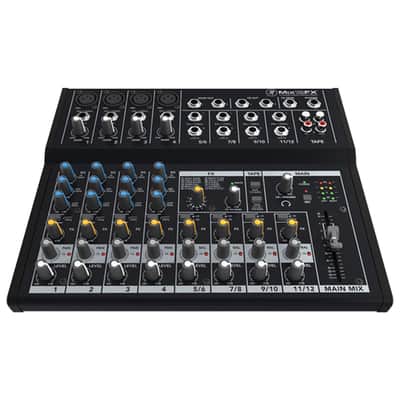

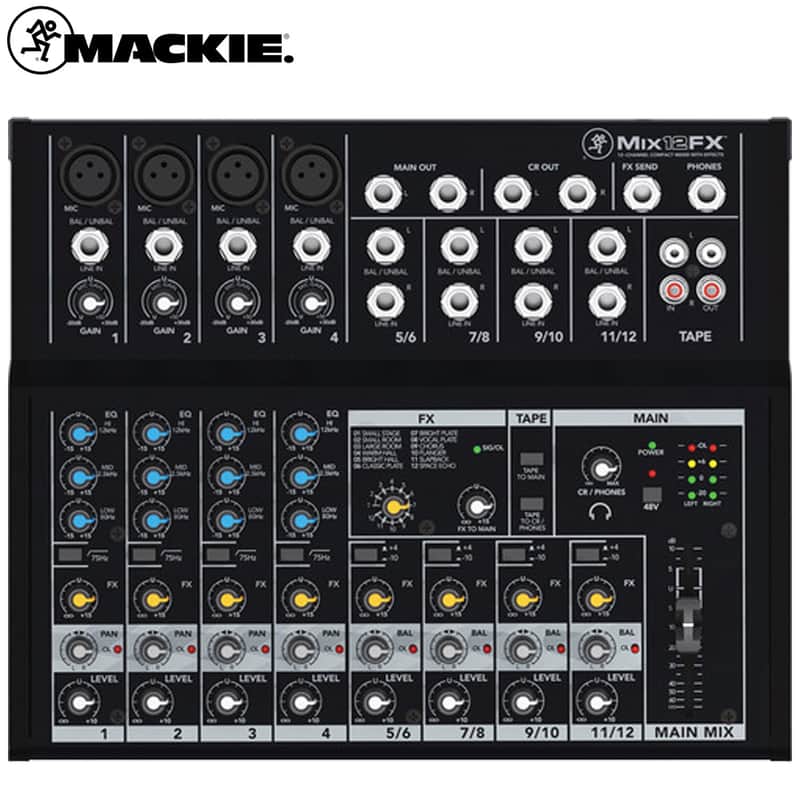

Mackie Mix12FX 12-Channel Compact Mixer with Effects

When you need to take your mix to the next level, reach for the Mackie Mix12FX. Our 12-channel compact mixer features high-headroom, low-noise preamps, onboard mixer effects and flexible I/O, helping you turn the music in your head into a reality.

Compact Yet Powerful Control Over Your Mix

Adding depth and dimension to your mixes has never been easier—or more affordable. With 12 onboard effects, the Mackie Mix12FX makes adding depth to your vocals, drums, keyboards and more a breeze. Our 12-channel mixer features four microphones/line inputs that are equipped with our low-noise, studio-quality preamps, a high-pass filter and 3-band EQ to fine-tune your sound. Plus, it offers four stereo channels for keyboards and other line-level instruments and gear.

Mackie Mix Series Compact Mixers

Mix Series Compact Mixers are reliably rugged, with the proven quality you expect from the world leader in compact mixer design.

With proven high-headroom, low-noise design preamps, Mix Series mixers sound great and maintain audio quality from any source. Plus, with their rugged metal chassis and high-quality components throughout, they are a solid investment in reliability.

An amazing value, Mix delivers a straightforward feature set that's easy to use and the sound quality you need in rugged designs built to last.

Product Features:

12-channel compact mixer with proven high-headroom, low-noise performance

Mic/line inputs with studio-level audio quality

Multi-band EQ with clean, precise tone shaping

Pan, level and overload indication

Phantom power for studio condenser mics

Low cut filter (75 Hz)

Multiple stereo 1/4 line inputs

+4/-10 dB and balance operation

12 great-sounding integrated effects including reverbs, choruses and delays

Dedicated stereo RCA inputs/outputs for playback or recording

Main L/R outputs

Headphone output

Stereo control room outputs

Rugged, reliable design built to last

Extremely compact and portable

Product Specifications:

Noise Characteristics

(20 Hz - 20 kHz bandwidth, 150 Ω source impedance)

All Outputs, Master Levels and Channel Levels Off: -100 dBu

All Outputs, Master Levels Unity, All Channel Levels Off: -90 dBu

All Outputs, Master Levels Unity, 1 Channel Level Unity: -85 dBu

Distortion (THD+N)

(1 kHz, 20 Hz - 20 kHz bandwidth)

Mic Input to Main Output: <0.01% at +4 dBu output

Attenuation and Crosstalk

(20 Hz-20 kHz bandwidth)

Inputs to Outputs at 1 kHz: -85 dB

Main Mix Off at 1 kHz: -80 dB

Frequency Response

Mic Input to Any Output (Gain at Unity): +0, -1 dB, 20 Hz to 30 kHz

Equivalent Input Noise (EIN)

(Mic in to Insert Send out, max gain.)

150 Termination: -122 dBu

Common Mode Rejection Ratio (CMRR)

(Mic in to Insert Send out, max gain.)

1 kHz: Better than 70 dB

Maximum Levels

Mic Inputs (XLR): +19 dBu

All Other Inputs: +21 dBu

All Outputs: +21 dBu

Impedances

Mic In: 3.8 kΩ

All Other Inputs: 10 kΩ or greater

Tape Out: 1 kΩ

Phones Out: 22 Ω

All Other Outputs:

120 Ω unbalanced

240 Ω balanced

EQ

High Shelving: ±15 dB at 12 kHz

Mid Peaking: ±15 dB at 2.5 kHz

Low Shelving: ±15 dB at 80 Hz

Low Cut Filter: 18 dB/octave, -3 dB at 75 Hz

AC Power Requirements

Input:

AC120V~, 60 Hz (US)

AC230-240V~, 50/60 Hz (EU)

AC220-230V~, 50/60 Hz (UK)

AC220-240V~, 50/60 Hz (AU)

AC220V~, 50 Hz (CN)

AC127V~, 60 Hz (BZ)

Output:

AC18V~ 1000mA (US)

AC9V~ 500mA x2 (EU)

AC9V~ 500mA x2 (UK)

AC9V~ 500mA x2 (AU)

AC9V~ 500mA x2 (CN)

AC18V~ 1000mA (BZ)

Operating Temperature:

0-40 degrees C

32-104 degrees F

Physical Properties (Product)

Height: 2.1 in / 53 mm

Width: 11.7 in / 297 mm

Depth: 9.6 in / 244 mm

Weight: 3.7 lb / 1.7 kg

Physical Properties (Packaged Product)

Height: 3.2 in / 81 mm

Width: 13.0 in / 330 mm

Depth: 14.6 in / 371 mm

Weight: 5.0 lb / 2.3 kg
