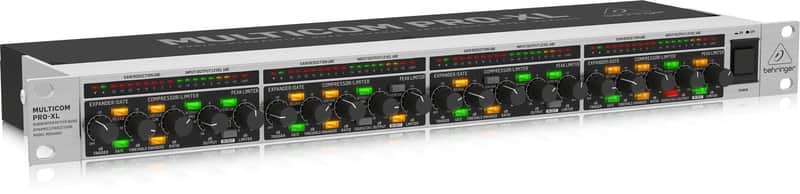

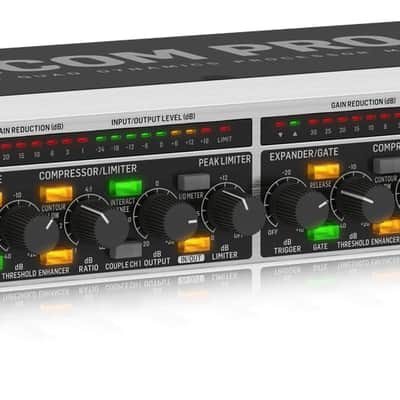

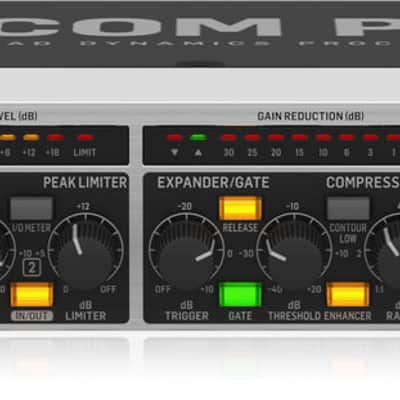

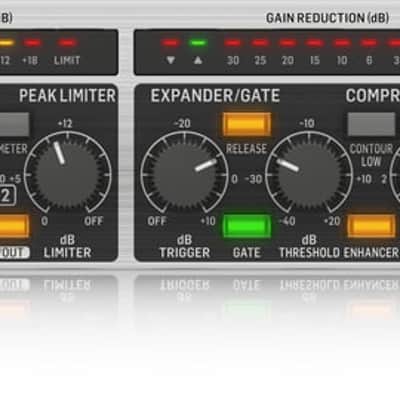

Behringer MDX4600 V2 Multicom Pro-XL Reference-Class-4 Channel Expander ( MINT )

MULTICOM PRO-XL MDX4600 V2

The reference-class MDX4600 is a marvelous 4-channel Expander/Gate/Compressor/Peak Limiter that is ideal for: compressing mono/stereo signals and providing virtually inaudible noise suppression, without loss of high frequencies; increasing vocal presence and energy; and limiting, or smoothing out extremely-high signal peaks. Additionally, the MDX4600 features an integrated Dynamic Enhancer and Low-Contour filter to provide the ultimate in signal enrichment. Put simply, the MDX4600 can do amazing things for your vocals or instruments – providing virtually everything you need for studio-quality dynamics processing!

Audio Dynamics Toolkit

Here are just a few of the MDX4600s outstanding capabilities:

• Switchable IKA (Interactive Knee Adaptation) provides program-adaptive compression, combining all the advantages of both hard and soft-knee compression
• IRC (Interactive Ratio Control) Expander/Gate ideal solution for noise floor reduction vs. applying notch filters and various equalizers for virtually inaudible noise suppression
• Enhancer lets you emphasize the Bass, Midrange and Hi output at selectable frequencies for maximum punch, clarity and detail without raising overall volume
• IGC (Interactive Gain Control) Peak Limiter combines clipper and program limiter for reliable, inaudible protection against signal peaks
• Stereo Couple links 1/2 and 3/4 channels, allowing dials and switches of Channels 1 and 3 to provide dynamics control over Channels 2 and 4, respectively (true stereo processing)

Options Abound

The MDX4600 features amazingly-accurate, 8-segment LED meters for In/Out Level and Gain Reduction, switchable +4 dBu or -10 dBV operating level, Side Chain I/O, and servo-balanced XLR and 1/4" Inputs and Outputs. Best of all, the MULTICOM PRO-XL MDX4600 takes up just a single rackspace.

Sound Value

The incredible MDX4600 is the ideal solution for becoming the master of your dynamics. With its flexible routing options, all the I/O you could ask for, plus a host of other professional features – the MDX4600 is an exceptional tool for your live shows – and an absolute “must-have” for your studio! Check out the MULTICOM PRO-XL MDX4600 at your BEHRINGER dealer, or place your order online today.

Feature

• Switchable IKA (Interactive Knee Adaptation) program-adaptive compression circuitry combines the advantages of hard-knee and soft-knee characteristics
• IRC (Interactive Ratio Control) expander/gate circuitry for virtually inaudible noise suppression
• Switchable dynamic Enhancer for brilliant, lively audio even with heavy compression
• IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible protection against signal peaks
• Switchable Low contour filter prevents "pumping" due to low-frequency dominated compression
• Stereo couple function selectable for channels 1/2 and 3/4
• Separate 8-segment LED meters for input/output levels and gain reduction
• Selectable operating level (+4 dBu/-10 dBV)
• Servo-balanced inputs and outputs with ¼" TRS and gold-plated XLR connectors
• Internal switch-mode power supply (100 - 240 V~) for noise-free audio and low power consumption

Specification

• Audio Inputs: XLR and 1/4" TRS connectors, servo-balanced
• Input Impedance (+4 dBu): 50 kΩ balanced, 50 kΩ unbalanced @ 1 kHz
• Input Impedance (-10 dBV): 50 kΩ balanced, 100 kΩ unbalanced @ 1 kHz
• Operating Level: +4 dBu / -10 dBV, switchable
• Max Input Level: +22 dBu, balanced and unbalanced
• CMRR: Typically 60 dB @ 1 kHz
• Audio Outputs: XLR and 1/4" TRS connectors, servo-balanced
• Output Impedance: 100 Ω balanced, 50 Ω unbalanced @ 1 kHz
• Max Output Level: +21 dBu, balanced and unbalanced
• Frequency Range: 10 Hz to 70 kHz, +0/-3 dB
• Signal-to-Noise Ratio: 115 dB, unweighted
• THD: 0.02% typical @ +4 dBu, 1 kHz, unity gain
• Crosstalk: -90 dB @ 1 kHz
• Expander/Gate Type: IRC (Interactive Ratio Control)
• Expander Threshold: OFF to +10 dB, variable
• Expander Ratio: 1:1 to 1:8, variable
• Attack: <1 msec / 50 dB, program-dependent
• Release: Slow: 100 msec/1 dB, Fast: 100 msec/100 dB, variable
• Compressor Type: IKA (Interactive Knee Adaptation)
• Compressor Threshold: -40 to +20 dB, variable
• Compressor Ratio: 1:1 to ∞:1, variable
• Auto Characteristic: Wave-adaptive compressor
• Auto Attack: Typically 15 ms for 10 dB, 5 ms for 20 dB, 3 ms for 30 dB
• Auto Release: Typically 125 dB/sec, program-dependent
• Output Gain: -20 to +20 dB, variable
• Peak Limiter Type: IGC (Interactive Gain Control)
• Limiter Level: 0 dB to OFF (+21 dBu), variable
• Limiter 1 (Clipper) Attack: Zero
• Limiter 1 (Clipper) Release: Zero
• Limiter 2 (Program) Attack: <5 ms, program-dependent
• Limiter 2 (Program) Release: ~20 dB/sec, program-dependent
• Dynamic Enhancer Type: IDE (Interactive Dynamic Enhancer)
• Filter Frequency: 2.5 kHz (lower cutoff)
• Characteristic: High-pass filter, 6 dB/oct
• Boost: Max 28 dB @ 7.5 kHz
• Power Supply: Switch-mode, autorange 100–240 V~, 50/60 Hz
• Power Consumption: 18 W
• Mains Connector: Standard IEC receptacle
• Dimensions: 44 × 483 × 149 mm (1.7 × 19.0 × 5.9")
• Weight: 1.8 kg (4.0 lbs)

UPC

• 4033653010528
