JBL ASB6112 4000 Watt 12" Professional Live Sound Passive DJ PA Subwoofer Sub

Description:

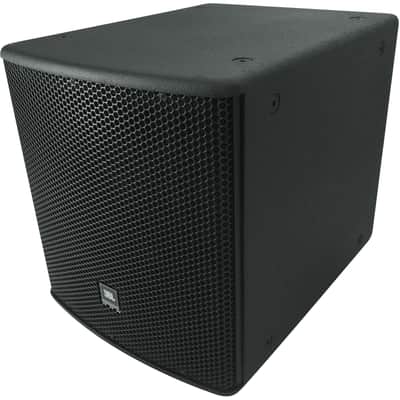

Compact High Power 12-inch Subwoofer

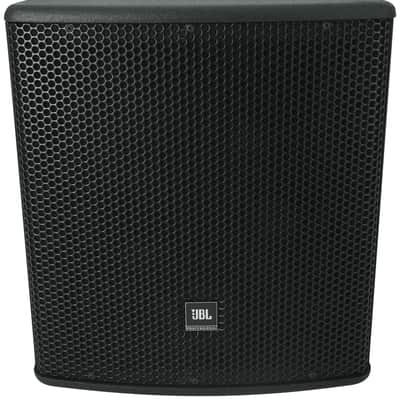

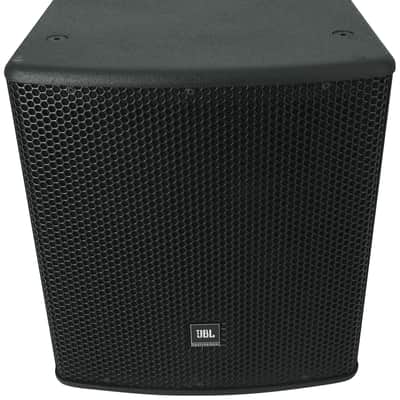

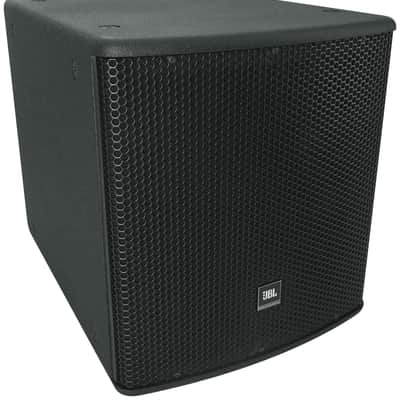

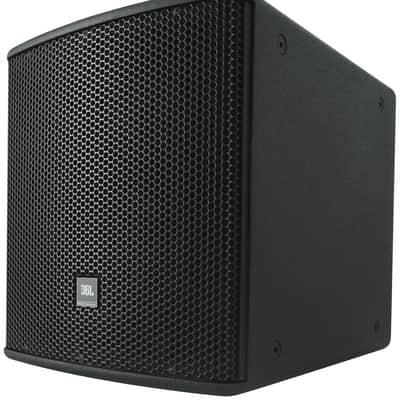

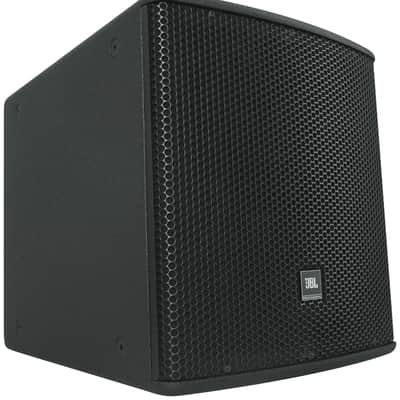

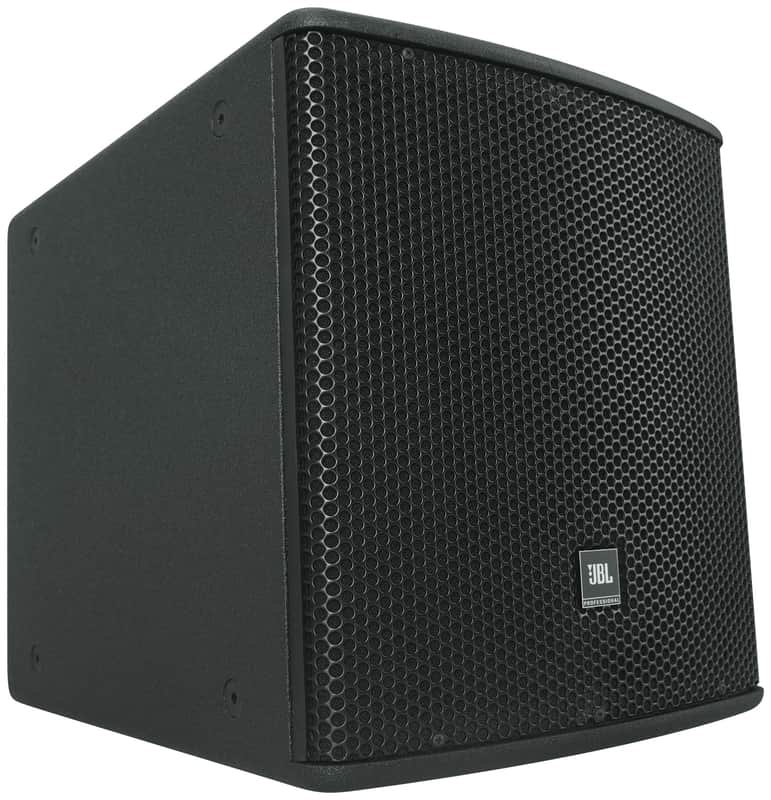

The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

The enclosure is constructed of multiply hardwood coated in JBL’s rugged DuraFlex™ finish and is heavily braced to maximize low-frequency performance. The rectangular enclosure is fitted with sixteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.

Applications:

• Performing Arts Facilities
• Theatrical Sound Design
• Auditoriums
• Worship Facilities
• Live Clubs
• Dance Clubs
• Sports Facilities
• Themed Entertainment Venues

Features:

• 2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
• 1000 watts continuous pink noise,
• 4000 watts peak power handling capacity
• Large vent area for high output with low distortion
• FIR Tuning Set Matches Phase Profile to Full-Range Models
• For ground-stacked or suspended applications in stand-alone arrays or in combination with other
• AE Series products

Specifications:

• Frequency Range (-10dB): 35 Hz – 1 kHz
• Frequency Response (±3 dB): 43 Hz – 1 kHz
• Transducer Power Rating (AES): 1000 W (4000 W peak), 2 hrs.
• System Power Rating: 700 W (2800 W peak), 100 hrs.
• Maximum SPL (1m): 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak)
• System Sensitivity: 40 Hz - 300 Hz: 96 dB-SPL,1W (2.83V) @ 1m
• Nominal Impedance: 8 ohms
• LF Driver: 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
• Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
• Suspension Attachment: 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
• Finish: Black DuraFlex™ finish. White available upon request.

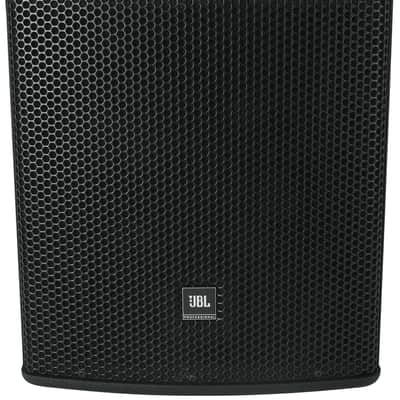

• Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

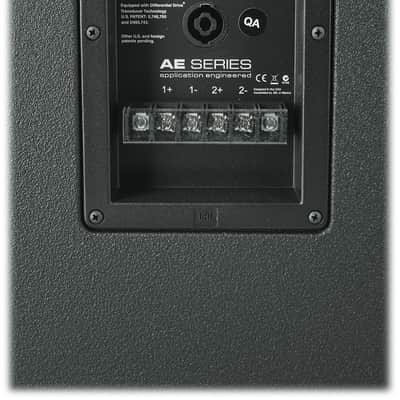

• Input Connector: NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
• Speakon in parallel with barrier strip for loop-through.
• Environmental: Mil-Std 810; IP-x3 per IEC529.
• Dimensions (H x W x D in vertical orientation): 406 x 369 x 483 mm(16.0 x 14.5 x 19.0 in)
• Net Weight (each): 16.3 kg (36.0 lb)
• Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers.
• Nominal LF Driver Impedance: 8 ohms
