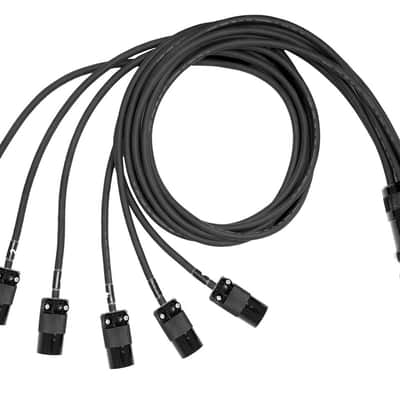

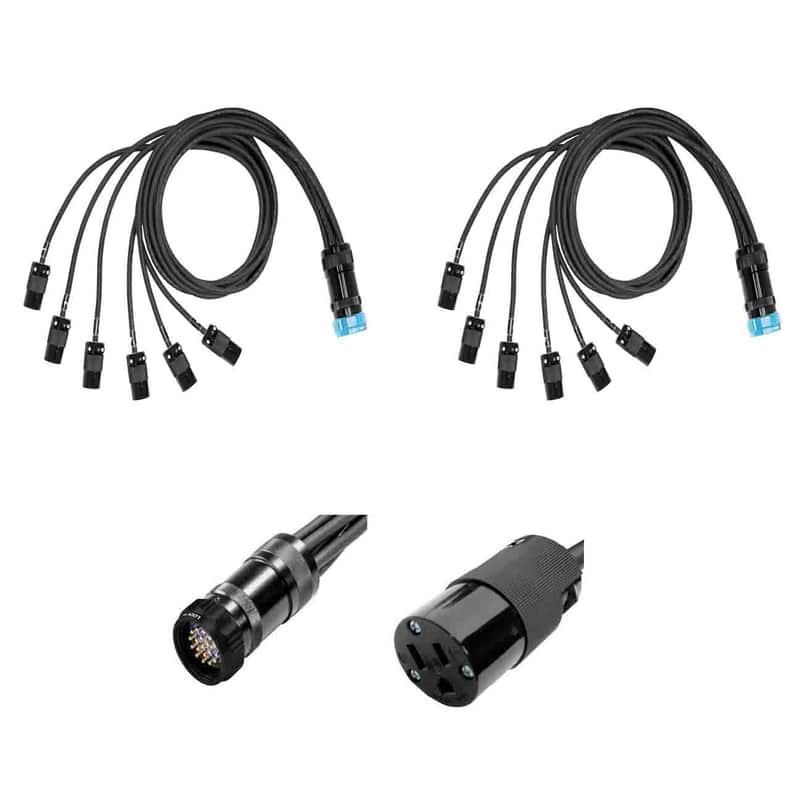

2 pk SOCAPEX SOCO 19 PIN to 6 Edison Female AC Connector 6 ft Breakout Cable

This Listing Is For 2 Brand New Elite Core SOCAPEX 19 PIN to 6 Channel Edison Female AC Connectors 6 ft Breakout Cable

These cables are hand built in the USA and need to be built before shipping

Package is for 2 Cables

Socapex 19 Pin to 6 Edison Female AC Connectors (6ft)

Technical Parameters:
• UL Approved to UL1977 Standard
• Amphenol Socapex SL419 Compatible
•19 Pin connectors are all rated 25A
• Multi-point Gold Plated Contacts
• Integral Insulation Sleeves
• M40 metric cable glands for multicore socapex cable pinout (bush sizes 10-32mm)
• Socapex Breakout Wire sizes from 12 to 14 AWG (1.5-2.5mm)
• IP67 ingress protection when mated
• Temperature Rating -55oC to +125oC
• Voltage Rating 600 VAC, 700 VDC max
• FMLB Earth contacts
• ROHS Compliant

Breakout Cable:
12/3 300-Volt CU Black Flexible Portable Power SJOOW Cord
Heat-, moisture- and oil-resistant EPDM rubber insulation
Indoor and outdoor use
Resists oil, solvents, water, flame, ozone and abrasion
Highly flexible with good tensile strength, elongation and aging characteristics
UL listed and CSA certified
