Mackie Onyx8 Premium Analog Mixer with Multi-track USB

Mackie Onyx Premium Analog Mixers with USB are the ultimate compact, affordable solution for live audio, home recording, and content creation. Packed with features including high-resolution 24-bit/96kHz recording, powerful DSP, and more. Capture your best performance at home or on the go with Onyx Premium Analog Mixers.

Product Highlights:

Classic Sound, Modern Performance

Legendary Onyx mic preamps and Perkins "British Style" EQ alongside premium analog circuitry deliver professional studio-quality sound and ultra-low noise.

A Complete Multi-track Recording Solution

Record and playback to and from your Mac/PC via USB or recording your main mix directly to an SD card.

Unmatched Control and Flexibility

Every Onyx model is equipped with Studio Command, a full-color display and single knob interface for managing built-in FX and SD card file browsing/recording/playback.

Product Features:

Legendary Analog Sound

Award-winning Onyx mic preamps provide up to 60dB of gain

Premium analog circuitry delivers studio-quality sound and keeps noise to a minimum

Analog/USB channel strips with flexible routing

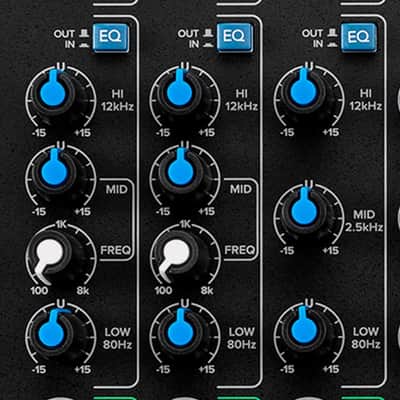

Legendary Perkins "British style" EQ with sweepable midrange offers classic sounds of the 60s and 70s

Robust digital effect engine, including user-customizable reverbs, delays, and more, with a dedicated FX EQ

High-Resolution Recording and Playback Via SD Card or USB

High-resolution 96kHz / 24-bit multi-track recording to Mac/PC via USB

Direct to SD card stereo recording and playback

Channel-assignable 4-track USB return (2 stereo pairs)

Send your Main Mix to USB via a dedicated switch

Studio Command - Powerful, Intuitive Full-Color Display and Single-Knob Interface

Easy navigation of FX parameters, onboard SD recording and playback

Visually browse files on the SD card via the built-in display

Dedicated physical buttons for Previous, Next, Record, and Play/Pause

Store up to 6 user FX presets for easy recall

High-Resolution FX Processor

Built-in effects presets provide that finishing touch out of the box

Ability to store 6 user presets

Utilize built-in effects for live performances, streams, and beyond

Reverb, delay, chorus, and more

Dial in the perfect sound with adjustable parameters and dedicated EQ

Bluetooth Streaming

Pair your Bluetooth enabled device and stream audio directly to a channel on the mixer

Streamed audio can be routed to Aux Sends and the Main Mix

Powerful Mixing Toolkit

3-band Perkins EQ with On/Off hard bypass switch on all channels

Hi-Z switches allows direct connection of guitars, basses, and other instruments

100Hz low-cut filter and 48V phantom power on all mic channels

Stereo 1/8" input and Bluetooth streaming

Stereo line inputs

Aux/Monitor outputs with dedicated per-channel send control

Dedicated Control Room outputs

Headphone output with dedicated level control

Dedicated L-R Assign switches per channel

12-segment stereo meters

Overload indicators on all channels

PFL/AFL channel solo

Footswitch input for FX Mute (footswitch not included)

Rugged Chassis and Professional Design

Backlit Mute and Solo buttons provide a positive tactile feel and clear visual feedback

Sealed rotary encoders resist dust and grime

Built-Like-A-Tank heavy steel chassis

High-visibility, high-contrast controls

Rugged, QuickGrip side cheeks offer convenient mobility and protection

Hit the Ground Running with Powerful Software and Plugins

Pro Tools | First recording software and plugin bundle

Musician Collection for Pro Tools | First, with 23 plugins like BBD Delay, Eleven Lite, 304E EQ, and 304C Compressor

Waveform OEM recording software and plugin bundle

DAW Essentials Bundle for Waveform OEM, with 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter

Professional Software Included:

Pro Tools | First: An industry standard for decades, Pro Tools | First is easy enough for beginners yet sophisticated enough for experienced musicians. Included with this software is the Musician Collection featuring 2 creative plug-ins to enhance your recordings.

Waveform OEM: Waveform OEM is a multi award winning workstation, featuring powerful and creative tools to inspire the modern musician. Included with this software is the DAW Essentials Collection including 6 powerful plug-ins to make your mixes shine.

Product Specifications:

Inputs

Input Channels: 8

Mono Mic/Line: 2

Mic/Stereo Line: 2

Stereo Line: 2

Mic Preamp Type: Onyx Mic Pre w/ up to 60dB of gain

48v Phantom Power: Global, switchable

100Hz Channel Low Cut: Switchable per channel

Channel EQ: Perkins "British style" 3-band EQ with sweepable midrange and On/Off switch

Channel Inserts: Ch. 1-2

Outputs

Aux Sends: 1 + FX send

Bluetooth and Stereo 1/8": CH. 7/8

Main Outputs: L/R TRS and XLR

Main Meters: 12-segment LED

Channel Solo: AFL/PFL

Other

Level Controls: Knobs

Internal FX: Adjustable delay, reverb, chorus, and more

Built-in Display: Full-color display and single-knob interface. Adjust FX parameters, recall presets, manage and play recordings/music

USB Recording: 96 kHz / 24-bit 8x4 on Mac/PC

SD Card Recording: 96 kHz / 24-bit 2x2

Construction

Power Supply: Internal universal 100 - 240 VAC

Weight: 7 lb / 3.2 kg

Dimensions (L x W x H): 11 x 10.5 x 4.5 in (279 x 267 x 115 mm)

Rackmount: No

Optional Accessories: Mixer bag
