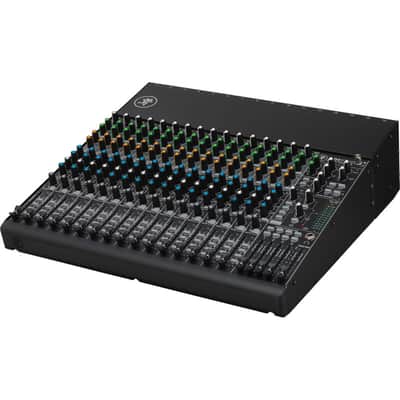

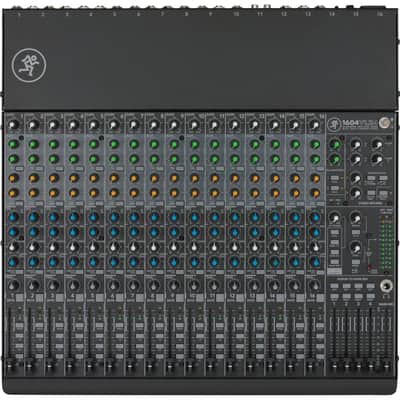

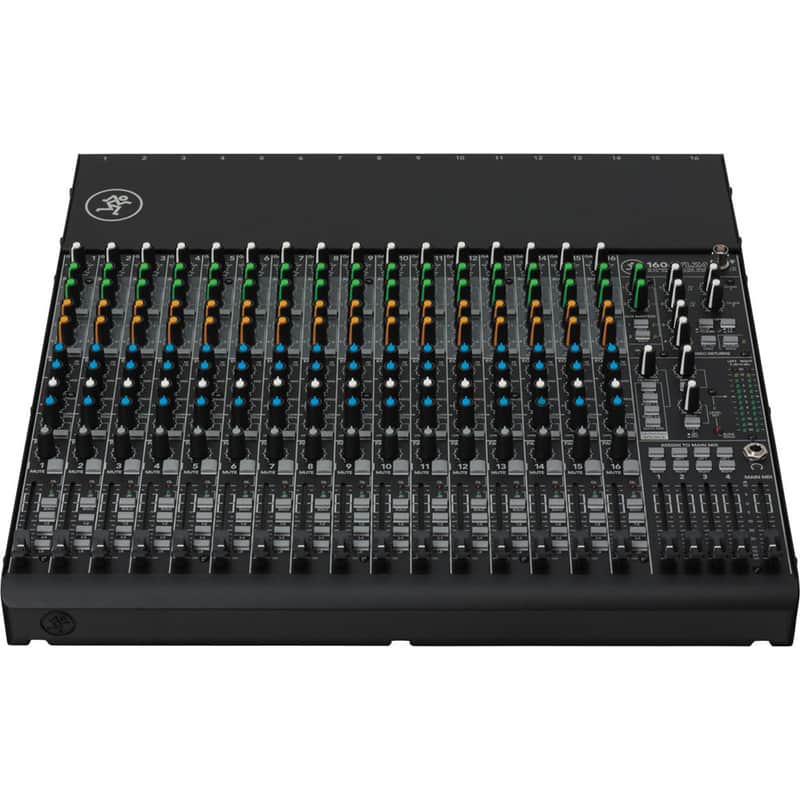

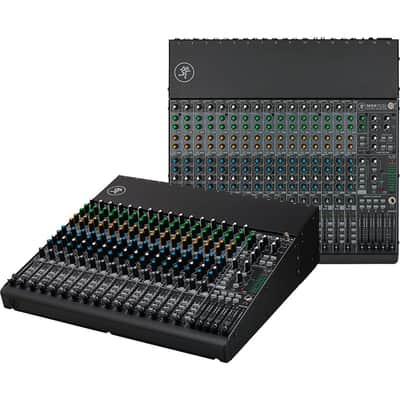

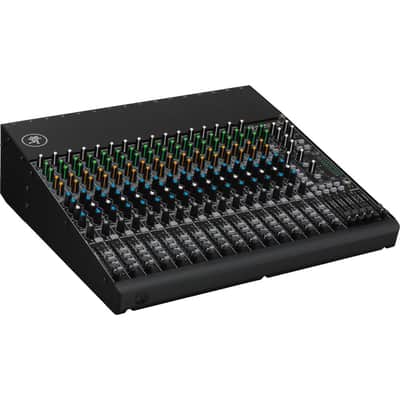

Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer

A legend in compact mixer design, the 1604VLZ4 now combines the proven performance of Onyx preamps with the no-compromise high-headroom/low-noise design that has made the 1604 an industry mainstay.

All 16 channels feature an Onyx mic pre, line input and insert in a compact 4-bus design built for application flexibility and professional performance. Plus, it is truly "Built-Like-A-Tank" with a ridiculously rugged solid-steel chasis that includes high-contrast controls for ultimate tactile control.

Found in countless professional broadcast and post facilities and easily the most proven band-friendly analog mixer ever, the 1604 stands alone in the world of compact mixing.

Product Features:

16-channel mixer featuring our signature high-headroom, low-noise design

16 boutique-quality Onyx mic preamps

Ultra-wide 60 dB gain range

128.5 dB dynamic range

+22 dBu line input handling

Extended frequency response

Distortion under 0.0007% (20 Hz - 50 kHz)

Improved RF rejection, perfect for broadcast applications

Phantom power for condenser mics

16 high-headroom line inputs with +4/-10 operation control

16 balanced inserts perfect for integrating outboard ear

3-band EQ with sweepable midrange

18 dB/oct 75 Hz low-cut filter on mic input channels

Four aux sends, level, pan and solo and overload/mute LEDS on each channel

Four stereo returns, eight direct outs and four group/bus outputs

60 mm long-wearing log-taper faders

Control room / phones multi-input source matrix

High-resolution 12-segment stereo meters

Sealed rotary controls resist dust and grime

"Built-Like-A-Tank" rugged steel chassis with powder-coat finish

High-visibility, high-contrast controls deliver convenient "at-a-glance" visual feedback

Rack-mountable design with three physical configurations via Rotopod accessory (sold separately)

Multi-voltage power supply for worldwide use

Product Specifications:

Main Mix Noise

(20 Hz–20 kHz bandwidth, 1/4" main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right.)

Main Mix Fader at Unity, Channel Faders Down: -88.5 dBu (92 dB Signal to Noise Ratio, ref +4 dBu)

Main Mix Fader at Unity, Channel Faders at Unity: -82.5 dBu

Total Harmonic Distortion (THD)

(1 kHz at 35 dB gain, 20 Hz–20 kHz bandwidth)

Mic In to Insert Send: <0.0007%

Mic In to Main Out: <0.005%

Attenuation / Crosstalk

(1 kHz relative to 0 dBu, 20 Hz–20 kHz bandwidth, line in, 1/4" main out, gain at unity)

Channel Mute Switch Engaged: -84 dBu

Channel Gain Knob Down: -84 dBu

Frequency Response

Mic Input to Main Output (gain at unity):

+0, -1 dB, 20 Hz to 50 kHz

+0, -3 dB, <10 Hz to >100 kHz

Equivalent Input Noise (EIN)

(Mic input to insert send out, max gain)

150 Ω Termination:

-128.5 dBu

20 Hz–20 kHz

Common Mode Rejection Ratio (CMRR)

1 kHz: Better than -70 dB

Maximum Levels

Mic In: +22 dBu

All Other Inputs: +22 dBu

Main Mix TRS Out: +28 dBu

All Other Outputs: +22 dBu

Impedances

Mic In: 2.5 kΩ

Channel Insert Return: 2.5 kΩ

All Other Inputs: 10 kΩ or greater

Tape Out: 1.1 kΩ

All Other Outputs: 120Ω

EQ

High Shelving: ±15 dB at 12 kHz

Mid Peaking: ±15 dB sweep 100 Hz - 8 kHz

Low Shelving: ±15 dB at 80 Hz

Low Cut Filter: 18 dB/octave, -3 dB at 75 Hz

AC Power Requirements

Power Consumption: 50 watts

US, JP: 100 - 120 VAC, 50 - 60 Hz

EU, UK, AU, CN: 200 - 240 VAC, 50 - 60 Hz

Operating Temperature:

0 - 40 degrees C

32 - 104 degrees F

Fuse Rating

100-120V: 1A slo blo, 5 x 20 mm

220-240V: 0.5A slo blo, 5 x 20 mm

Physical Properties (product)

Height: 17.0 in / 433 mm

Depth: 5.1 in / 129 mm

Width: 17.3 in / 440 mm

Weight: 20.0 lb / 9.1 kg

Physical Properties (packaged product)

Height: 9.3 in / 236 mm

Depth: 20.7 in / 526 mm

Width: 21.3 in / 541 mm

Weight: 24.0 lb / 10.9 kg
