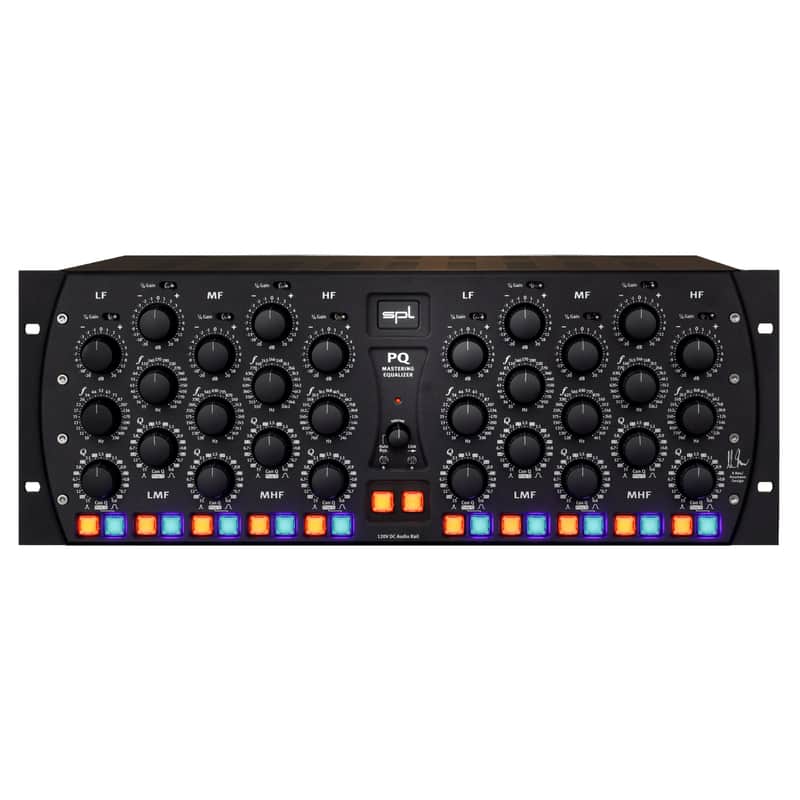

SPL PQ Mastering Equalizer Black, Stereo Mastering equalizer

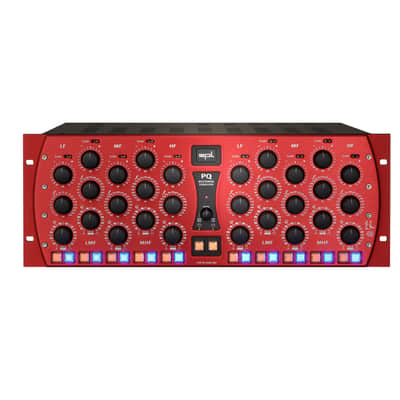

SPL PQ Mastering Equalizer (Red, Black & All Black)

Precision in Sonic Sculpting

Unleash unparalleled control over your audio masterpiece with the SPL PQ Mastering Equalizer. Boasting two sets of five fully parametric filter bands, each switchable between constant Q and proportional Q, the PQ delivers limitless headroom and a distinctive EQ sound, all powered by the renowned 120V technology.

Key Features:

• Parametric Precision: Two sets of five fully parametric filter bands for meticulous control over your audio spectrum.

• Switchable Q Modes: Choose between constant Q for surgical precision or proportional Q for creative and musical processing.

• Limitless Headroom: With 120V technology, enjoy unmatched headroom for transparent and artifact-free equalization.

• Stepped Potentiometers: Easily recall settings with 41 stepped potentiometers for precise and repeatable adjustments.

• Flexible Cut/Boost: Boost or cut each filter band up to 20 dB, with a 1/4 Gain switch for finer adjustments within +/-5 dB.

• Wide Frequency Range: Overlapping frequency distribution allows addressing problematic frequencies with ease.

Filter Bands & Frequencies:

• LF: 10 Hz – 330 Hz
• LMF: 33 Hz – 1 kHz
• MF: 128 Hz – 4.1 kHz
• MHF: 310 Hz – 10.2 kHz
• HF: 760 Hz – 24 kHz

Bandwidth Q: Adjust the bandwidth Q to control the steepness of the bell characteristic, providing versatility in shaping your sound.

On/Off Switch: Toggle individual filter bands on and off with the orange button.

Constant & Proportional Q: Switch between constant Q for precision and proportional Q for creative, musical processing.

Center Section Features:

• Auto Bypass: Enable an automatic system for unbiased evaluations during music program editing.

• Link Function: Process two mono music programs independently or link for simultaneous control. Customize the side-by-side functionality for your workflow.

• Channel On/Off: Easily switch the entire channel on and off with the orange button.

120V Technology: Powered by SPL's groundbreaking 120V technology, the PQ achieves exceptional technical specifications and sonic benefits. Experience a rich detail, unparalleled dynamic range, and a relaxed listening experience.

Specifications:

• Input/Output: XLR (balanced)
• Maximum Input/Output Gain: 32.5 dBu
• Frequency Range: 10 Hz – 100 kHz (-3 dB)
• Dynamic Range: 135 dB
• Operating Voltage: +/- 60 V
• Dimensions: 482 x 177 x 300 mm
• Unit Weight: 15.2 kg

Craft your sonic masterpiece with the SPL PQ Mastering Equalizer – where precision meets limitless possibilities.

The PQ is part of a whole new 120V Mastering Universe which will include, Iron Compressor, PASSEQ Passive EQ, DMC Mastering Console, Phonitor Headphone Amp, MC16 Monitor Controller, Gemini M/S processor, Mercury 786 kHz DAC, and the Hermes Mastering Router.
