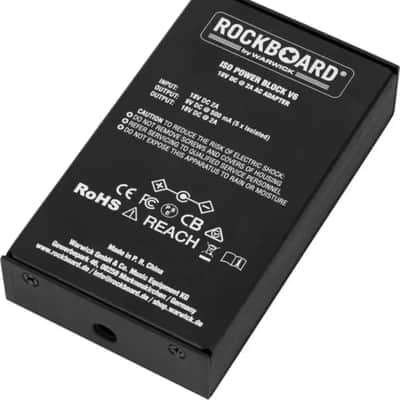

The RockBoard ISO Power Block V6 is a multi-power supply for effects pedals with 5 isolated transformers and highly filtered 9V DC power slots and a single 18V DC link output to connect multiple ISO Power Blocks V6 in series for larger setups. The advanced filtering technology used in the 9V DC power slots prevents high-frequency noise. Built with individual slot short circuit protection, connected effects pedals are protected in case of a short circuit. With a designated LED for each power slot indicating the slot is working correctly, you can quickly identify any problems without losing power to the rest of your rig.

Product Features

• Premium Multi-Power Supply Delivers Clean, Consistent Power to Your Pedalboard
• Transformer-Isolated Outputs and Stabilized Power Slots
• Powers 2 x 9V, 500mA Pedals and 2 x 9V, 250mA Pedals Simultaneously
• 2 Additional Switchable Slots Support 9V, 12V, 15V, and 18V Pedals
• 1 USB-A 5V, 2,000mA Port for Charging Compatible Devices
• Advanced Filtering Technology Eliminates HF Noise
• External Transformer Shields Your rig From LF Interference
• Per-Outlet Short-Circuit Protection Isolates Issues Without Affecting the Rest of Your Setup
• Individual LED Indicators Make it Easy to Spot Shorts or Polarity Mismatches
• Multi-Regional Input Voltage Operation with Supply Voltages From 100V–230V AC, 47Hz–63Hz

Attributes

• Voltage Output: 9V, 12V, 15V, 18V

Technical Specifications

• Dimensions: 1.37" H x 5.11" W x 3.46" D
• Outputs: 4 x 9V DC 500mA, 2 x 9V/12V/15V/18V DC, 2000 mA
• USB: 1 x Type A
• # of Outlets: 6
• Polarity: Center Negative
• Voltage Input: 18V
• Connectivity: 2.1mm barrel
