Gently used CAD GXL1200.
“Achieve low distortion and optimum low end frequency response with the transformerless design of the CAD GXL1200 instrument microphone.
Overview
-

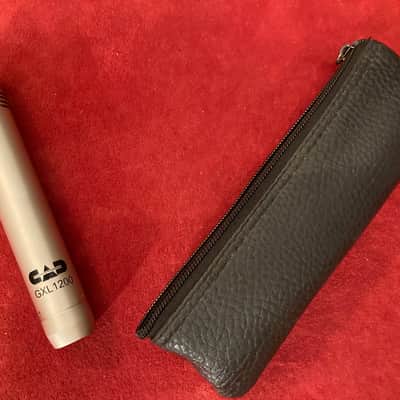

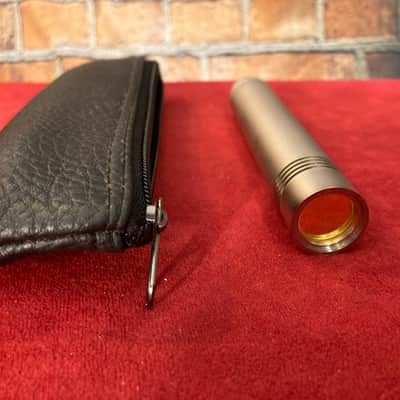

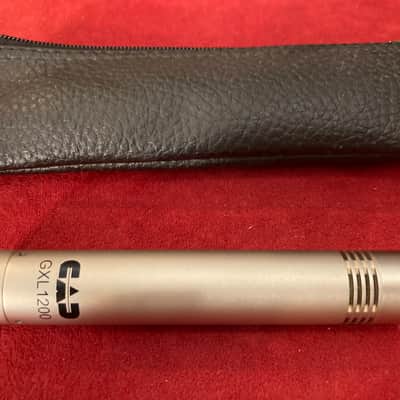

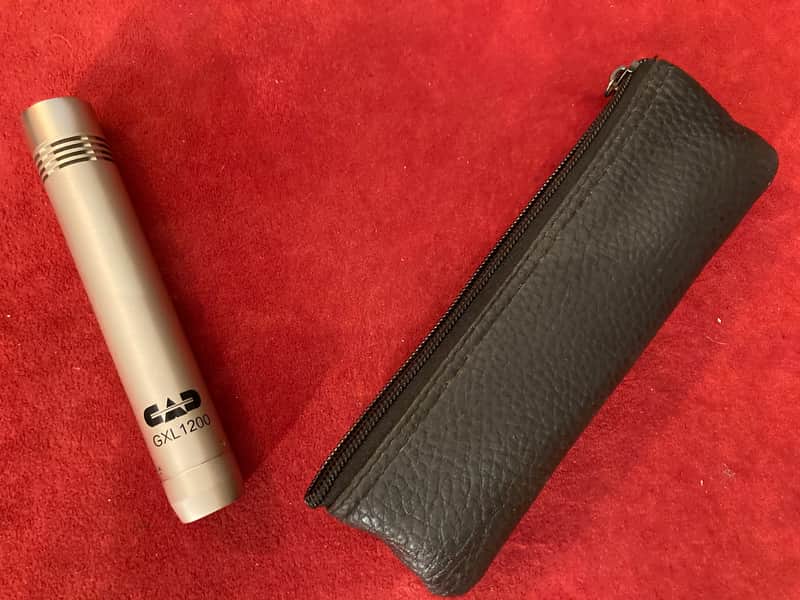

CAD GXL1200 Small Diaghragm Condenser Microphone
Packaged in a small, rugged, all metal housing, the GXL1200 Condenser microphone provides a transparent sound reproduction. The transformerless design of this instrument microphone allows it to have low distortion and optimum low end frequency response. The GXL1200's size, accurate sound reproduction, and high SPL capability, make this a great choice for miking overheads, high hats, cymbals, woodwinds and stringed instruments.
Specs
-
Specifications
Generating Element:
Externally Biased Condenser
Polar Pattern:
Unidirectional (Cardioid)
Frequency Response:
30 Hz - 20 kHz
Sensitivity:
Power Level: -36dB 0dB=1mW per 10 microbars
Open Circuit Voltage: -56dB 0dB=1V per microbar
Impedance:
Low (Less than 200 Ohms)
Equivalent Noise Level:
+14dB (A-weighted)
Power:
P24V or P48V Phantom Power
Connector:
3 pin XLR
Phasing:
Positive pressure on diaphragm generates a positive voltage on pin #2 relative to pin #3
Weight:126 Grams”
“Achieve low distortion and optimum low end frequency response with the transformerless design of the CAD GXL1200 instrument microphone.
Overview
-
CAD GXL1200 Small Diaghragm Condenser Microphone
Packaged in a small, rugged, all metal housing, the GXL1200 Condenser microphone provides a transparent sound reproduction. The transformerless design of this instrument microphone allows it to have low distortion and optimum low end frequency response. The GXL1200's size, accurate sound reproduction, and high SPL capability, make this a great choice for miking overheads, high hats, cymbals, woodwinds and stringed instruments.
Specs
-
Specifications
Generating Element:
Externally Biased Condenser
Polar Pattern:
Unidirectional (Cardioid)
Frequency Response:
30 Hz - 20 kHz
Sensitivity:
Power Level: -36dB 0dB=1mW per 10 microbars
Open Circuit Voltage: -56dB 0dB=1V per microbar
Impedance:
Low (Less than 200 Ohms)
Equivalent Noise Level:
+14dB (A-weighted)
Power:
P24V or P48V Phantom Power
Connector:
3 pin XLR
Phasing:
Positive pressure on diaphragm generates a positive voltage on pin #2 relative to pin #3
Weight:126 Grams”
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Wired/Wireless |
|
| Microphone Type |
|
