INTELLIGEL DESIGNS DIXIE/DIXIE II OSCILLATOR ASSEMBLAGE

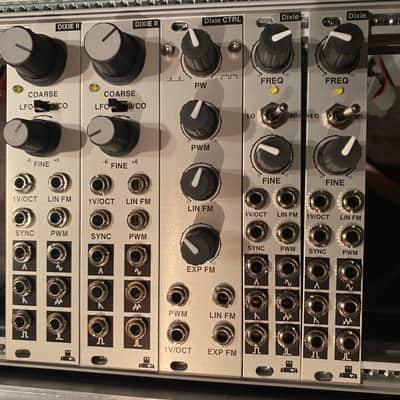

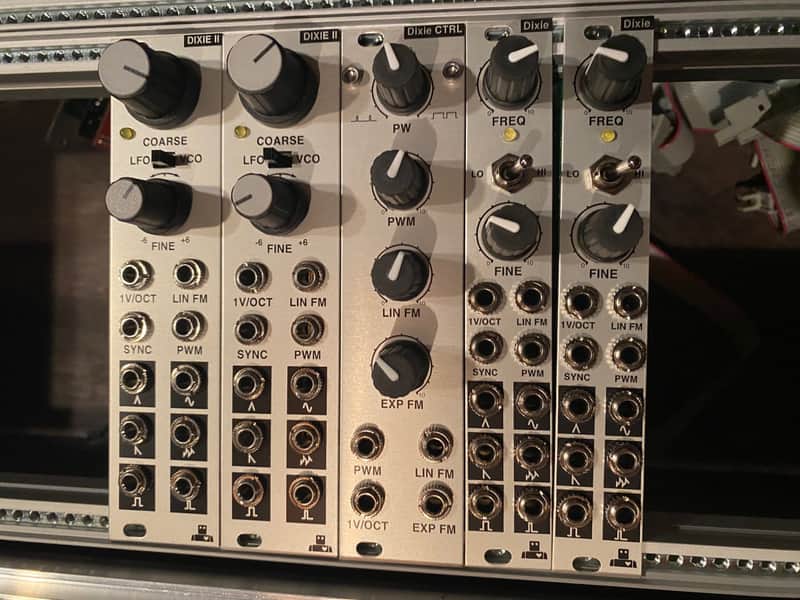

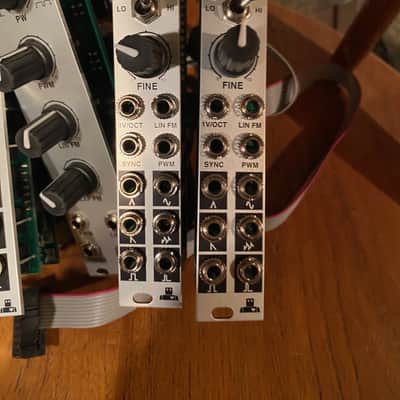

This is a complete four Intelligel Dixie VCO assemblage including two original Dixie’s, two Dixie II’s, and the Dixie CTRL all in mint condition, with all the cables.  The original Dixie’s are triangle core vco/lfo’s that are getting harder to find these days:

hi range (vco): 1hz to 24khz
lo range (lfo): 0.01hz (100 seconds) to 240hz
precise tracking within 0.1% over 8 octaves
6 waveforms, including: triangle, sine, sawtooth, pulse (with pwm), square (50% duty cycle), and a unique "zigzag" waveform.
reversing sync (which can be made into soft sync with an external vca or attenuator)
jumper on pcb to select center or edge triggered pwm
header on pcb for connecting master voice controller (e.g. control of multiple dixies in a polyphonic configuration) using the Dixie CTRL for example
depth 55mm (skiff compatible)
current consumption: 80ma @ +12v and 44ma @ -12v

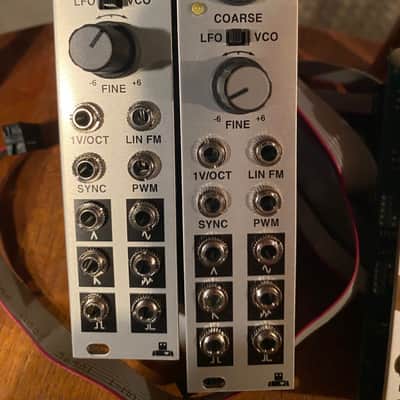

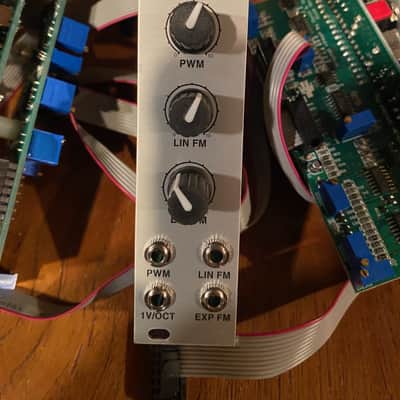

The Dixie II’s have all features of the original Dixie but are a bit wider (6hp instead of 4hp) for better spacing and are skiff friendly.  The Dixie CTRL is a relative rare module that allows for control of PWM, linear FM, and exponential FM of up to four Intellijel Dixies (original module or Dixie II) with one knob or CV control.

This sale is for the 5 Intelligel units and cables only and does not include the case shown in the first photo.  SHIPPING WITHIN CONTINENTAL U.S. ONLY
