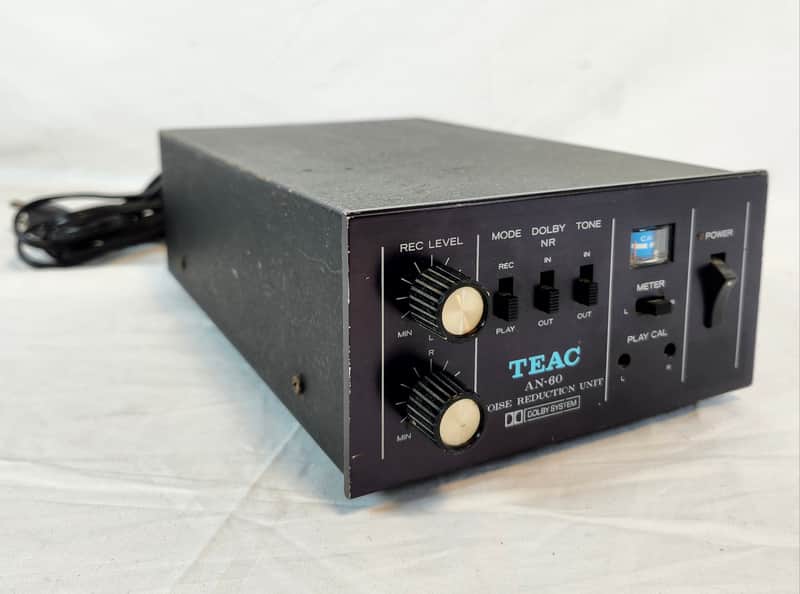

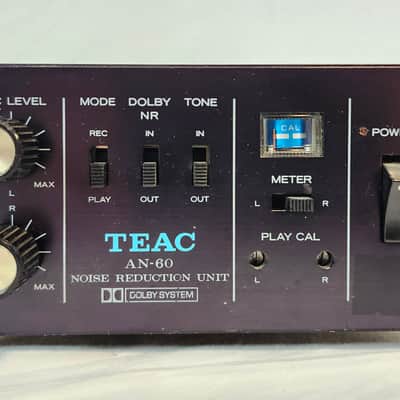

TEAC Vintage AN-60 Noise Reduction Unit, 1970s
This seller has not set a shipping cost for Cyprus. Please contact them to ask about shipping.
Our users rate Reverb

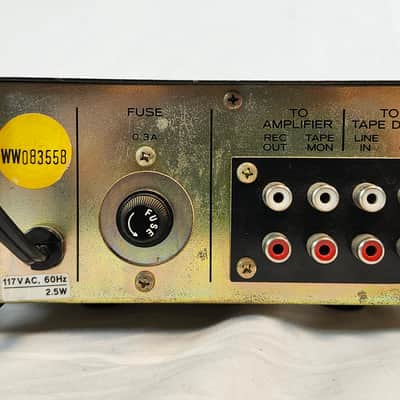

TEAC Vintage AN-60 Noise Reduction Unit, 117V AC, 60Hz, 2.5W, 1970s
Tested in-store, works great with no issues. Some moderate wear and patina from age.
Description:
The AN-60 is a dedicated 2-channel noise‐reduction unit built by TEAC in the early 1970s. Its purpose: to apply the patented Dolby Laboratories noise reduction (Dolby B or similar) to analogue tape recordings (open-reel or cassette) to reduce tape hiss, especially at slow speeds or during dubbing.
In short: it sits between your recorder and playback or between dubbing machines and applies noise reduction processing to improve Signal-to-Noise ratio and reduce audible tape noise.
Specs/Features:
- Channels: 2 (Left & Right)
- Input sensitivity: 100 mV
- Output level: 300 mV
- Noise reduction system: Dolby (B-type)
- S/N improvement: approx. 10 dB (with Dolby engaged)
- Frequency response: 20 Hz to 15 kHz
- Total Harmonic Distortion (THD): 0.5%
- Channel separation: 50 dB
- Dimensions: 86 × 160 × 268 mm (HxWxD)
- Weight: ~2 kg
- Year / origin: ≈ 1972 (based on catalog)
