The Boss XS-100 Poly Shifter is a groundbreaking all-in-one pitch-shifting workstation that redefines creative expression for guitarists and bassists. Featuring cutting-edge polyphonic processing, this pedal delivers smooth, natural pitch changes with incredible tracking accuracy and virtually no latency. Whether you’re diving four octaves down, soaring four octaves up, or creating complex harmonies, the XS-100 offers unmatched precision and musicality.

Built with performance in mind, the XS-100 includes a large, responsive expression pedal for real-time pitch control, allowing for fluid sweeps, bends, and glides. It also features 30 onboard memory slots, MIDI and USB connectivity for external control, and a high-resolution LCD display for intuitive operation. With 24-bit AD/DA conversion and BOSS’s advanced Adaptive Focus (AF) algorithm, every sound is delivered with pristine clarity and dynamic depth.

From instant alternate tunings and capo effects to layered octaves and experimental textures, the XS-100 Poly Shifter gives players the freedom to completely reshape their sound. Housed in the classic rugged BOSS chassis, it’s ready for the stage, studio, or any creative environment.

Features
• Polyphonic pitch-shifting across an eight-octave range (±4 octaves)
• Built-in expression pedal for seamless real-time control
• 30 user memories with full MIDI and USB connectivity
• Clean analog dry-through maintains pure tone
• 24-bit AD/DA, 32-bit internal processing, 48kHz sampling
• Drop-tuning, harmony, and pitch modulation capabilities
• Durable BOSS construction for professional reliability

Specifications

  • Maximum Output Level: OUTPUT: +7 dBu
  • Maximum Input Level: INPUT: +7 dBu
  • Memory: 30
  • DA Conversion: 32 bits
  • AD Conversion: 24 bits + AF method AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
  • Sampling Frequency: 48 kHz
  • Weight (including battery): 1.7kg 3 lbs 12 oz
  • Height: 72 mm 2-7/8 inches
  • Depth: 230 mm 9-1/16 inches
  • Width: 147 mm 5-13/16 inches
  • Options (sold separately): Footswitch: FS-5U Dual footswitch: FS-6, FS-7 Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5 MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
  • Accessories: AC adaptor Leaflet (“USING THE UNIT SAFELY”, “IMPORTANT NOTES” and “Information”) Rubber foot x 4
  • Current Draw: 160 mA
  • Power Supply: AC adaptor

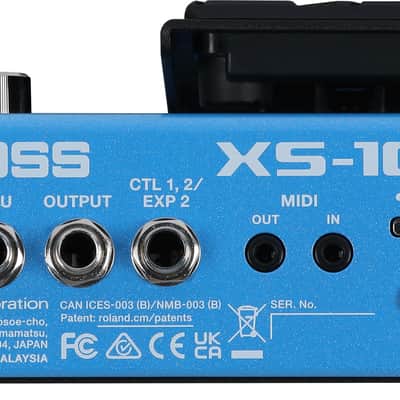

  • Connectors: INPUT jack: 1/4-inch phone type THRU jack: 1/4-inch phone type OUTPUT jacks: 1/4-inch phone type CTL1, 2/EXP2 jack: 1/4-inch TRS phone type USB port: USB Type-C® MIDI (IN, OUT) connectors: Stereo miniature phone type DC IN jack
  • Controls: EFFECT switch TUNE DOWN switch SELECT knob EFFECT button MEMORY button EXP1 pedal
  • Bypass: Buffered bypass
  • Recommended Load Impedance: OUTPUT: 10 kΩ or greater
  • Output Impedance: OUTPUT: 1 kΩ
  • Nominal Output Level: OUTPUT: -10 dBu
  • Input Impedance: INPUT: 2.2 MΩ
  • Nominal Input Level: INPUT: -10 dBu
  • ConditionBrand New (New)
    Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
    Brand
    Model
    • XS-100 Poly Shifter
    Finish
    • Blue & Black
    Categories
    Color Family
    • Blue
    Pedal Format
    • Standard
