JAH Professional Mobile Line Array PA System / Complete / Great Condition / Church-Owned

This is a complete, high-performance JAH Audio mobile PA system designed for crystal-clear, full-range sound reproduction across a wide variety of applications; from worship centers and portable church setups to live music, outdoor festivals, or touring productions.

The system includes:  12 JLA-208 line array cabinets, 2 JLS-218 dual 18" subwoofers, 5 high-powered DSP amplifiers, all necessary NL4 and NL8 cabling, road cases, and full fly hardware. Everything has been maintained, professionally operated, and stored in a clean, climate-controlled church environment.

System Includes:

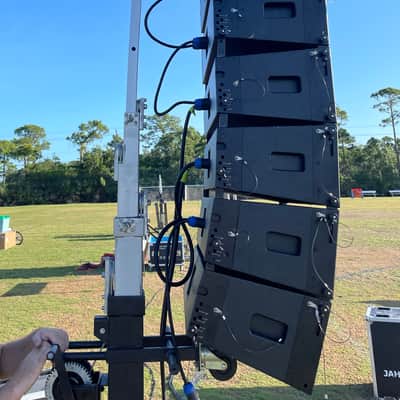

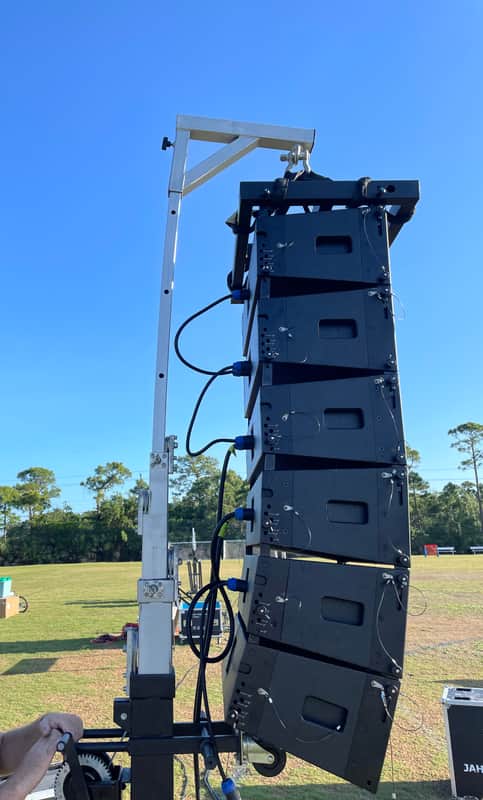

* (12) JAH JLA-208 3-Way Line Array Cabinets (top boxes)
    * Configurable for flown or ground-stacked operation
    * Versatile enough to be used as main hangs or front fills

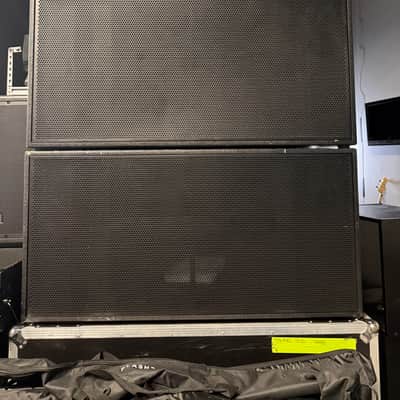

* (2) JAH JLS-218 Dual 18" Subwoofers

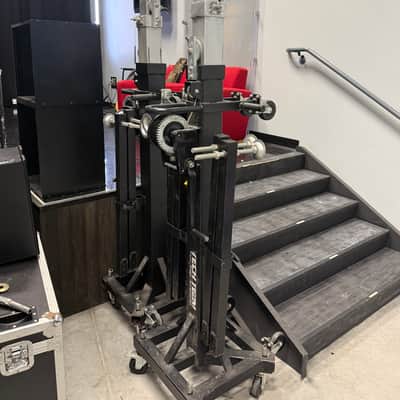

* (2) Speaker crank stands

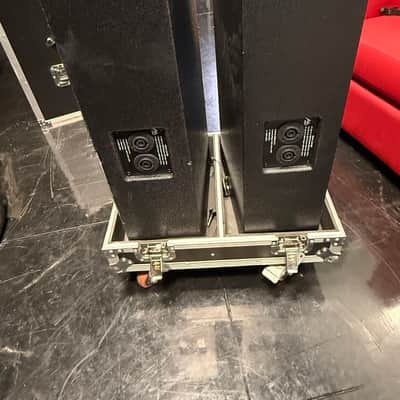

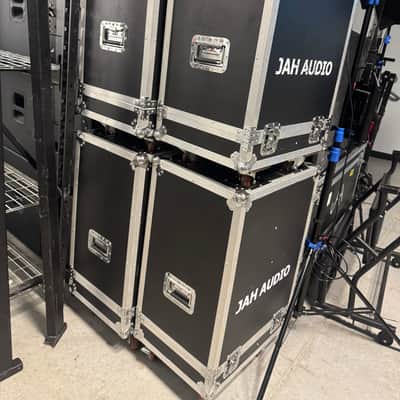

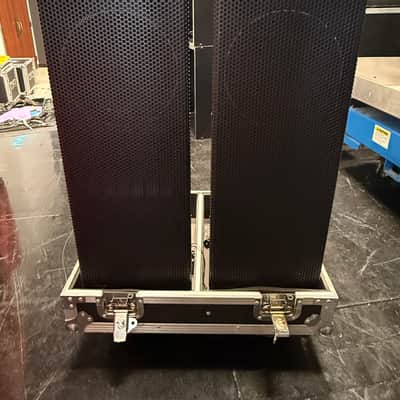

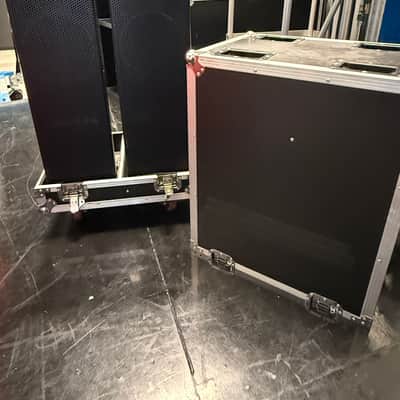

* (6) Custom-built road cases for line array tops (2 per case)
* (2) Heavy-duty subwoofer road cases
* All NL8 & NL4 speaker cables and jumpers (included and matched to system)
* Full fly hardware kit, including:
    * Fly frames
    * Spansets
    * Shackles
    * Safety pins and rigging components

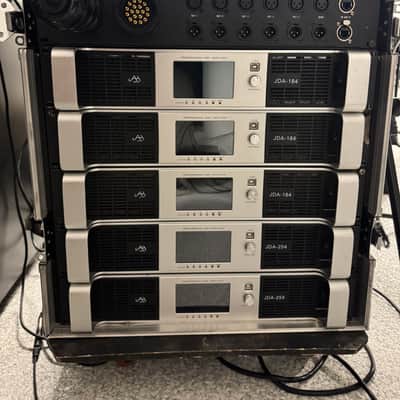

* Amplification and processing package (included):
    * (3) × JAH JDA-184 DSP Amplifiers (for array tops and high-frequency channels)
    * (2) × JAH JDA-254 DSP Amplifiers (for subs and low-frequency reinforcement)

Speaker Specifications:

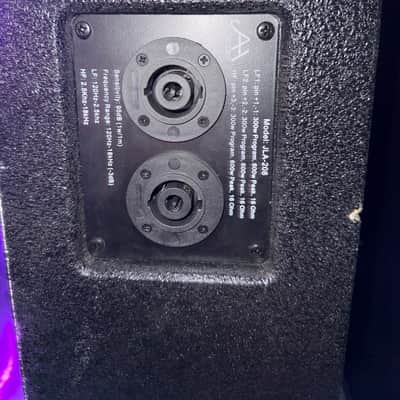

JAH JLA-208 Line Array Tops:
* Type: 3-Way passive line array enclosure
* Frequency Range: 120Hz – 18kHz (±3dB)
* Sensitivity: 95dB (1W/1m)
* Power Handling:
    * LF1: 300W program / 600W peak @ 16Ω
    * LF2: 300W program / 600W peak @ 16Ω
    * HF: 300W program / 600W peak @ 16Ω
* Recommended Crossover: 2.5kHz
* Connectors: Dual NL4
* Construction: Rugged painted cabinet with precision-fit grille and side hardware
* Applications: Ideal for flown main arrays, side hangs, or front-fill reinforcement

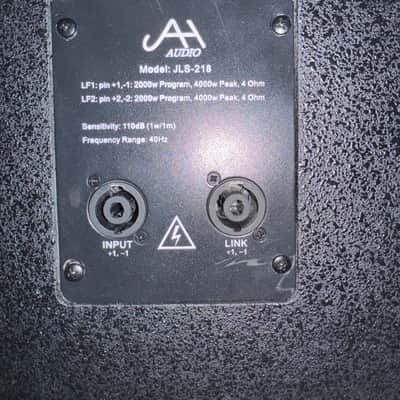

JAH JLS-218 Dual 18" Subwoofers:
* Configuration: Dual 18" drivers in vented cabinet
* Frequency Range: 40Hz
* Sensitivity: 110dB (1W/1m)
* Power Handling:
    * LF1: 2000W program / 4000W peak @ 4Ω
    * LF2: 2000W program / 4000W peak @ 4Ω
* Connectors: NL4 (Input / Link)
* Enclosure: Durable textured finish with recessed handles and integrated hardware
* Performance: Powerful, clean low end suitable for live music, worship, or outdoor events

Amplifier Specifications:
JAH JDA-184 DSP Amplifier (x3):
* Power Output: 4×1800W @ 4Ω
* Class: D
* Signal-to-Noise Ratio: >101dB
* Channel Separation (Crosstalk @1kHz): >70dB
* Damping Factor: >1000 (100Hz)
* Conversion Rate: >20V/μs
* Input Sensitivity: 1.0V
* Input Impedance: 10kΩ / 20kΩ
* Input Connectors: 3-pin XLR (electronically balanced)
* Output Connectors: NL2
* Amplifier Protection: Short circuit, open circuit, direct voltage, high temperature, radio-frequency, and ultra-low frequency
* Rack Space: 2U
* Power Consumption: 1200W @ 4Ω
* Size: 483mm × 400mm × 88mm
* Weight: 30lbs

JAH JDA-254 DSP Amplifier (x2):
* Power Output: 4×2500W @ 4Ω
* Class: D
* Signal-to-Noise Ratio: >105dB
* Channel Separation (Crosstalk @1kHz): >70dB
* Damping Factor: >1000 (100Hz)
* Conversion Rate: >20V/μs
* Input Sensitivity: 1.0V
* Input Impedance: 10kΩ / 20kΩ
* Input Connectors: 3-pin XLR (electronically balanced)
* Output Connectors: NL2
* Amplifier Protection: Short circuit, open circuit, direct voltage, high temperature, radio-frequency, and ultra-low frequency
* Rack Space: 2U
* Power Consumption: 1600W @ 4Ω
* Size: 483mm × 400mm × 88mm
* Weight: 30lbs

All road cases are in solid condition and have protected the gear during storage and limited transport. The fly hardware has been stored dry, and cables are all properly terminated, and tested.

Sound Performance:
Paired with the included DSP amplifiers, this system provides the flexibility to fine-tune EQ, crossover, and delay settings for any venue size or application.

It’s an amazing-sounding system that you have to hear to believe; ideal for houses of worship, schools, event production companies, or portable church setups that demand pro-level sound.
