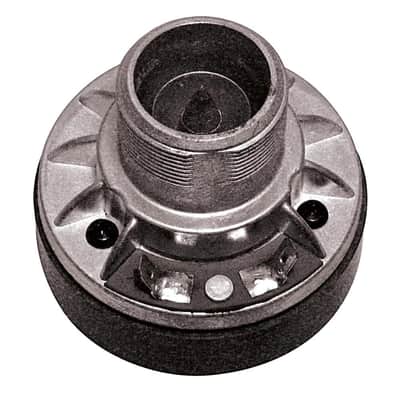

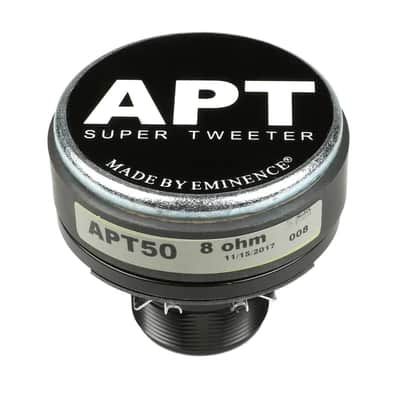

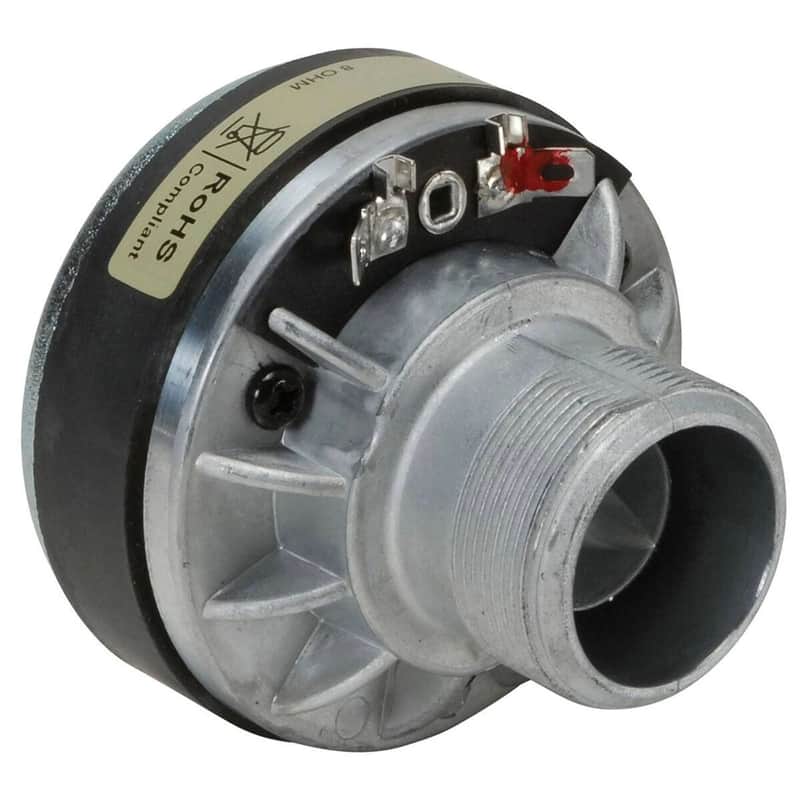

Eminence APT:50 Compression driver 1-inch Frequency 3.5kHz-20kHz, 35Watts 8Ω

Specification Throat Size
  • 1", 25.4mm
Nominal Impedance
  • 8 Ohms
Minimum Impedance
  • 7.4 ohm @ 6.1 kHz
Power Rating
  • 35 W (AES)
Resonance
  • 2.1kHz
Usable Frequency Range
  • 3500Hz-20kHz
Recommended Crossover
  • 3.5 kHz / 12 dBkHz
Sensitivity
  • 104.7
Magnet Material
  • Ferrite
Magnet Weight
  • 8oz, 0.23kg
Voice Coil Diameter
  • 1" / 25.4mm
Voice Coil Former
  • Kapton
Diaphragm Material
  • Phenolic
DC Resistance (Re)
  • 6.3
Mounting Information Overall Diameter
  • 2.75", 69.8mm
Driver Volume Displaced
  • 0.004 cu.ft., 0.12 liters
Depth
  • 2.53", 64.3mm
Weight
  • 1.7 lbs, 0.8 kg
Mounting Thread
  • Use Apt Horn or Adaptor

Promoted similar listings













ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • Eminence APT:50
