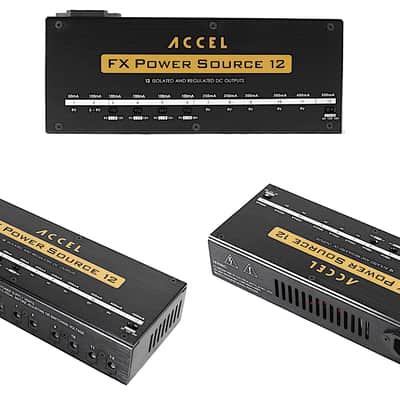

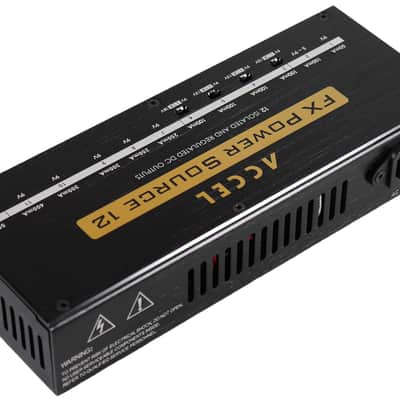

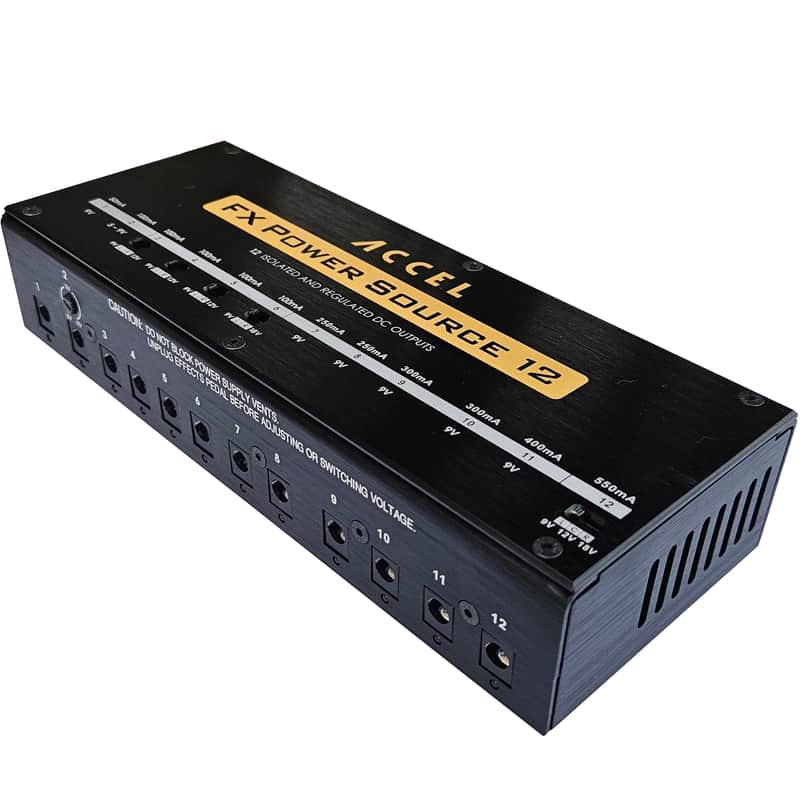

Accel FX Power Source 12 - Isolated Pedal Power Supply for Guitar & Bass Pedal Boards

Looking for a quiet, isolated pedal power supply that can handle all your pedals — from analog overdrives to high-current digital effects? The Accel FX Power Source 12 is built for professional players who demand clean power, flexible voltage options, and reliable performance on stage or in the studio.

🎸 Power Supply for Guitar & Bass Pedals

• 12 truly isolated DC outputs – no shared grounds, no noise bleed
• Supports 5V, 9V, 12V, and 18V pedals
• Perfect for pedalboards loaded with Boss®, Strymon®, Line 6®, Eventide®, and similar effects
• Each output is regulated, filtered, and protected from voltage spikes
• Designed for both analog pedals and DSP digital pedals that require higher current

⚡ Multi-Output Power for Every Pedal Type

• Output 1: 9V @ 50mA
• Output 2: Adjustable 5 @ 180mA – 9V @ 100mA
• Outputs 3–5: Selectable 9V @ 100mA or 12V @ 60mA
• Output 6: Selectable 9V @ 100mA or 18V @ 50mA
• Outputs 7–8: 9V @ 250mA
• Outputs 9–10: 9V @ 300mA
• Output 11: 9V @ 400mA
• Output 12: 9V @ 550mA / 12V @ 400mA / 18V @ 250mA

Ideal for powering multi-effects pedals, loop switchers, wireless units, and any pedalboard that demands high-current isolated power.

🔋 True Isolation Design

Unlike cheaper “isolated” units that only split grounds, the FX Power Source 12 uses two independent high-efficiency transformers — one for outputs 1–8, another for 9–12 — providing true electrical isolation across every output.
The result: no hum, no crosstalk, ultra-quiet operation even with sensitive digital or delay pedals.

🧱 Built to Last – Pedalboard Ready

• Heavy-duty anodized aluminum housing dissipates heat quickly
• Mounts directly under Accel’s XTA21, XTA15, and XTA25 pedalboards
• Also fits most other pedalboards with the included 3M Dual Lock
• No drilling required – simple and secure mounting

Dimensions: 8.66" (219mm) W × 3.39" (86mm) D × 1.77" (45mm) H
Weight: 1 lb 9 oz
AC Input: 100–120V

📦 Included Accessories

• Accel FX Power Source 12 Power Supply
• AC input cord
• (2) 7.9" Line 6 converter cables
• (2) 19.7" output cables
• (10) 27.5" output cables
• (2) strips of 3M Dual Lock
• (3) M4 x 8mm mounting screws
• User manual
